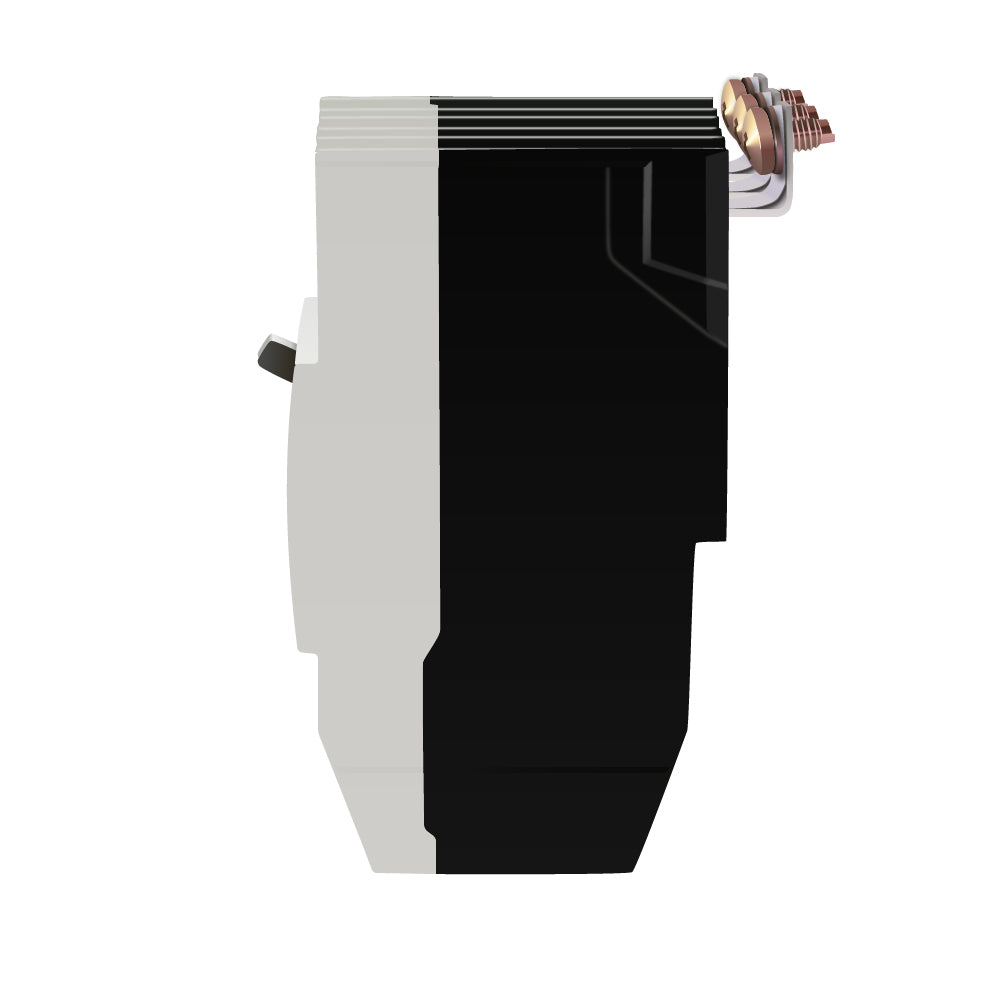

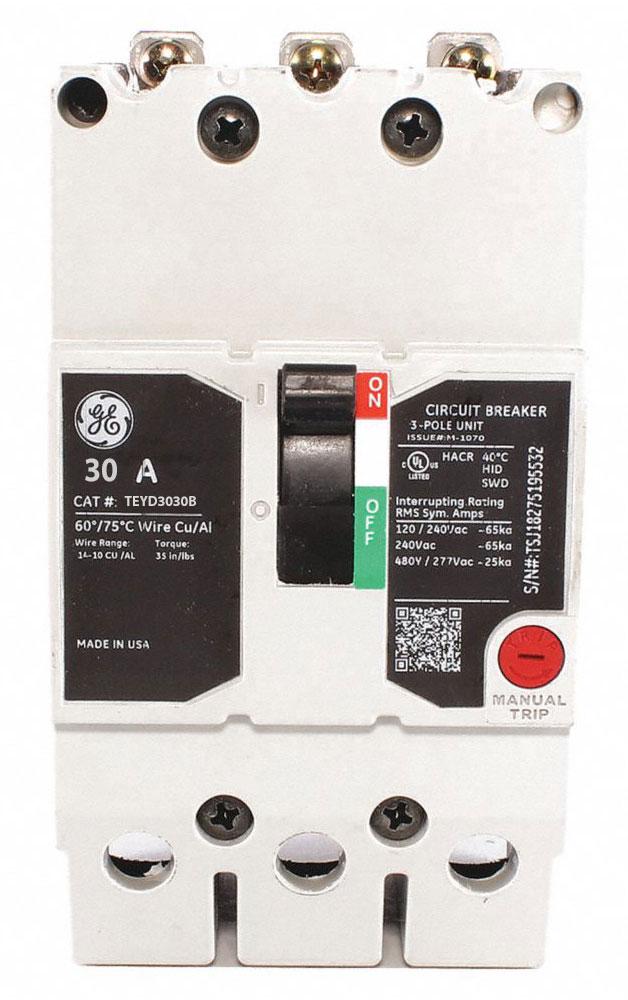

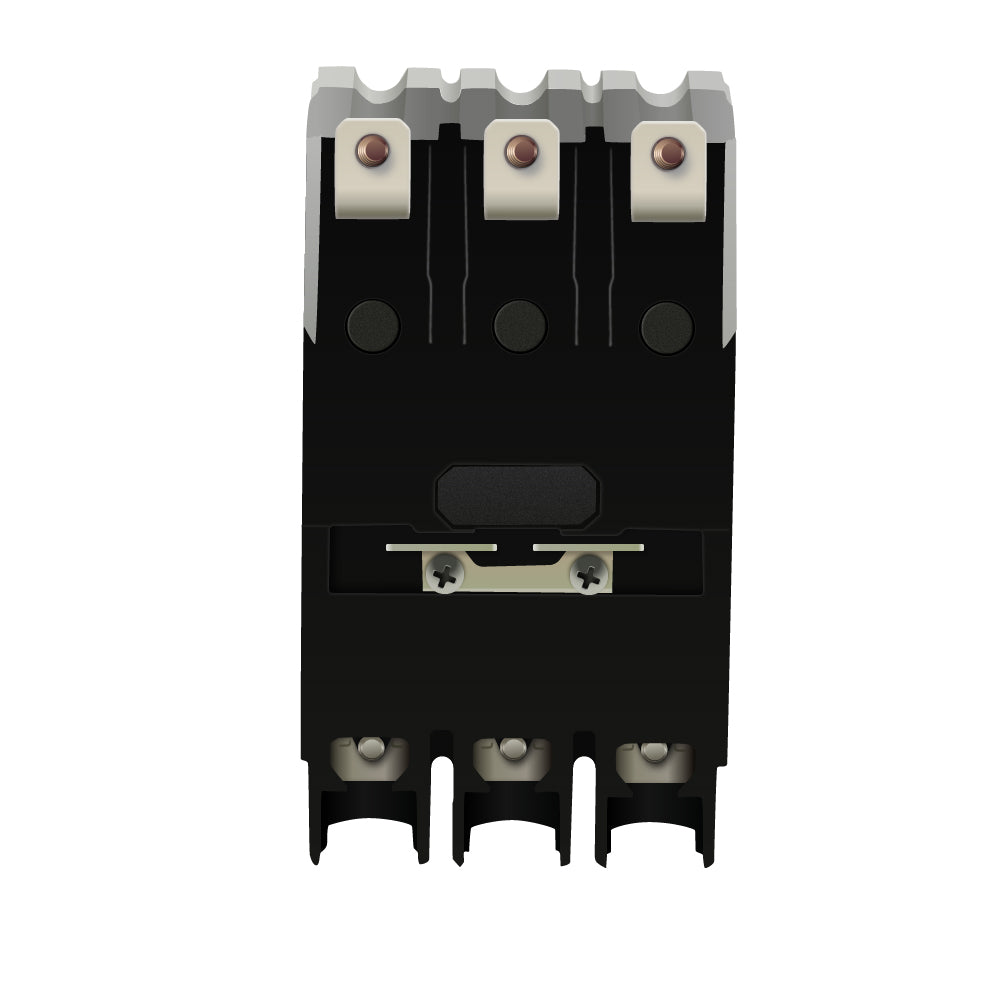

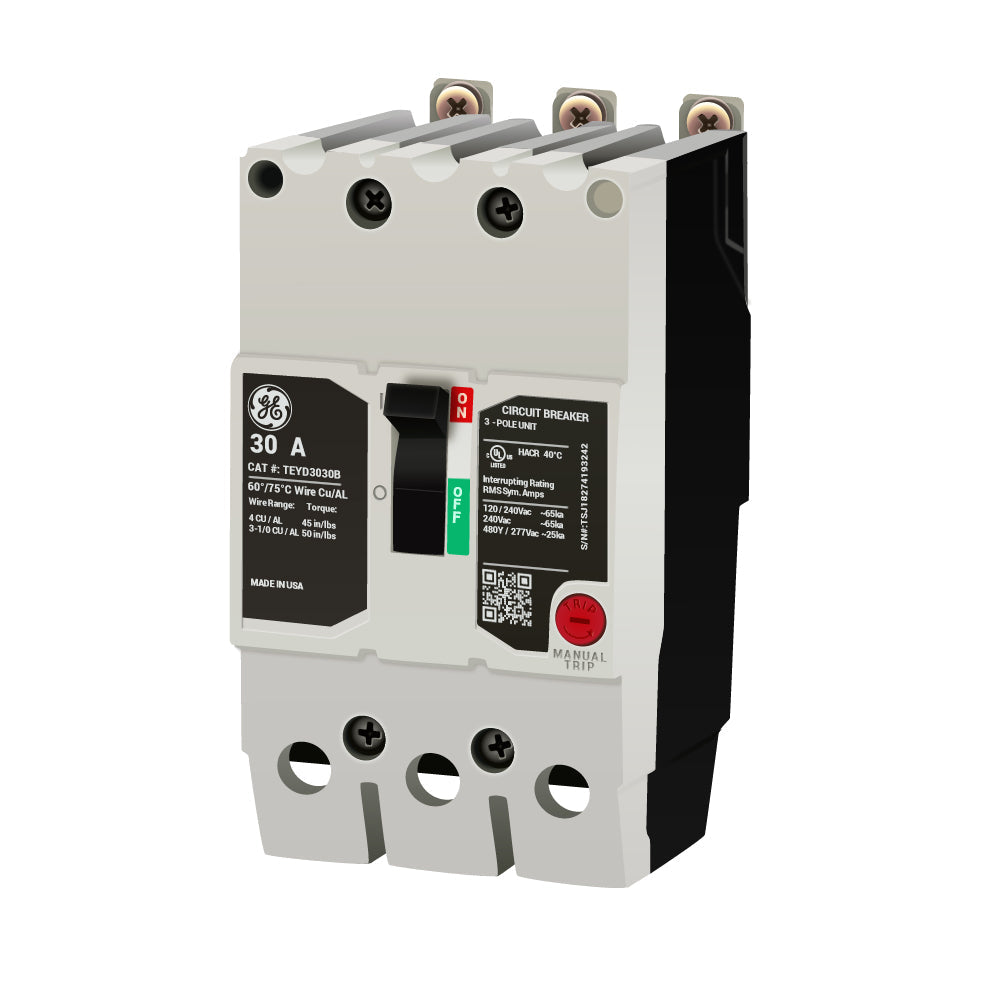

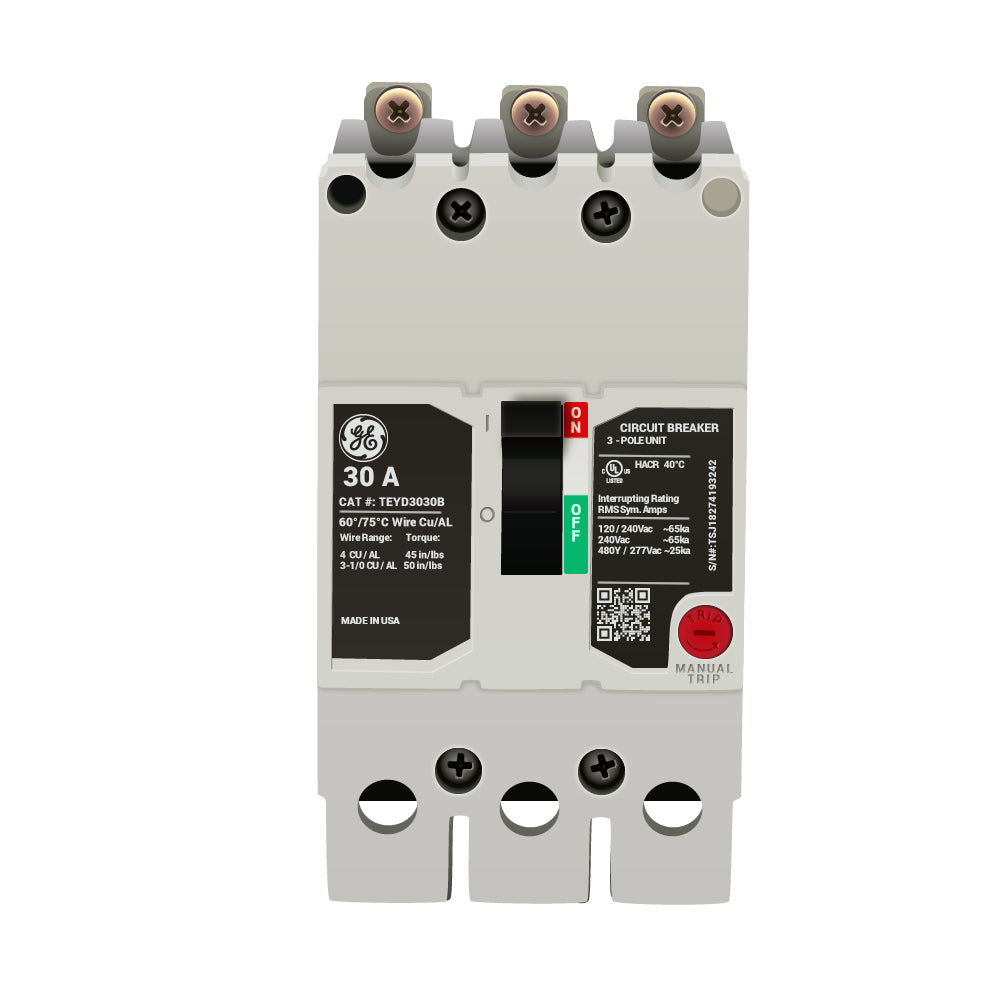

General Electric TEYD3030B 30A 3-Pole Molded Case Circuit Breaker 480/277VAC Bolt-On
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TEYD3030B
Description
The General Electric TEYD3030B is a three-pole molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial electrical systems. Rated at 30 amps and suitable for 480/277 VAC applications, it ensures safe interruption of overloads and short circuits. This breaker is engineered for secure bolt-on installation in panelboards requiring compact and dependable protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Electrical Products |
| Part Number | TEYD3030B |
| Subcategory | Circuit Breakers |
| Series | TEYD |
| Frame Type | TEY (125A Frame) |
| Type | Molded Case Circuit Breaker |
| Amperage | 30 A |
| Voltage Rating | 480/277 VAC |
| Poles | 3 |
| Interrupt Rating | 25kA @ 480V / 65kA @ 240V |
| Trip Unit | Thermal-Magnetic |
| Mounting Type | Bolt-On |
| Terminal Type | Load Lugs |
| Phase | Three Phase |
| Standards | UL Listed |
| Weight | 2 lbs |
Information About TEYD3030B
The TEYD3030B is part of General Electric’s TEYD series, built on the TEY frame platform for use in lighting and distribution panelboards. It features a thermal-magnetic trip mechanism that combines long-time overload protection with instantaneous fault response. The breaker is constructed with a molded insulated case and incorporates a quick-make/quick-break switching system for efficient circuit interruption. Designed for compatibility with GE panelboards, it is commonly deployed in three-phase systems across commercial and industrial facilities.
Key Features:
- 30 Amp Rating: Designed for low to medium-load circuit protection in distribution systems.
- 3-Pole Configuration: Provides protection for three-phase electrical circuits.
- Thermal-Magnetic Trip: Combines overload and instantaneous short-circuit protection.
- Bolt-On Mounting: Ensures secure installation in compatible GE panelboards.
- High Interrupt Capacity: Rated up to 25kA at 480 VAC for fault protection.
- Compact TEY Frame: Space-efficient design with one-inch per pole footprint.
- Quick-Make/Break Mechanism: Enables rapid and reliable circuit interruption.
- Visible Trip Indicator: Allows easy status identification and troubleshooting.
The TEYD3030B delivers the reliability and precision required for safe circuit protection in commercial and industrial power distribution systems.
