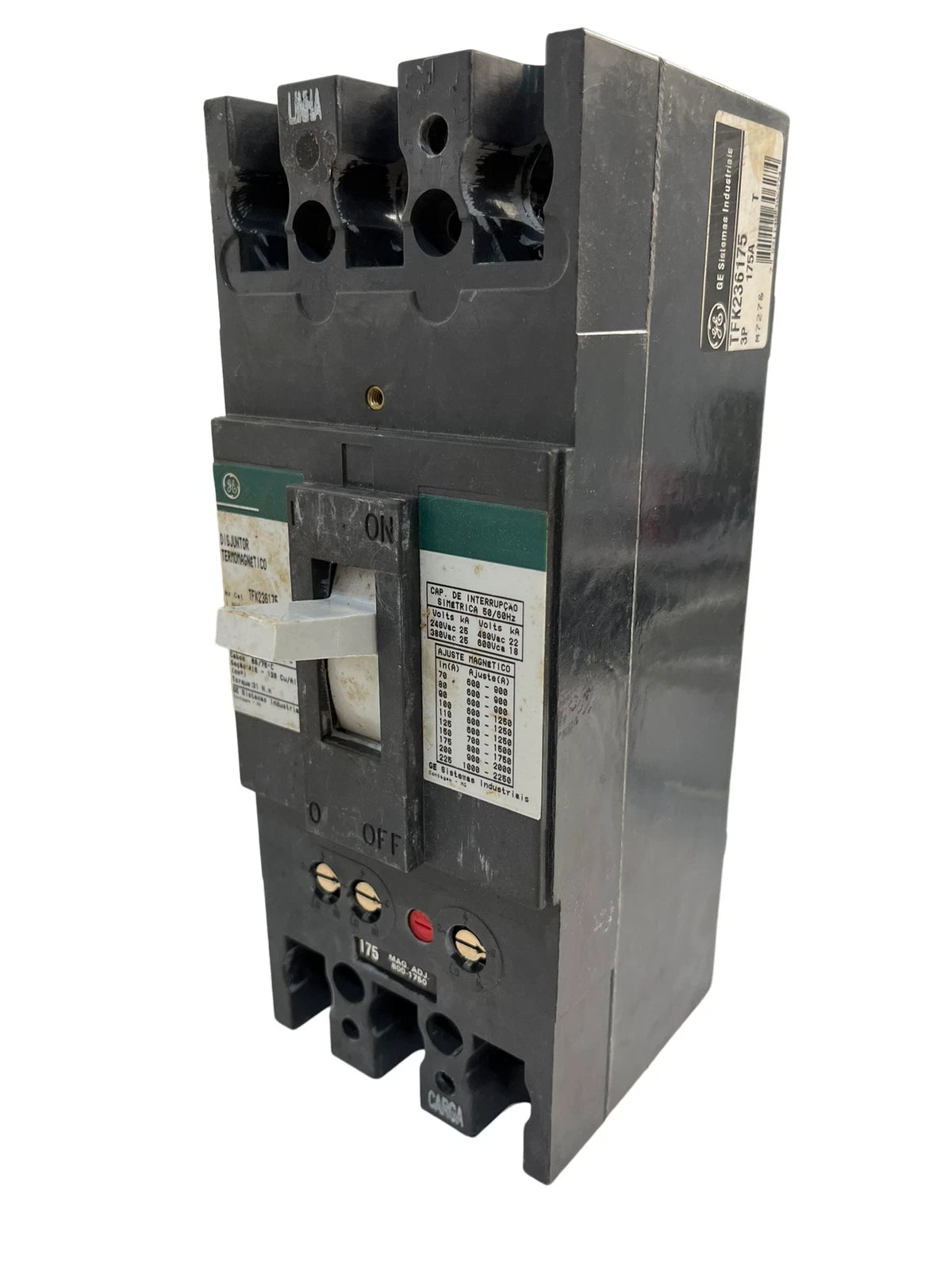

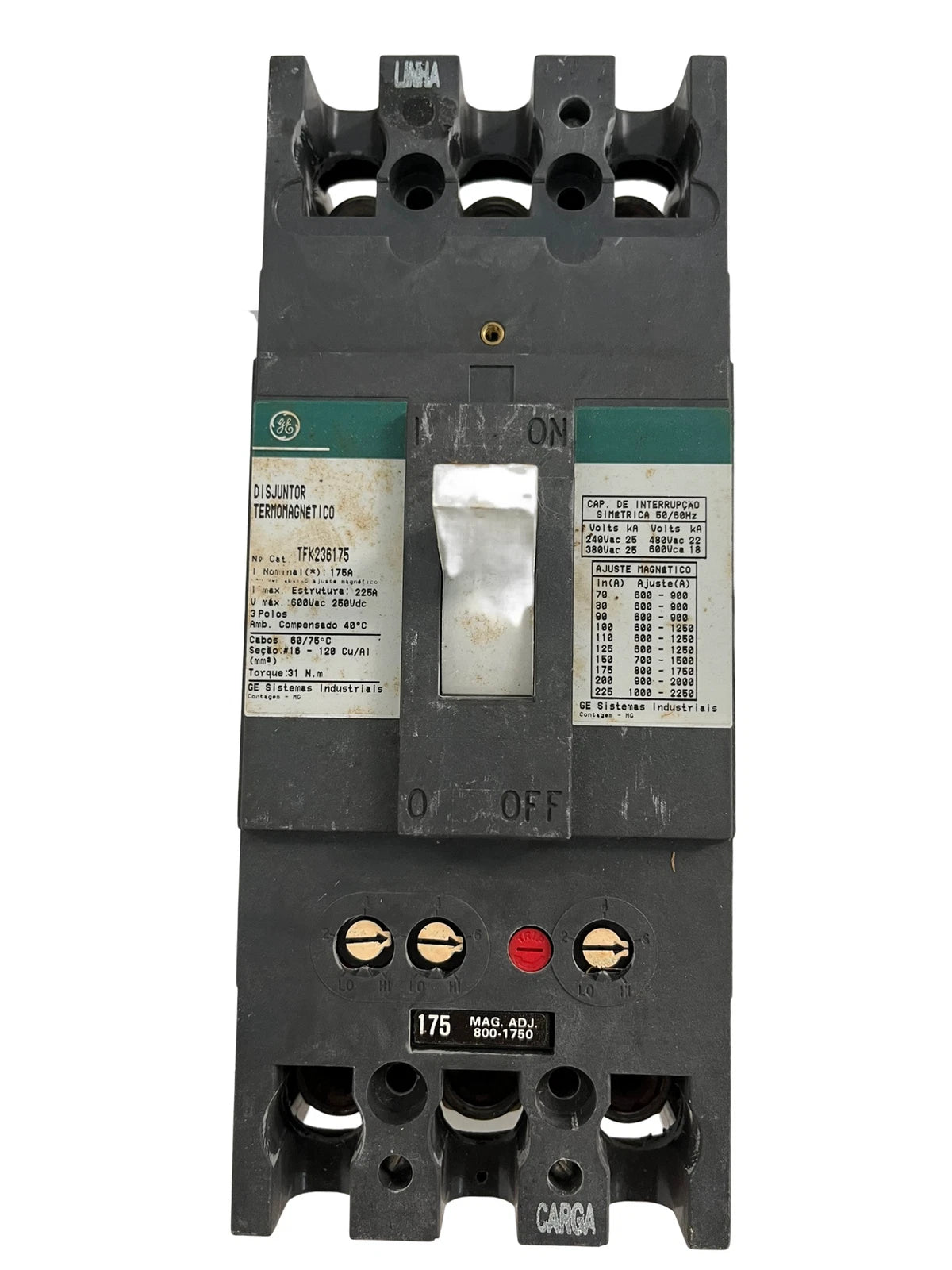

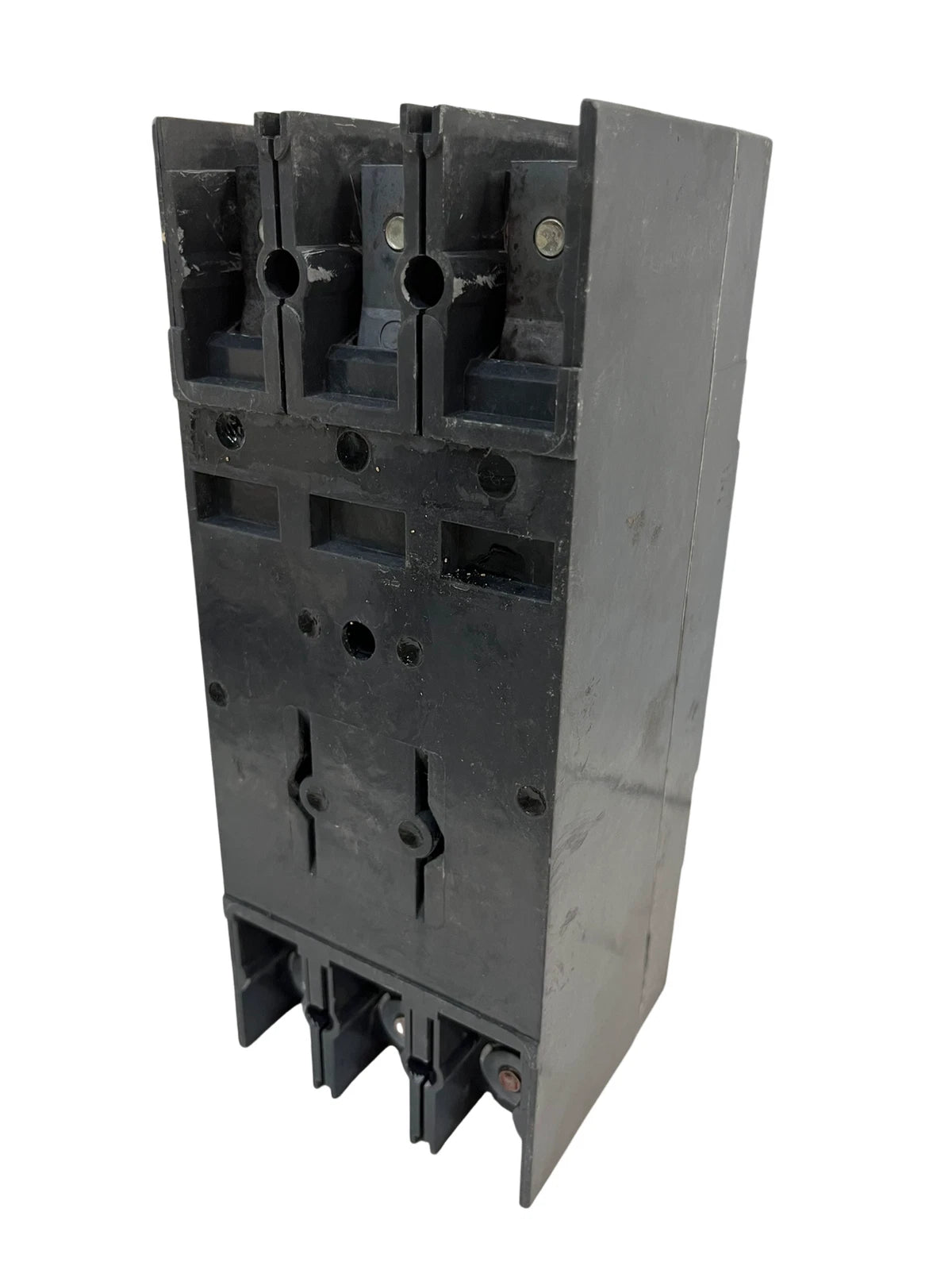

General Electric TFK236175 175A 3-Pole 600V Molded Case Circuit Breaker
- Regular price
- $677.00
- Sale price
- $677.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TFK236175
Description
The General Electric TFK236175 is a 175 Amp, 3-pole molded case circuit breaker designed for three-phase electrical systems. It provides reliable protection for circuits up to 600 VAC or 250 VDC. This breaker is compatible with GE A-Series panelboards, switchboards, motor control centers, and enclosures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric / ABB |
| Category | Circuit Breaker |
| Part Number | TFK236175 |
| Subcategory | Circuit Breaker |
| Series | TFK |
| Poles | 3 |
| Current Rating | 175 Amp |
| Voltage Rating | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | Three-Phase |
| Trip Type | Thermal-Magnetic |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Mounting Type | Bolt-On |
| Terminal Type | Lugs |
| Wire Range | 4 AWG – 300 kcmil |
| Interrupting Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Optional Features | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approvals | CSA, HACR, UL |
| Operating Temperature | 40°C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
| Weight | 10 lbs |
Information About TFK236175
The TFK236175 is part of GE’s TFK series of molded case circuit breakers, engineered for industrial and commercial applications. It features bolt-on mounting with lug terminals for secure installation. The breaker uses a thermal-magnetic trip mechanism with long-time and instantaneous functionality and supports wire sizes from 4 AWG to 300 kcmil. Optional accessories include shunt trip, auxiliary switch, undervoltage release, and alarm switch for flexible installation.
Key Features:
- Series: TFK Series molded case breaker for industrial and commercial use.
- Poles: 3-pole configuration for three-phase systems.
- Current Rating: 175 Amp continuous load capacity.
- Voltage Rating: 240VAC, 480VAC, 600VAC, 250VDC compatible.
- Mounting Style: Bolt-on for secure panel installation.
- Trip Mechanism: Thermal-magnetic for overload and short-circuit protection.
- Trip Function: Long-time and instantaneous (LI) with adjustable magnetic trip.
- Wire Range: 4 AWG – 300 kcmil.
- Optional Features: Shunt trip, auxiliary switch, undervoltage release, alarm switch.
The TFK236175 delivers the reliability and precision required for high-current industrial and commercial circuit protection.
