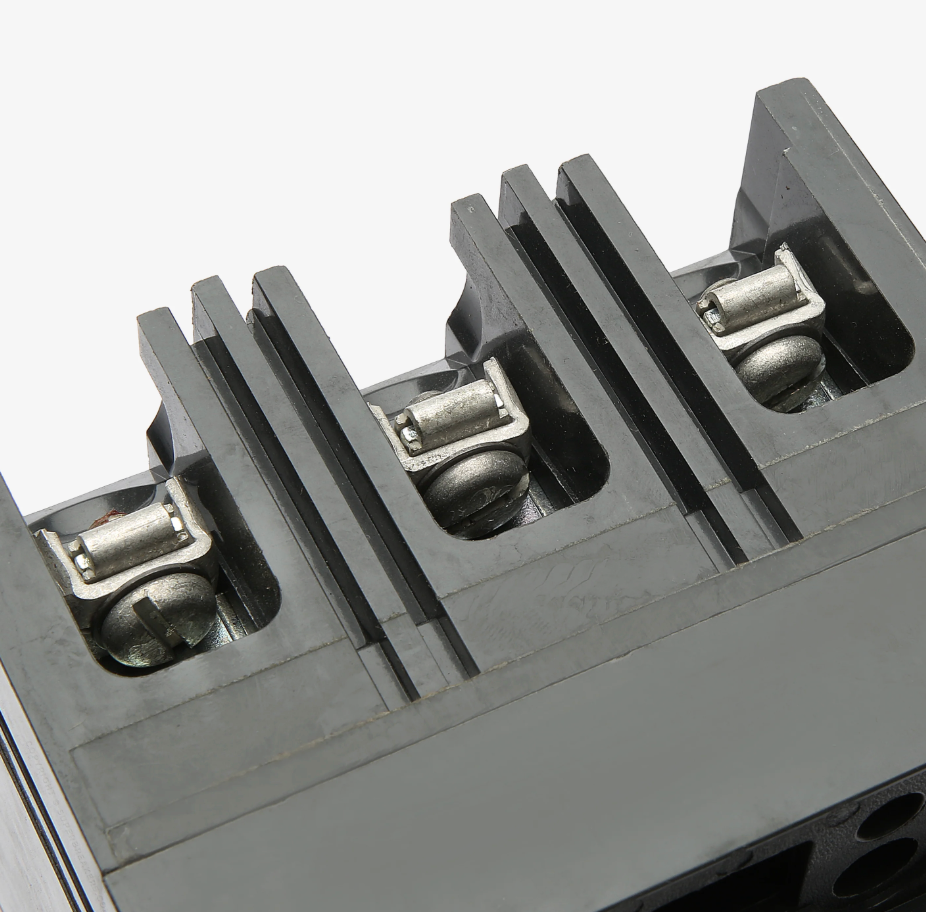

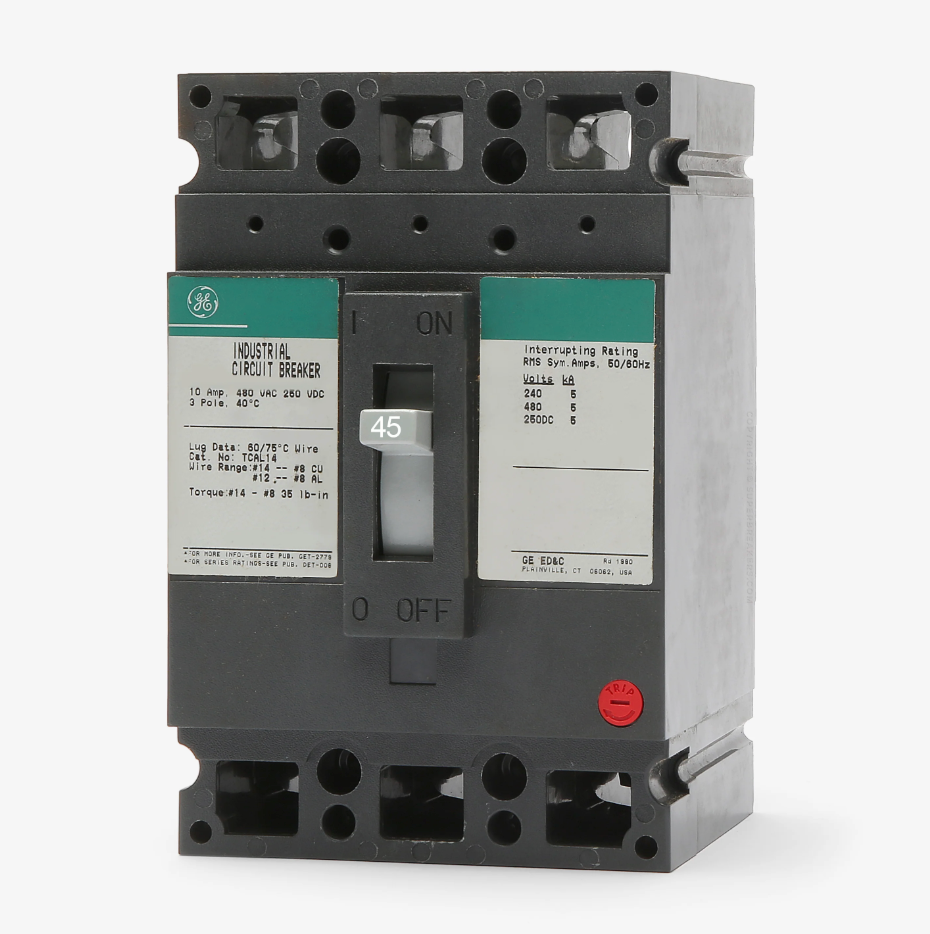

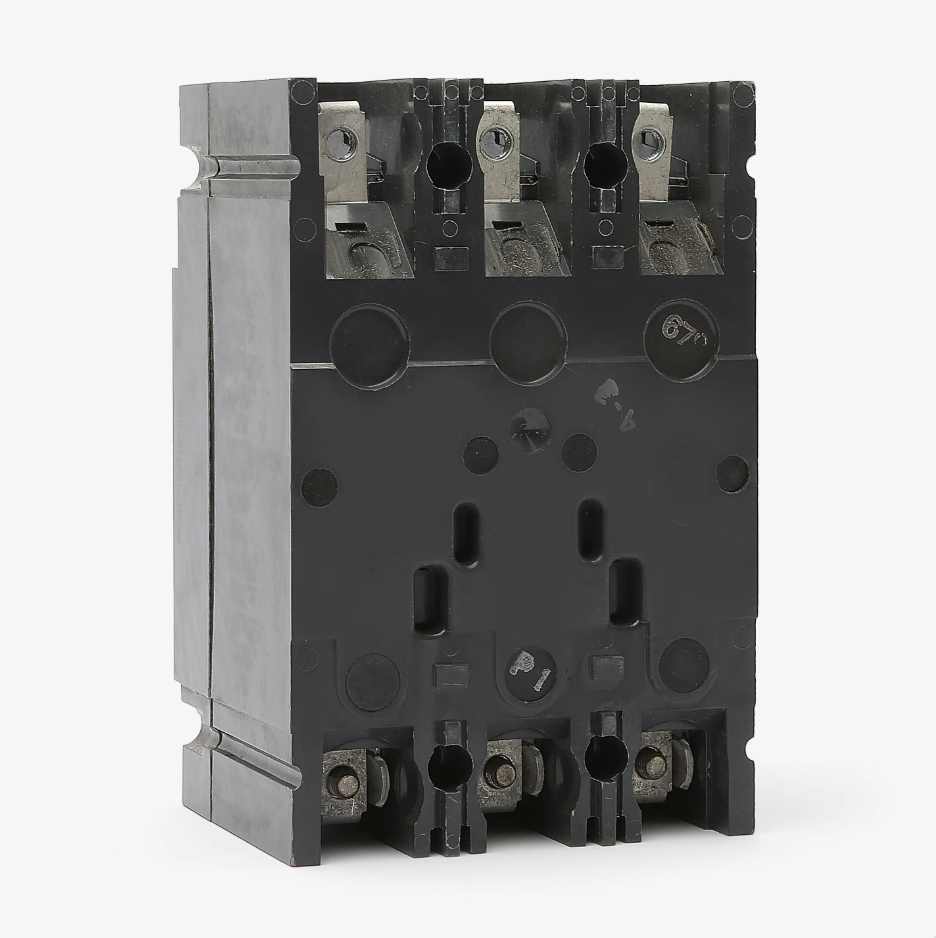

General Electric THED136045WL 45A 3-Pole Molded Case Circuit Breaker 600VAC E-150 Series
- Regular price
- $472.00
- Sale price
- $472.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: THED136045WL
Description
The General Electric THED136045WL is a molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial electrical systems. Rated at 45 amps and 600 volts AC, it ensures safe interruption of overload and short-circuit conditions in three-phase circuits. This breaker is built for consistent performance in panelboards and distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Electrical Products |
| Part Number | THED136045WL |
| Subcategory | Circuit Breakers |
| Series | E-150 |
| Type | Molded Case Circuit Breaker |
| Amperage | 45 A |
| Voltage Rating | 600 VAC |
| Poles | 3 |
| Interrupt Rating | 25kA @ 480V |
| Trip Unit | Thermal-Magnetic |
| Connection Type | Feed-Thru (Line & Load Lugs) |
| Phase | Three Phase |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Application | Industrial and commercial distribution |
| Weight | 3 lbs |
Information About THED136045WL
The THED136045WL is part of General Electric’s E-150 series, engineered for medium-duty power distribution and control applications. It features a molded insulated case construction that enhances durability and electrical safety under demanding operating conditions. The breaker utilizes a thermal-magnetic trip unit, combining long-time overload protection with instantaneous short-circuit response. Designed with feed-thru capability and lug terminals, it integrates easily into industrial switchgear and panelboard installations.
Key Features:
- 45 Amp Rating: Suitable for moderate-load circuit protection in industrial systems.
- 600 VAC Operation: Designed for higher-voltage distribution applications.
- 3-Pole Configuration: Provides protection for three-phase circuits.
- Thermal-Magnetic Trip: Combines long-time and instantaneous protection functions.
- 25kA Interrupt Rating: Ensures safe interruption of high fault currents at 480V.
- Feed-Thru Design: Supports flexible wiring and reverse-feed configurations.
- Lug Terminal Connections: Enables secure line and load wiring installation.
- E-150 Series Construction: Compatible with GE panelboards and switchgear systems.
The THED136045WL delivers the reliability and precision required for circuit protection in industrial and commercial power distribution environments.
