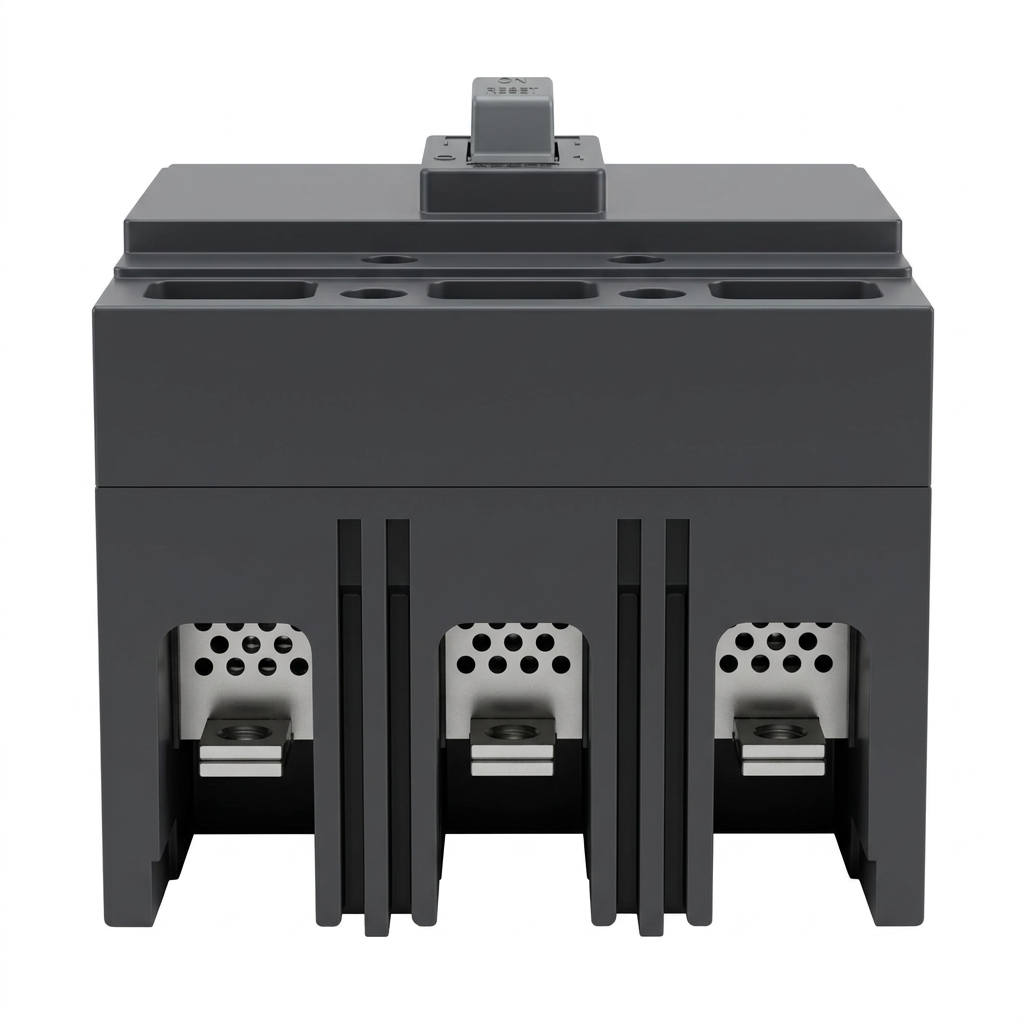

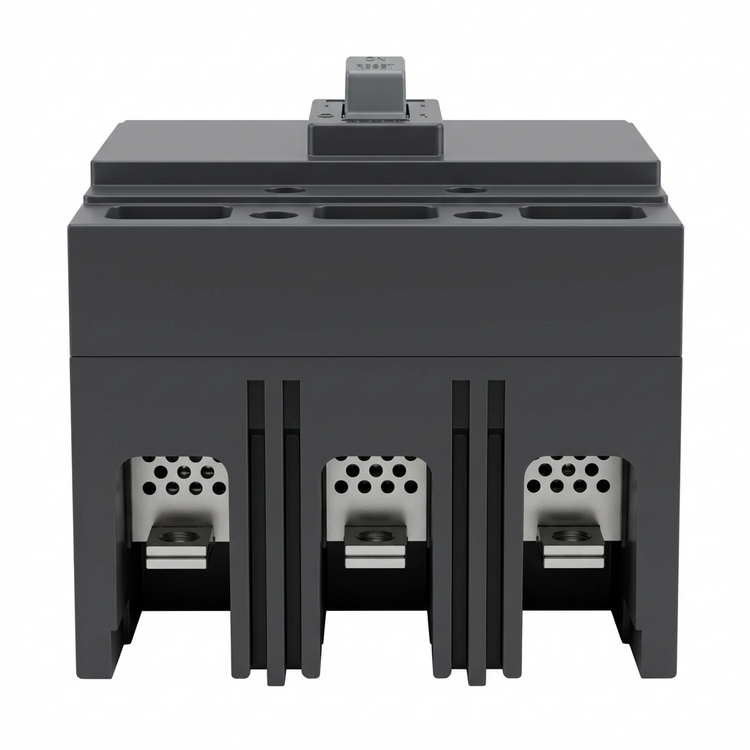

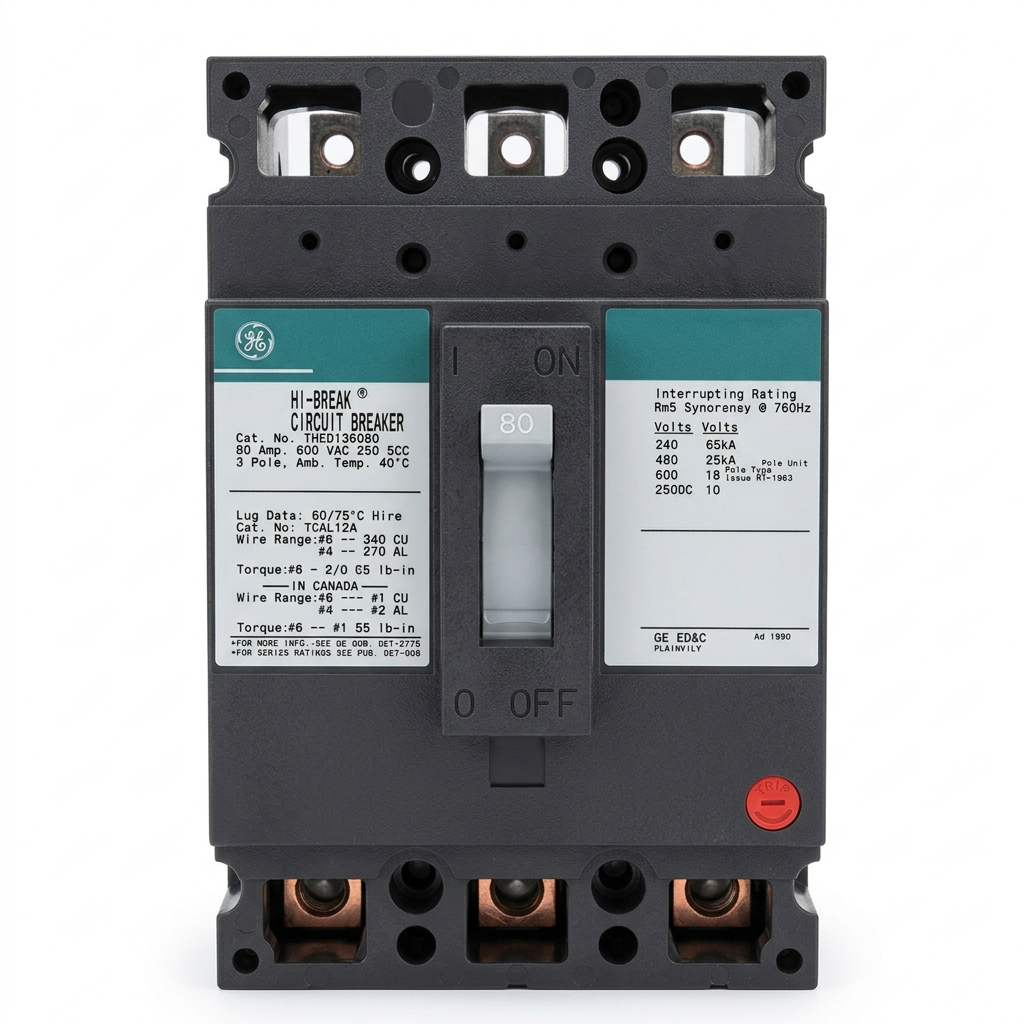

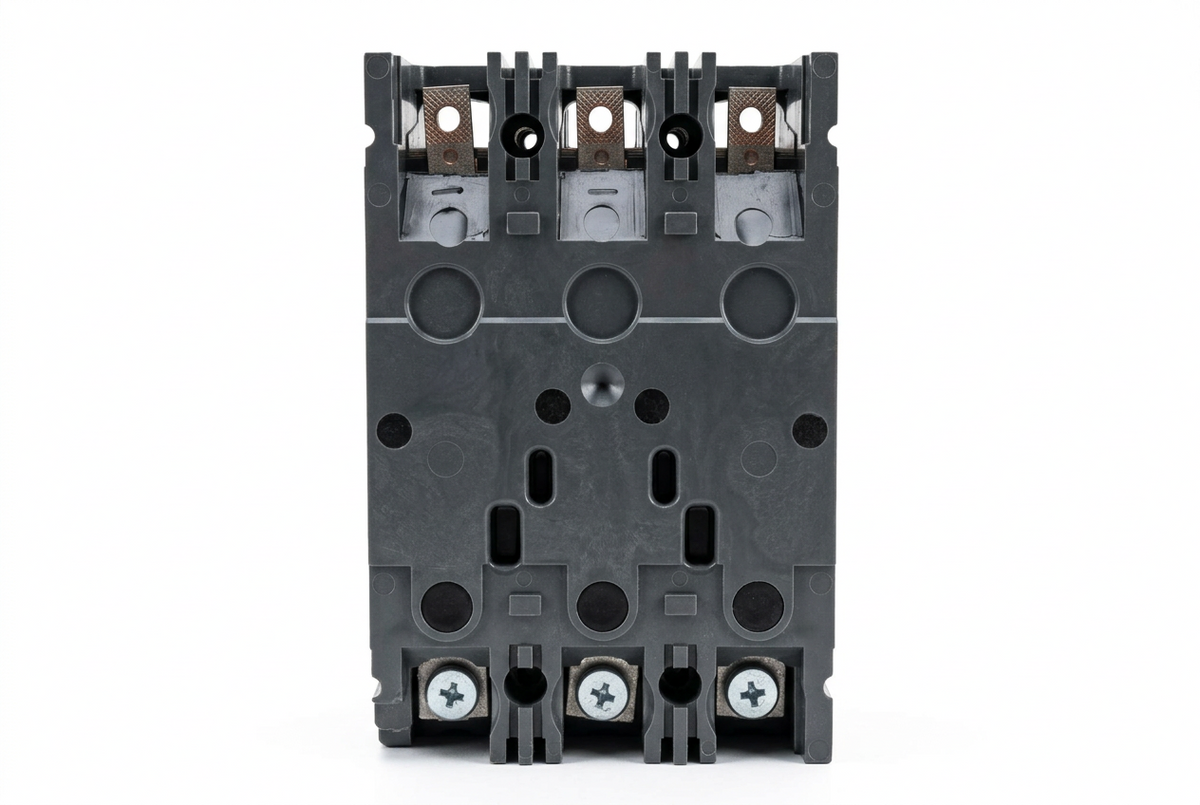

General Electric THED136080 3-Pole 80A 600VAC Circuit Breaker
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: THED136080
Description
The General Electric THED136080 molded case circuit breaker is a heavy-duty 3-pole electrical distribution protection device designed for commercial and industrial panelboard and switchboard applications. Rated for 80 Amps continuous current at up to 600V AC, this thermal-magnetic breaker provides dual-element protection against overloads and short circuits. Its robust construction ensures long-term operational stability and instantaneous fault interruption across demanding industrial power distribution networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | THED136080 |
| Subcategory | Molded Case Circuit Breaker |
| Frame Type | E150 Frame |
| Ampere Rating | 80 Amps |
| Poles | 3-Pole |
| Voltage Rating | 600V AC / 250V DC |
| Trip Unit Type | Fixed Thermal-Magnetic |
| Mounting Type | Bolt-On / Panel Mount |
| Weight | 3.70 lbs |
Information About THED136080
The THED136080 belongs to General Electric's established E150 series of molded case circuit breakers. Weighing 1.68 kgs, it features a durable thermoset composite enclosure engineered for bolt-on mounting inside standard GE electrical distribution chassis. The breaker incorporates non-interchangeable thermal-magnetic trip units with fixed long-time overload delay and fixed instantaneous short-circuit protection, providing reliable overcurrent defense for industrial motors, transformers, and branch circuits.
Key Features:
-
High Voltage & Current Rating: Rated for 80 Amps continuous operation at up to 600V AC.
-
3-Pole Configuration: Designed for three-phase commercial and industrial power distribution systems.
-
Thermal-Magnetic Protection: Integrates fixed thermal time-delay overload and fixed magnetic instantaneous short-circuit sensing.
-
Bolt-On Installation: Heavy-duty terminal arrangement ensures secure, vibration-resistant panel mounting.
-
Durable Molded Chassis: Impact-resistant thermoset housing protects internal contacts and arc chutes from environmental exposure.
-
High Interrupting Capacity: Engineered to clear severe high-voltage fault currents safely without damaging upstream equipment.
-
Clear Visual Indication: High-visibility toggle handle clearly shows ON, OFF, and TRIPPED operating states.
-
Standardized Industrial Fit: Fits standard GE E150 frame panelboard cutouts for straightforward installation and maintenance.
The THED136080 delivers the reliability, interrupting capacity, and circuit safety required for professional industrial power distribution and facility protection.
