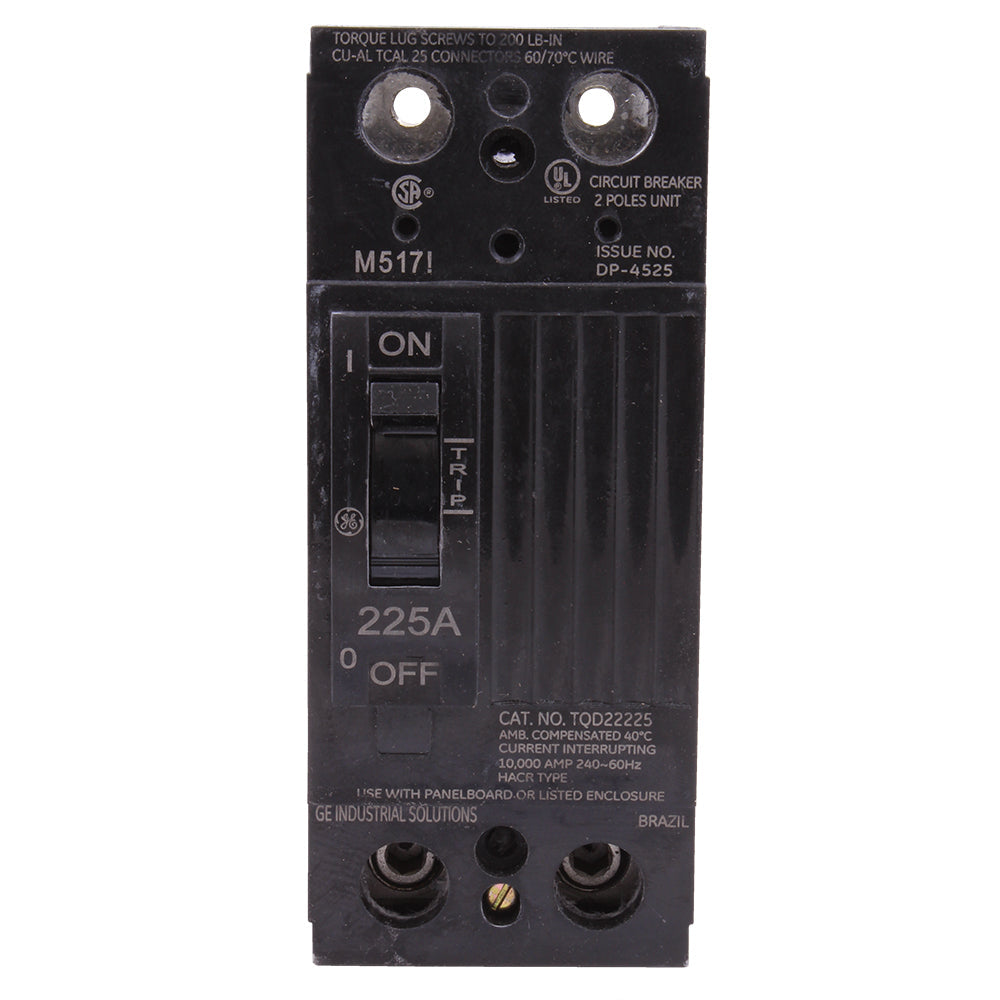

General Electric TQD22225 225A 2P 240V 10kAIC Bolt-On Breaker
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TQD22225
Description
The General Electric TQD22225 is a heavy-duty Q-Line molded case circuit breaker engineered for main or branch overcurrent and short-circuit protection in residential, commercial, and industrial electrical distribution systems. Rated for 225 Amps at 240V AC across 2 poles in a single-phase configuration, this thermal-magnetic breaker features a 10 kAIC interrupting capacity to safely clear low-to-medium electrical faults and protect downstream power equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | TQD22225 |
| Subcategory | Molded Case Circuit Breaker (MCCB) |
| Product Line | Q-Line / TQD Frame |
| Amperage Rating | 225 Amps |
| Voltage Rating | 240V AC |
| Poles / Phase | 2-Pole, 1-Phase |
| Interrupting Rating | 10 kAIC @ 240V AC |
| Trip Unit Type | Non-Interchangeable Thermal-Magnetic |
| Mounting Style | Bolt-On |
| Terminals | Load Side Lugs Included |
| Weight | 3.00 lbs |
Information About TQD22225
The TQD22225 belongs to General Electric's trusted TQD frame series within the Q-Line circuit breaker family.Weighing 1.36 kgs, it features a bolt-on mounting design that secures directly to the bus structure of GE panelboards and switchboards. Equipped with factory-installed load side lugs and non-interchangeable thermal-magnetic trip units, it provides time-delay overload protection combined with instantaneous magnetic tripping during severe short-circuit events.
Key Features:
-
High 225A Continuous Rating: Engineered to support heavy single-phase 225 Amp electrical loads at 240 VAC.
-
10 kAIC Interrupting Capacity: Rated to interrupt up to 10,000 Amps of short-circuit current safely at 240V.
-
Thermal-Magnetic Trip Unit: Delivers inverse-time overload protection and quick magnetic response to short circuits.
-
Secure Bolt-On Mounting: Designed for direct busbar attachment, ensuring low electrical resistance and vibration resistance.
-
Factory-Installed Load Lugs: Includes sturdy load side terminal lugs for straightforward conductor connection.
-
Compact 1.36 kgs TQD Frame: Lightweight, space-saving design fits standard GE distribution enclosures.
-
Single-Phase 2-Pole Layout: Optimized for 120/240V 1-phase 3-wire main service or high-capacity branch feed lines.
-
Durable Molded Housing: High-strength insulating case ensures high dielectric strength and thermal resistance.
The TQD22225 circuit breaker delivers the current-carrying capacity, mechanical stability, and dependable fault protection required for primary power entry and heavy distribution branch control.
