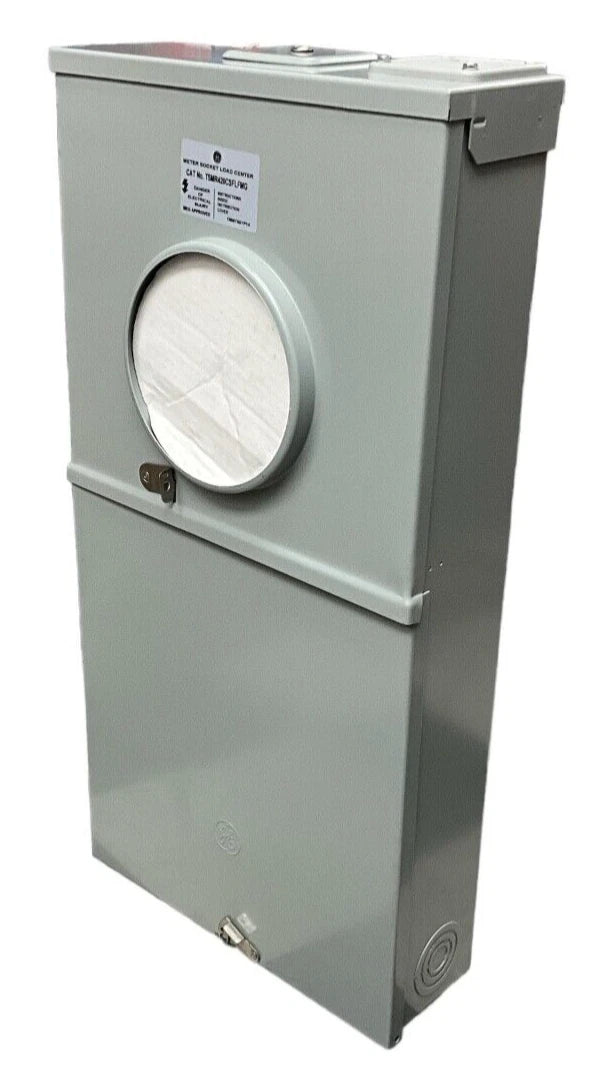

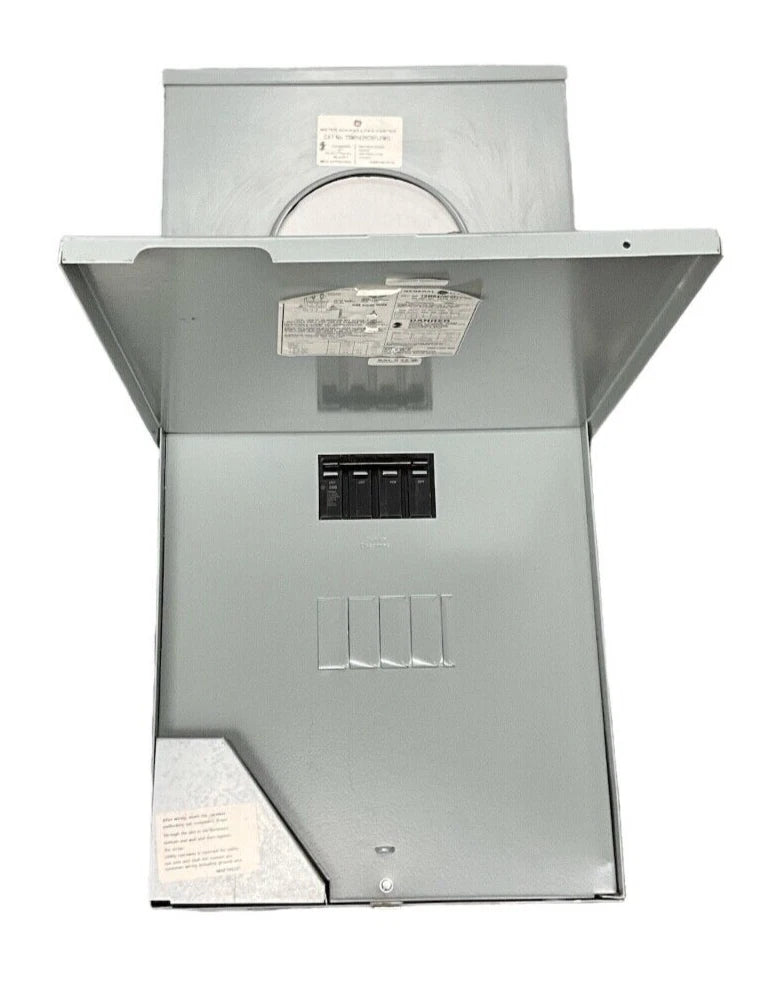

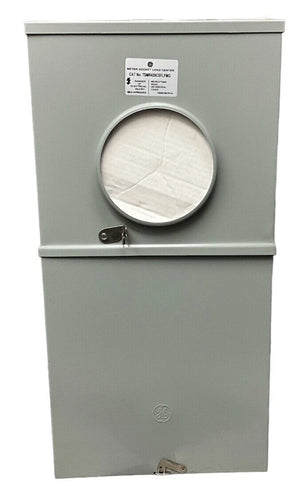

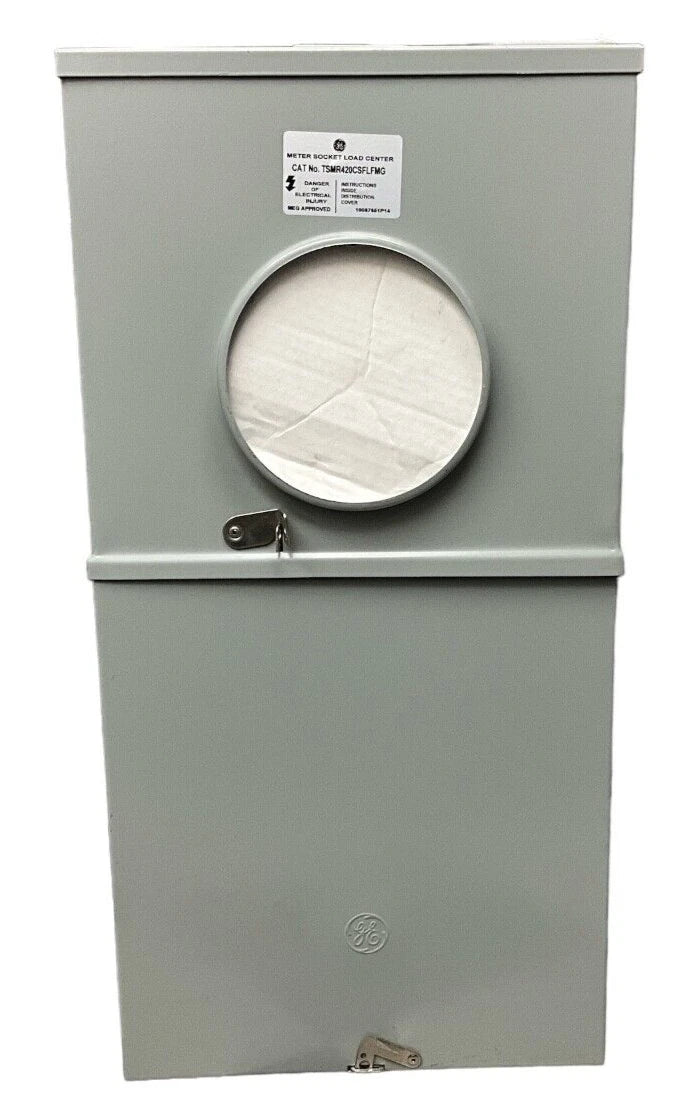

General Electric TSMR420CSFLFMG Meter Socket Load Center
- Regular price
- $725.00
- Sale price
- $725.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TSMR420CSFLFMG
Description
The General Electric TSMR420CSFLFMG meter socket load center is a 3-wire, 4/8-circuit main breaker unit designed for residential and outdoor service entrance applications. It operates on 120/240 VAC single-phase systems with a 200 A rating and features a ringless cover design for utility metering installations. Built with a NEMA 3R enclosure, the unit provides reliable circuit distribution and weather-resistant protection for exterior mounting environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Electrical Distribution |
| Part Number | TSMR420CSFLFMG |
| Subcategory | Meter Socket Load Centers |
| Type | 3-Wire 4/8-Circuit Main Breaker |
| Phase | 1 Phase |
| Voltage Rating | 120/240 VAC |
| Amperage Rating | 200 A |
| Wire Size | 6 AWG to 350 kcmil |
| Circuit Breaker Style | Plug-In |
| Feed Configuration | Either |
| Terminal Type | Feed-Through Lug |
| Enclosure Type | NEMA 3R |
| Cover Type | Ringless |
| Factory Installed Ground Kit | Yes |
| Mounting Type | Surface |
| Application | Service Entrance Equipment, Outdoor and Residential Applications |
| Operating Temperature | 60/75°C |
| Service & Voltage | 1 Phase, 3 Wire, 120/240 VAC |
| UL/CUL Listing | UL |
| Dimensions | 14 in W x 4-1/2 in D x 28-1/2 in H |
| Weight | 38 lb |
Information About TSMR420CSFLFMG
The TSMR420CSFLFMG is a main breaker meter socket load center manufactured by General Electric for residential electrical distribution and service entrance installations. This unit combines utility metering and branch circuit distribution within a compact outdoor-rated enclosure designed for single-phase 120/240 VAC systems. It supports a 3-wire configuration with feed-through lug terminals compatible with aluminum and copper conductors ranging from 6 AWG to 350 kcmil. The load center includes a factory-installed ground kit, ringless cover, and plug-in breaker configuration to simplify installation and maintenance in outdoor applications.
Key Features:
- 200 Amp Service Rating: Supports high-capacity residential electrical distribution systems.
- 4/8-Circuit Configuration: Provides flexible branch circuit expansion capability.
- Ringless Cover Design: Suitable for utility metering and service entrance installations.
- NEMA 3R Enclosure: Protects internal components in outdoor environments.
- Plug-In Breaker Style: Allows simplified circuit breaker installation and replacement.
- Feed-Through Lug Terminals: Compatible with copper and aluminum conductors.
- Factory-Installed Ground Kit: Reduces installation time and grounding setup requirements.
- Surface Mount Construction: Designed for secure outdoor wall mounting applications.
The TSMR420CSFLFMG delivers the reliability and precision required for residential service entrance and outdoor power distribution systems.
