Genie 101586GT LC25 Hydraulic Piston Drive Motor 25cc 6.5 Degree 13-Tooth for Scissor and Boom Lifts
- Regular price
- $5,599.00
- Sale price
- $5,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 101586GT
Description

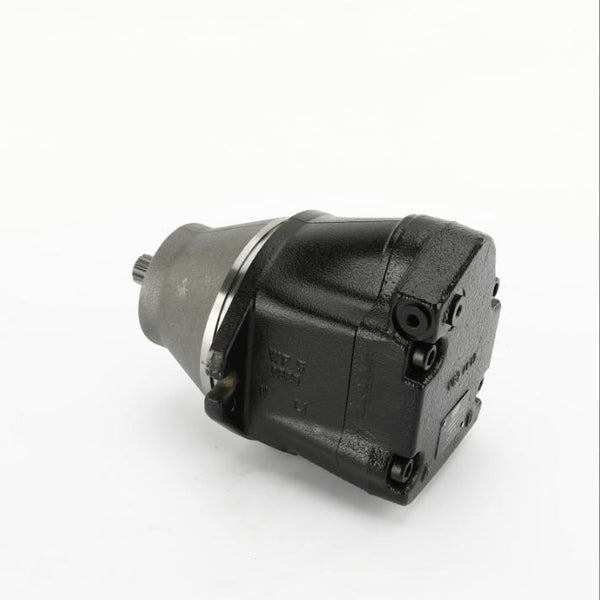

The Genie 101586GT is a hydraulic piston motor identified by the LC25 designation, a 6.5-degree configuration, and a 13-tooth drive interface. Designed for compatible mobile hydraulic equipment, it converts hydraulic fluid power into rotary motion for machine drive applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Genie |
|
Category |
Hydraulics & Fluid Power |
|
Part Number |
101586GT |
|
Subcategory |
Hydraulic Piston Motors |
|
Product Type |
Hydraulic Piston Drive Motor |
|
Motor Series / Designation |
LC25 |
|
Motor Design |
Hydraulic Piston |
|
Nominal Displacement |
25 cc/rev (1.53 cu in/rev) |
|
Angular Configuration |
6.5° |
|
Drive Interface |
13-Tooth |
|
Power Source |
Pressurized Hydraulic Fluid |
|
Primary Function |
Hydraulic Wheel Drive |
|
Equipment Type |
Mobile Elevating Work Platforms |
|
Compatible Genie Scissor Lifts |
GS-2669 RT, GS-3369 RT, GS-4069 RT, GS-3384, GS-3390, GS-4390, GS-5390; Serial Number Dependent |
|
Compatible Genie Boom Lifts |
S-40, S-45, Z-34/22 IC, Z-45/25, Z-45/25J, Z-51/30J; Serial Number Dependent |
|
Associated Seal Kit |
Genie 106098GT |
|
Installation Position |
Drive Chassis / Wheel Drive Assembly |
|
Compatibility Requirement |
Verify Equipment Model, Serial Number, and Original Motor Configuration |
|
Weight |
15.00 lb |
Information About 101586GT
The 101586GT is a replacement hydraulic piston motor listed under the LC25 designation for compatible Genie equipment. Its piston-type hydraulic mechanism produces rotational output from pressurized hydraulic fluid, supporting mechanically driven functions in mobile machinery. The 6.5-degree specification and 13-tooth drive configuration are important identifiers when matching the motor to an existing hydraulic assembly. Installation requires verification of the machine model, motor mounting interface, hydraulic connections, and original equipment configuration.
Key Features:
-
Hydraulic Piston Design: Converts hydraulic pressure and flow into mechanical rotational output.
-
LC25 Identification: Uses the LC25 designation for matching the replacement motor to the original assembly.
-
6.5-Degree Configuration: Identified by a 6.5-degree motor specification.
-
13-Tooth Drive Interface: Features a 13-tooth configuration for compatible mechanical drive connections.
-
Mobile Equipment Application: Intended for use in compatible hydraulically operated machinery.
-
Replacement Component: Supports repair or replacement of an existing hydraulic motor assembly.
-
Fluid-Powered Operation: Operates through a hydraulic circuit rather than a separate electric motor supply.
-
Rotary Power Transmission: Transfers hydraulic power to a connected mechanical drive system.
-
OEM Part Identification: Uses Genie part number 101586GT for component identification.
-
Installation Compatibility: Requires matching shaft geometry, mounting dimensions, and hydraulic ports to the original motor.
The 101586GT delivers the reliability and precision required for hydraulic rotary drive operation and replacement motor applications in compatible mobile equipment.
