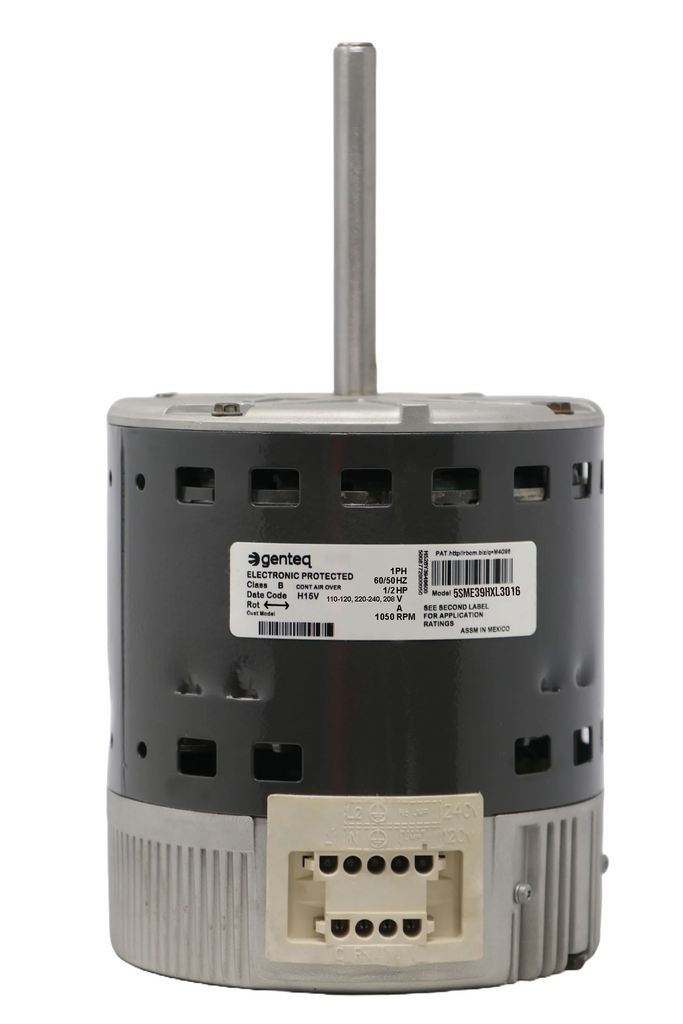

Genteq 5SME39HXL3016 ECM 3.0 Blower Motor, 1/2 HP, 120/240V
- Regular price
- $1,155.00
- Sale price
- $1,155.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5SME39HXL3016
Description
The Genteq 5SME39HXL3016 is an electronically commutated motor (ECM 3.0) designed for compatible residential HVAC blower systems. It is rated at 1/2 HP, operates on 120/240 V power, and has a maximum listed speed of 1050 RPM.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Genteq |
| Category | HVAC Motors |
| Part Number | 5SME39HXL3016 |
| Subcategory | ECM Blower Motor |
| Motor Platform | ECM 3.0 |
| Motor Type | Electronically Commutated Motor |
| Rated Horsepower | 1/2 HP |
| Voltage | 120/240 V |
| Current | 7.7 A at 120 V / 4.3 A at 240 V |
| Phase | Single phase |
| Maximum Speed | 1050 RPM |
| Frame | 48Y |
| Bearing Type | Ball bearing |
| Rotation | CW/CCW, depending on configuration |
| Cross-Reference | Rheem/Ruud 51-102602-01 |
| Weight | 10 lb |
5SME39HXL3016
The 5SME39HXL3016 is a Genteq variable-speed ECM blower motor used in compatible furnace and air-handling equipment. It operates on 120/240 V power and is rated at 7.7 A at 120 V or 4.3 A at 240 V. The motor uses the ECM 3.0 platform, with electronic protection and ball-bearing construction. It is cross-referenced with Rheem/Ruud part number 51-102602-01; verify the complete motor model and programmed application before replacement.
-
ECM 3.0 Technology: Electronically commutated motor platform for variable-speed HVAC applications.
-
1/2 HP Rating: Designed for compatible furnace blower systems.
-
Dual-Voltage Operation: Supports 120 V and 240 V applications.
-
Variable-Speed Control: Provides electronically controlled blower operation.
-
1050 RPM Maximum Speed: Listed maximum rotational speed.
-
Electronic Protection: Includes electronic motor protection.
-
Ball Bearings: Supports smooth motor rotation in continuous-duty applications.
-
Replacement Compatibility: Cross-referenced with Rheem/Ruud part number 51-102602-01.
The 5SME39HXL3016 delivers the motor control and performance required for compatible residential HVAC blower applications.
