Genteq 5SME39NXL178 Endura Pro X-13 ECM Blower Motor, 3/4 HP
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5SME39NXL178
Description

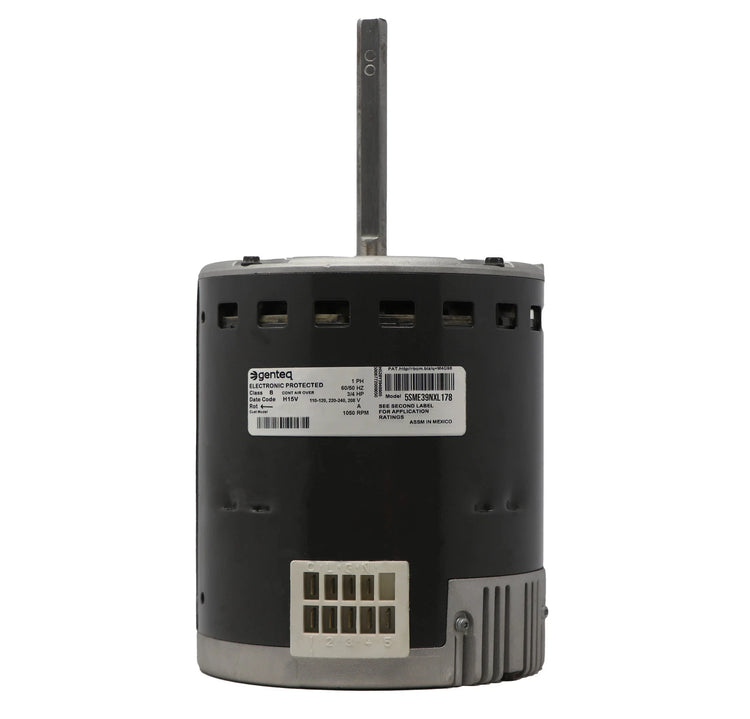

The Genteq 5SME39NXL178 is an electronically commutated (ECM) X-13 blower motor designed for compatible residential HVAC systems. It is rated at 3/4 HP, operates at 208–230 VAC, and has a listed speed of 1050 RPM.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Genteq |
| Category | HVAC Motors |
| Part Number | 5SME39NXL178 |
| Subcategory | ECM Blower Motor |
| Motor Series | Endura Pro X-13 |
| Motor Type | Electronically Commutated Motor (ECM) |
| Rated Horsepower | 3/4 HP |
| Voltage | 208–230 VAC |
| Frequency | 50/60 Hz |
| Phase | Single phase |
| Rated Current | 6.0 A |
| Speed | 1050 RPM |
| Frame | 48 |
| Shaft Diameter | 1/2 in |
| Shaft Length | 3-15/16 in |
| Rotation | Counterclockwise, lead-end view |
| Bearing Type | Ball bearing |
| Cross-Reference | Carrier HD46AR250; ICP 1179685 |
| Weight | 11 lb |
Information About 5SME39NXL178
The 5SME39NXL178 is a Genteq Endura Pro X-13 blower motor used in compatible furnace and air-handler applications. It operates on single-phase 208–230 V power and has a rated current of 6.0 A. The motor features electronic protection, ball bearings, and a 48-frame mounting configuration. It is cross-referenced with Carrier blower motor assembly HD46AR250 and is associated with compatible Carrier, Bryant, Payne, and ICP-family equipment. Verify the original motor number and wiring connections before replacement.
-
ECM X-13 Technology: Electronically commutated motor design for HVAC blower systems.
-
3/4 HP Output: Designed for compatible residential air-handling applications.
-
208–230 VAC Operation: Supports the specified AC supply voltage.
-
1050 RPM Speed: Listed rated rotational speed.
-
Single-Phase Power: Designed for single-phase electrical systems.
-
Electronic Protection: Incorporates electronic motor protection.
-
Ball Bearings: Supports smooth motor operation.
-
Replacement Cross-Reference: Associated with Carrier assembly number HD46AR250.
The 5SME39NXL178 delivers the motor performance required for compatible HVAC air-circulation applications.
