Product Description P/N: GF505
Description

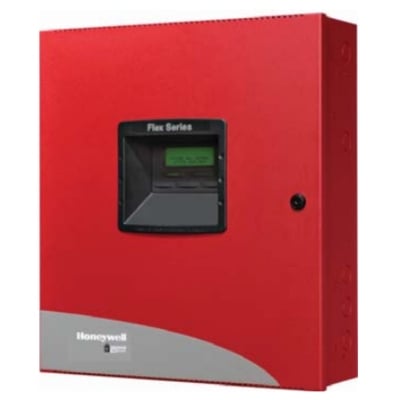

The Gamewell-FCI GF505 Flex 505 is a five-zone conventional fire alarm control panel with an FLPS-7 power supply and red enclosure. Operating on 120 VAC, it supports Class B initiating device circuits, four NACs, and integrated relay outputs for medium-sized commercial fire protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | GF505 |
| Subcategory | Fire Alarm Control Panels |
| Series | Flex 505 |
| Type | Conventional Fire Alarm Control Panel |
| Zones | 5 initiating device circuits (Class B, Style B) |
| Input Devices | Compatible with 2-wire/4-wire smoke detectors, pull stations, waterflow, tamper switches, and NO devices |
| Device Compatibility | Supports System Sensor i3™ Series with drift compensation, maintenance alert, and freeze warning |
| Power Supply | FLPS-7 included |
| Input Power | 120 VAC |
| Notification Circuits | 4 NACs, Class B (Style Y), power-limited |
| Relays | 3 programmable Form-C relays (factory pre-set for Alarm, Trouble, Supervisory) |
| Auxiliary Power | Resettable and non-resettable 24 VDC outputs |
| Supervision | Monitors wiring, AC voltage, and battery level |
| Applications | Medium-sized commercial, industrial, and institutional buildings |
| Enclosure Color | Red |
| Compliance | UL Listed |
| Dimensions | 19.30 × 16.80 × 5.20 in |
| Weight | 10 lbs |
Information About GF505
The GF505 Flex 505 is part of Gamewell-FCI’s Flex Series of conventional fire alarm control panels, engineered for medium-sized facilities requiring dependable fire detection and signaling. It provides five Class B initiating device circuits that support a wide range of conventional devices, including System Sensor i3™ detectors with advanced diagnostics. The panel includes four notification appliance circuits, three programmable relays, and auxiliary power outputs to support additional system functions. With full supervision of wiring, AC input, and battery status, the GF505 ensures reliable operation and compliance in life safety installations.
Key Features:
- Five-zone configuration: Provides five Class B initiating device circuits for monitoring detectors, pull stations, and supervisory devices.
- Broad device compatibility: Works with conventional input devices, including System Sensor i3™ Series smoke detectors with advanced features.
- Four NAC circuits: Includes four power-limited notification appliance circuits in Class B (Style Y) for horns, strobes, and other signaling devices.
- Relay integration: Features three Form-C relays, programmable for custom system response, with factory presets for alarm, trouble, and supervisory.
- Auxiliary outputs: Provides resettable and non-resettable 24 VDC power for supporting external devices or special applications.
- Full system supervision: Continuously monitors wiring integrity, AC voltage, and battery condition for reliable operation.
- Medium-scale protection: Designed for commercial, industrial, and institutional buildings requiring dependable fire alarm coverage.
- Durable red enclosure: Rugged design ensures secure housing and professional installation.
- Efficient power supply: Includes the FLPS-7 power supply, delivering stable and regulated system power.
- Compact design: Sized at 19.3 × 16.8 × 5.2 inches and weighing 10 lbs for manageable installation.
The GF505 delivers the reliability and precision required for medium-sized facility fire detection and notification needs.
