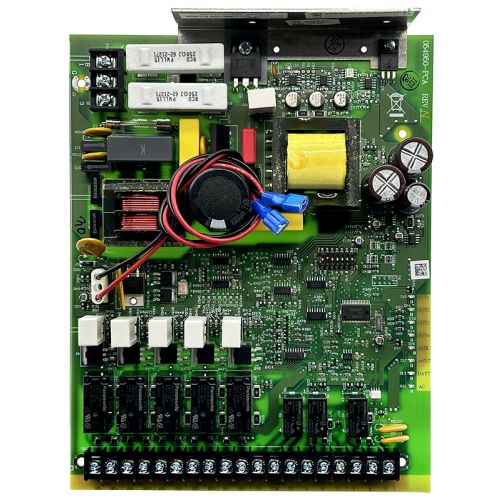

GFPS-6RB | Gamewell-FCI Replacement Board for GFPS-6 NAC Expander
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GFPS-6RB
Description
The Gamewell-FCI GFPS-6RB is a replacement board designed for the GFPS-6 NAC Expander / Power Supply, restoring full functionality to notification appliance circuits in fire alarm systems. It supports 6 amps of regulated 24VDC output, integrated synchronization, and built-in battery charging capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | GFPS-6RB |
| Subcategory | Replacement Boards |
| Type | Replacement circuit board for GFPS-6 NAC Expander / Power Supply |
| Output Voltage | 24 VDC regulated |
| Total Output Current | 6.0 A |
| Output Circuits | Four NACs: 4 Class B, 2 Class A, or 1 Class A + 2 Class B |
| Current per Circuit | 3.0 A max per output |
| Auxiliary Output | Continuous auxiliary 24 VDC output |
| Inputs | 2 inputs, configurable as 2 Class B or 2 Class A |
| Synchronization | Built-in sync for System Sensor, Gentex, Wheelock, AMSECO, and Faraday |
| Battery Charger | Supports up to 35 Ah batteries; 7 Ah maximum in cabinet |
| Trouble Monitoring | LED indicators and Form-C contacts for AC loss, battery fault, ground fault |
| Compatibility | GFPS-6, FireForce 6, and SNAC-6 power supply units |
| Compliance | UL Listed fire alarm accessory |
| Weight | 1 lb |
Information About GFPS-6RB
The GFPS-6RB is a factory replacement board developed by Gamewell-FCI for use with the GFPS-6 NAC Expander / Power Supply and compatible units such as FireForce 6 and SNAC-6. It restores the expander’s full capacity of 6 amps at 24 VDC for notification appliances while retaining built-in synchronization for major strobe and horn manufacturers. The board also includes a battery charger that supports up to 35 Ah backup batteries, ensuring reliability during power loss. With DIP switch programmability, trouble monitoring features, and UL listing, the GFPS-6RB maintains compliance and reliability in life safety systems.
Key Features:
- Direct replacement functionality: Specifically engineered to replace the original circuit board in GFPS-6, FireForce 6, and SNAC-6 units, restoring complete operation.
- High current capacity: Provides up to 6 amps of regulated 24VDC output, supporting multiple notification appliances across supervised circuits.
- Flexible circuit configuration: Includes four outputs configurable as 4 Class B, 2 Class A, or a mixed configuration, offering installation flexibility.
- Built-in synchronization: Supports System Sensor, Gentex, Wheelock, AMSECO, and Faraday appliances for code-compliant signaling.
- Auxiliary 24VDC output: Provides an additional continuous output for powering compatible system devices.
- Battery charging support: Features an integrated charger capable of maintaining up to 35 Ah batteries, with 7 Ah batteries accommodated within the cabinet.
- Comprehensive trouble monitoring: Equipped with LED indicators and Form-C trouble relays to report AC loss, ground fault, and battery issues.
- UL Listed compliance: Certified as a fire alarm accessory, ensuring safety and reliability for use in commercial fire protection systems.
- Compact and lightweight: At just 1 lb, the replacement board is easy to handle and install without adding bulk.
The GFPS-6RB delivers the reliability and precision required to restore NAC expander and power supply functionality in Gamewell-FCI fire alarm systems.
