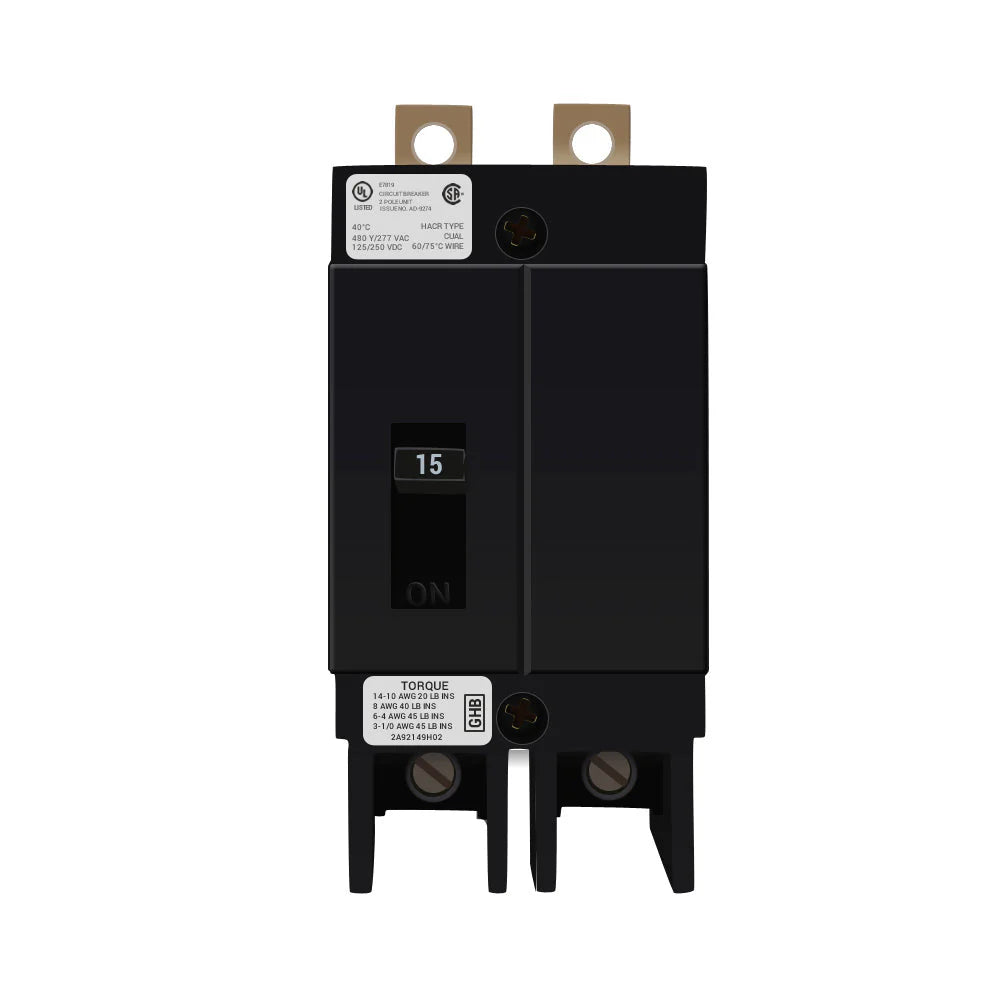

GHB2015 | Eaton Series C Complete Molded Case Circuit Breaker
- Regular price
- $169.00
- Sale price
- $169.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GHB2015
Description
The Eaton GHB2015 is a 15A molded case circuit breaker from the Series C GHB line, designed for single-phase electrical distribution systems. This 2-pole breaker provides thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions and carries a 14 kA interrupt rating at 480V. Its bolt-on mounting design ensures secure installation in compatible panelboards using the G-Frame platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | GHB2015 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Series C |
| Type | GHB |
| Voltage Rating | 240 V (corrected from “2V”) |
| Amperage Rating | 15 A |
| Phase | 1-Phase |
| Poles | 2 |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time & Instantaneous |
| AIC Rating | 14 kA @ 480 V |
| Connection Style | Bolt-On |
| Frame Type | G Frame |
Information About GHB2015
The GHB2015 is part of Eaton’s Series C GHB family, known for reliable performance in commercial, light industrial, and panelboard applications. Built on the durable G Frame, it provides a compact yet robust solution for protecting branch circuits. Its thermal-magnetic trip unit delivers overload protection through a thermal element and rapid short-circuit clearing through a magnetic element, forming a balanced LI protection profile. Rated 15A and suitable for 240V single-phase systems, the GHB2015 uses a bolt-on connection style for secure mechanical and electrical engagement, while its 14 kA interrupting capacity ensures dependable fault-clearing capability.
Key Features:
- Thermal-magnetic trip: Provides overload and short-circuit protection.
- LI trip functions: Long-Time and Instantaneous trip operation for comprehensive protection.
- 15A rating for 240V circuits: Suitable for light-duty residential, commercial, and industrial loads.
- 14 kA interrupt rating: Capable of safely clearing moderate fault currents.
- G-Frame construction: Durable molded case design for long-term reliability.
- 2-pole configuration: Protects both conductors of a single-phase circuit.
- Bolt-on connection: Ensures stable attachment in Series C panelboards.
- Series C compatibility: Integrates easily into Eaton/Westinghouse system architectures.
The GHB2015 delivers the reliability and precision required for safe, dependable branch-circuit protection in single-phase installations.
