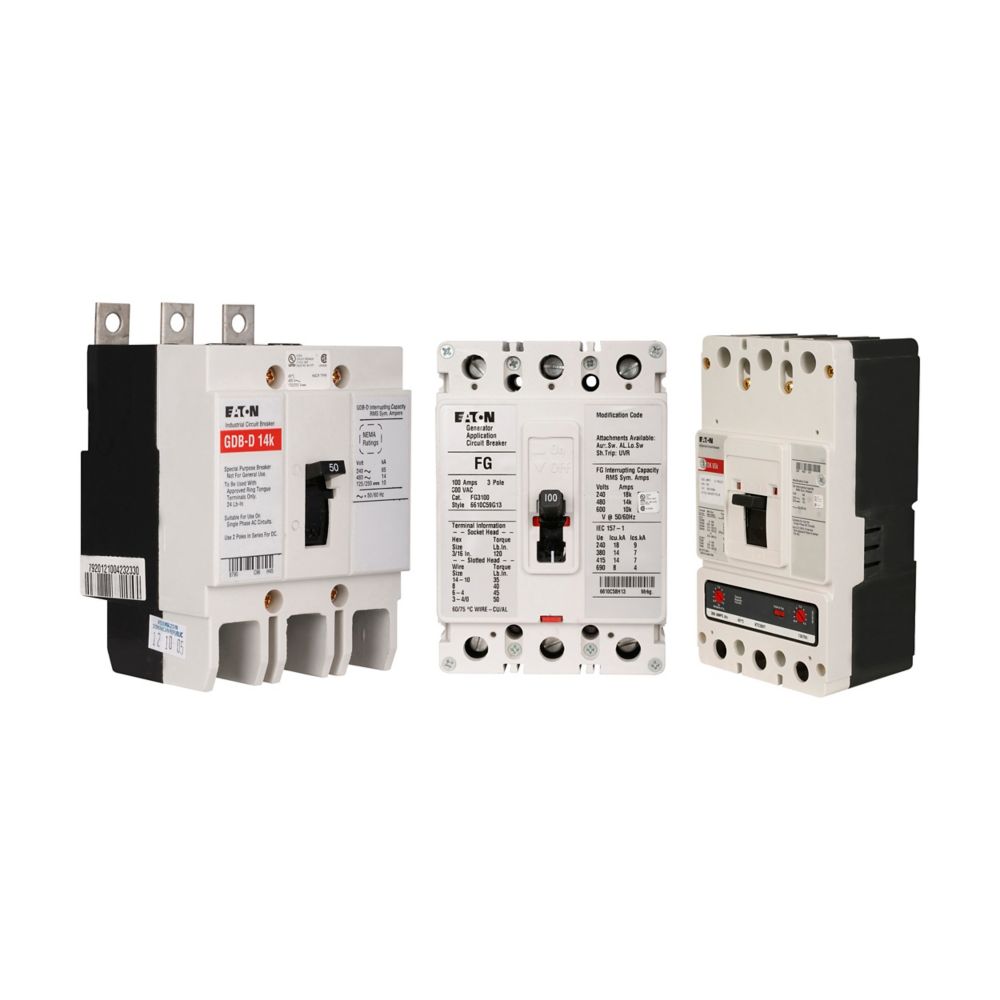

GHB2030 | Eaton Molded Case Circuit Breaker
- Regular price
- $292.00
- Sale price
- $292.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GHB2030
Description
The GHB2030 is a molded case circuit breaker manufactured by Eaton as part of the Series C lineup. It features a G-frame design and is classified as a complete breaker with fixed thermal and fixed magnetic trip types. This two-pole circuit breaker is rated for 30 A and operates at voltages of 480Y/277 Vac and 125/250 Vdc, with a frequency range of 50/60 Hz. Designed for reliability and durability, it is suitable for various applications requiring circuit protection in commercial and industrial settings.
Technical Specifications
|
Product Name |
Eaton Series C complete molded case circuit breaker |
|
Catalog Number |
GHB2030 |
|
UPC |
786679911211 |
|
Product Length/Depth |
2.63 in |
|
Product Height |
4 in |
|
Product Width |
2 in |
|
Product Weight |
1.15 lb |
|
Type |
Molded case circuit breaker |
|
Amperage Rating |
30 A |
|
Voltage Rating |
480Y/277 Vac, 125/250 Vdc |
|
Trip Type |
Fixed thermal, fixed magnetic |
|
Circuit Breaker Type |
GHB |
|
Circuit Breaker Frame Type |
Complete breaker |
|
Series |
Series C |
|
Frame |
G |
|
Frequency Rating |
50/60 Hz |
|
Interrupt Rating |
14 kAIC at 480Y/277 Vac |
|
|
65 kAIC at 240 Vac |
|
Number of Poles |
Two-pole |
Information About GHB2030
The GHB2030 is a molded case circuit breaker manufactured by Eaton as part of the Series C product line. It is designed with a G-frame and bears the model designation GHB. This circuit breaker is a complete unit with fixed thermal and fixed magnetic trip types, ensuring reliable operation. It is configured as a two-pole device with an amperage rating of 30 A.
In terms of voltage compatibility, the GHB2030 is suitable for use in electrical systems operating at 480Y/277 volts AC and 125/250 volts DC. It is engineered to function across a frequency range of 50/60 Hz, making it adaptable to various power systems.
The Eaton GHB2030 is constructed to provide efficient circuit protection, featuring an interrupt rating of 14 kAIC at 480Y/277 volts AC and 65 kAIC at 240 volts AC. This ensures that the circuit breaker can safely interrupt fault currents to prevent damage to equipment and ensure the safety of personnel.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
