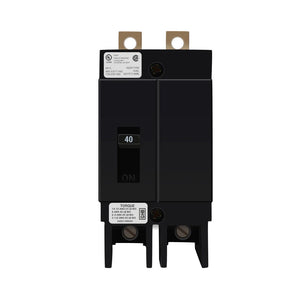

GHB2040 | Eaton Molded Case Circuit Breaker
- Regular price
- $155.00
- Sale price
- $155.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GHB2040
Description
The GHB2040 is an Eaton Series C complete molded case circuit breaker. It is classified as a G-frame, GHB type. This circuit breaker features fixed thermal and fixed magnetic trip types. It is a two-pole breaker with a 40 A current rating. The voltage ratings are 480Y/277 Vac and 125/250 Vdc. It operates at a frequency of 50/60 Hz. The breaker is designed as a complete unit, providing both overload and short-circuit protection.
Technical Specifications
|
PRODUCT NAME |
Eaton Series C complete molded case circuit breaker |
|
CATALOG NUMBER |
GHB2040 |
|
UPC |
786679911228 |
|
PRODUCT LENGTH/DEPTH |
2.63 in |
|
PRODUCT HEIGHT |
4 in |
|
PRODUCT WIDTH |
2 in |
|
PRODUCT WEIGHT |
1.15 lb |
|
TYPE |
Molded case circuit breaker |
|
AMPERAGE RATING |
40 A |
|
VOLTAGE RATING |
480Y/277 Vac, 125/250 Vdc |
|
TRIP TYPE |
Fixed thermal, fixed magnetic |
|
CIRCUIT BREAKER TYPE |
GHB |
|
CIRCUIT BREAKER FRAME TYPE |
Complete breaker |
|
SERIES |
Series C |
|
FRAME |
G |
|
FREQUENCY RATING |
50/60 Hz |
|
INTERRUPT RATING |
14 kAIC at 480Y/277 Vac |
|
|
65 kAIC at 240 Vac |
|
NUMBER OF POLES |
Two-pole |
Information About GHB2040
The GHB2040 is a molded case circuit breaker manufactured by Eaton. It belongs to the Series C range of complete molded case circuit breakers. Identified as a G-frame breaker with the designation GHB, it operates as a complete unit with fixed thermal and fixed magnetic trip mechanisms. This breaker is configured as a two-pole device, capable of handling a maximum current of 40 A.
The voltage ratings supported by the GHB2040 are 480Y/277 Vac for alternating current (AC) and 125/250 Vdc for direct current (DC) systems. It is engineered to operate within a frequency range of 50/60 Hz, making it compatible with standard electrical systems.
The GHB2040 is designed to provide reliable protection against overloads and short circuits in electrical circuits. The fixed thermal trip mechanism guards against overload conditions by detecting excessive heat generated by prolonged current flow. Simultaneously, the fixed magnetic trip mechanism responds swiftly to short circuits by utilizing magnetic forces, ensuring rapid circuit interruption.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
