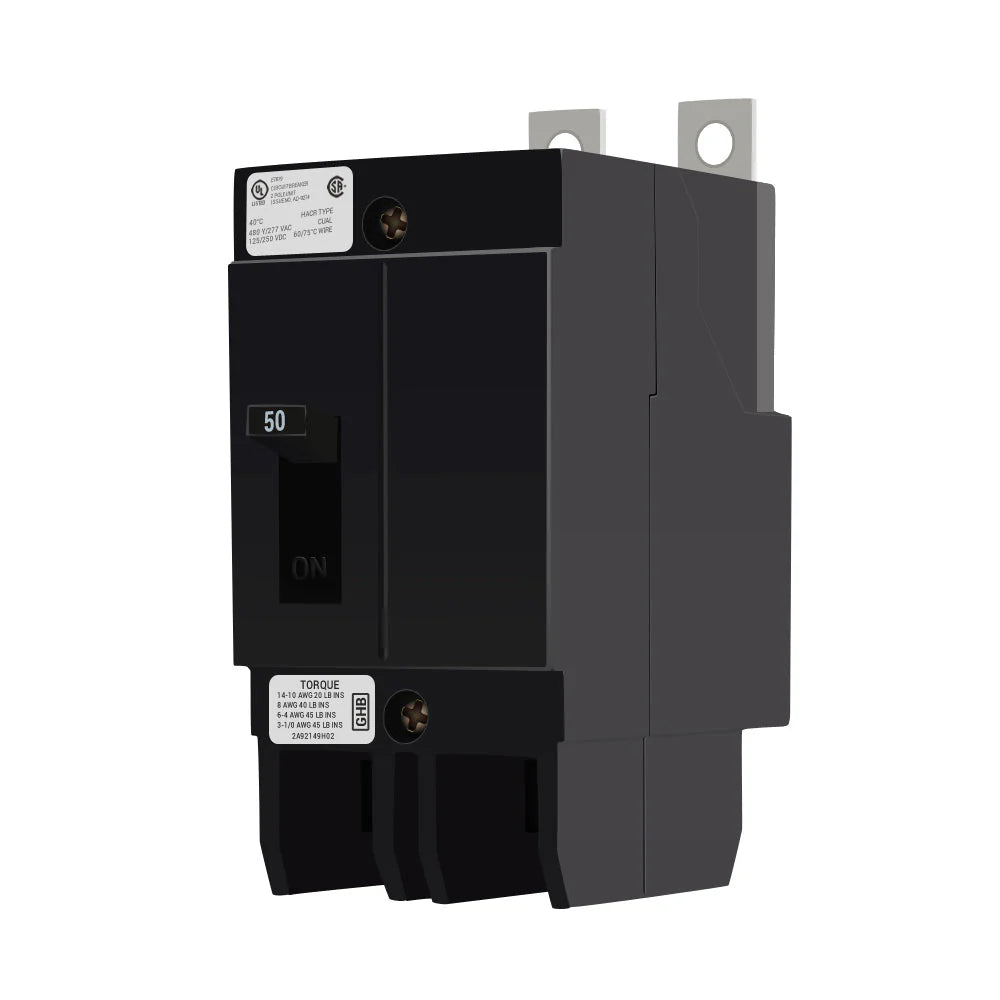

GHB2050 | Eaton Series C Complete Molded Case Circuit Breaker
- Regular price
- $267.00
- Sale price
- $267.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: GHB2050
Description
The GHB2050 is a molded case circuit breaker manufactured by Eaton as part of the Series C product line. Classified under the G-frame category, it bears the GHB designation. This circuit breaker operates as a complete unit, featuring fixed thermal and fixed magnetic trip mechanisms. Designed with two poles, the GHB2050 has a current rating of 50 A. It operates at a voltage of 480Y/277 Vac and 125/250 Vdc, with a frequency rating of 50/60 Hz.
Technical Specifications
|
Product Name |
Eaton Series C complete molded case circuit breaker |
|
Catalog Number |
GHB2050 |
|
UPC |
786679911235 |
|
Product Length/Depth |
2.63 in |
|
Product Height |
4 in |
|
Product Width |
2 in |
|
Product Weight |
1.05 lb |
|
Type |
Molded case circuit breaker |
|
Amperage Rating |
50 A |
|
Voltage Rating |
480Y/277 Vac, 125/250 Vdc |
|
Trip Type |
Fixed thermal, fixed magnetic |
|
Circuit Breaker Type |
GHB |
|
Circuit Breaker Frame Type |
Complete breaker |
|
Series |
Series C |
|
Frame |
G |
|
Frequency Rating |
50/60 Hz |
|
Interrupt Rating |
14 kAIC at 480Y/277 Vac, 65 kAIC at 240 Vac |
|
Number of Poles |
Two-pole |
Information About GHB2050
The GHB2050 is a molded case circuit breaker manufactured by Eaton as part of the Series C product line. Classified under the G-frame category, it operates as a complete unit, featuring fixed thermal and fixed magnetic trip mechanisms. This circuit breaker is designed with two poles and has a current rating of 50 A. It operates at voltages of 480Y/277 Vac and 125/250 Vdc, with a frequency rating of 50/60 Hz.
As a component of Eaton's Series C, the GHB2050 is engineered to provide reliable circuit protection in various electrical applications. Its molded case design ensures durability and protection against environmental factors. With fixed thermal and fixed magnetic trip types, it offers consistent and predictable operation under different load conditions.
The GHB2050's compatibility with two poles makes it suitable for protecting two-phase electrical systems. Its 50 A current rating allows it to handle moderate power loads effectively. The voltage ratings of 480Y/277 Vac and 125/250 Vdc enable versatile application across different voltage systems.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
