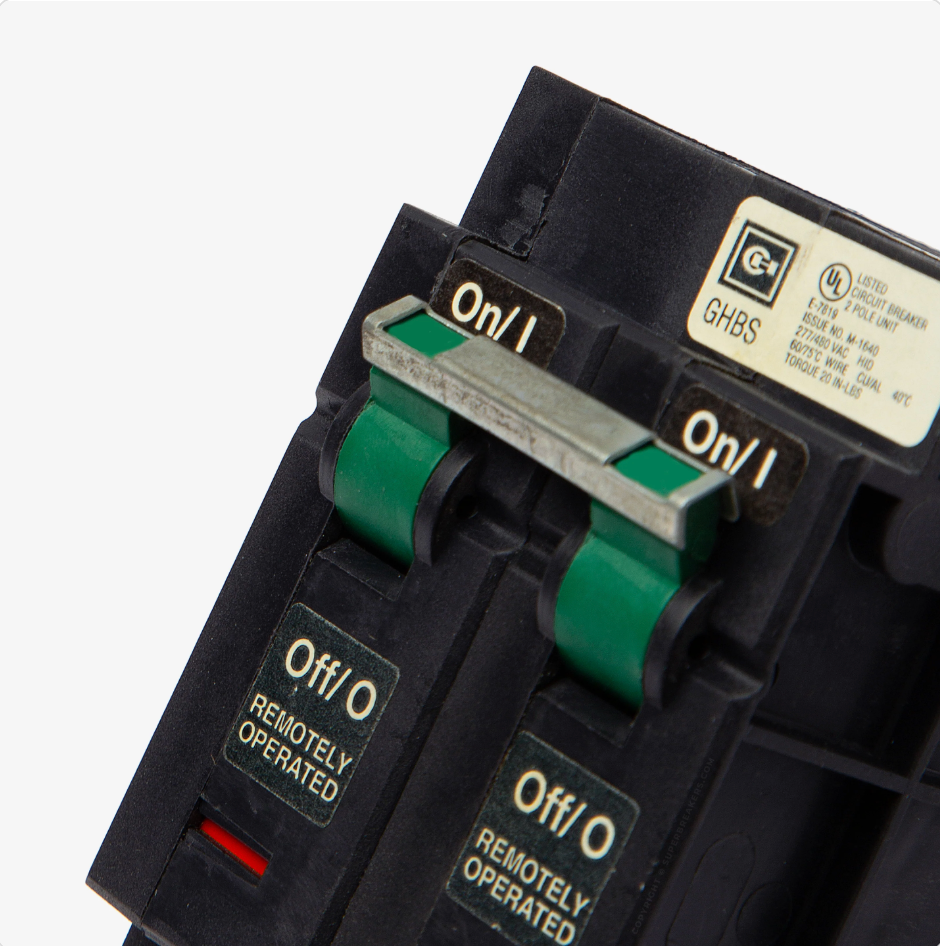

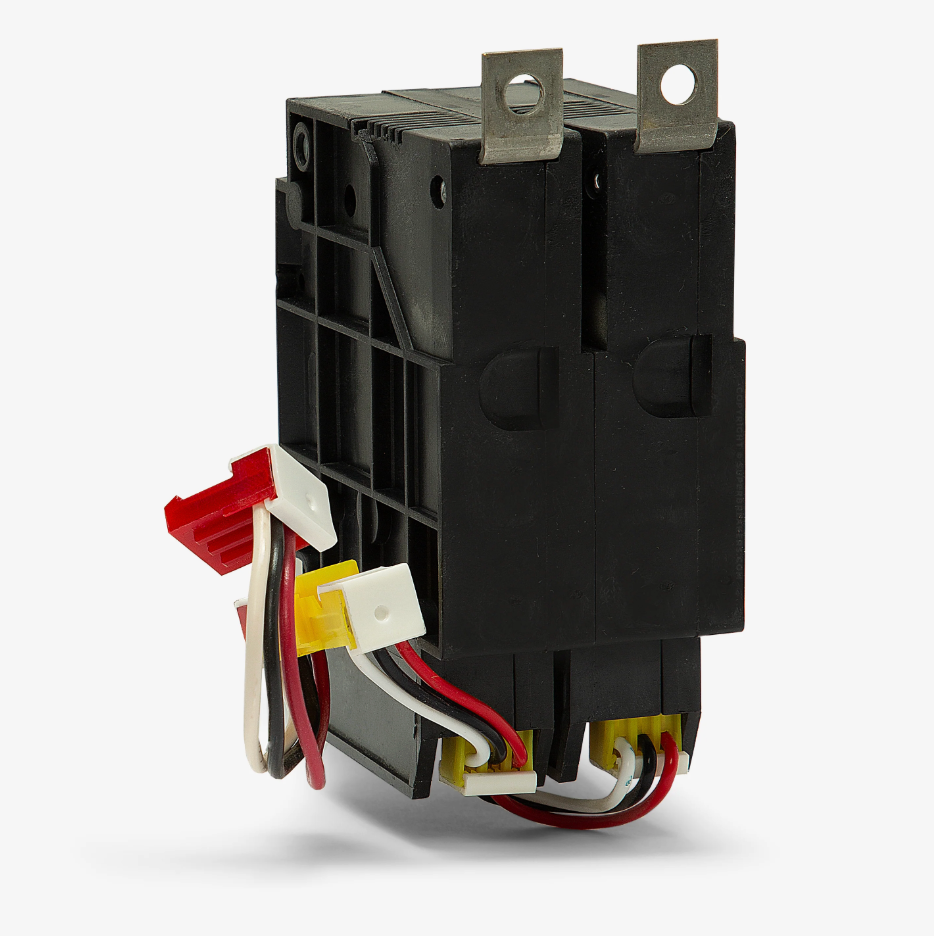

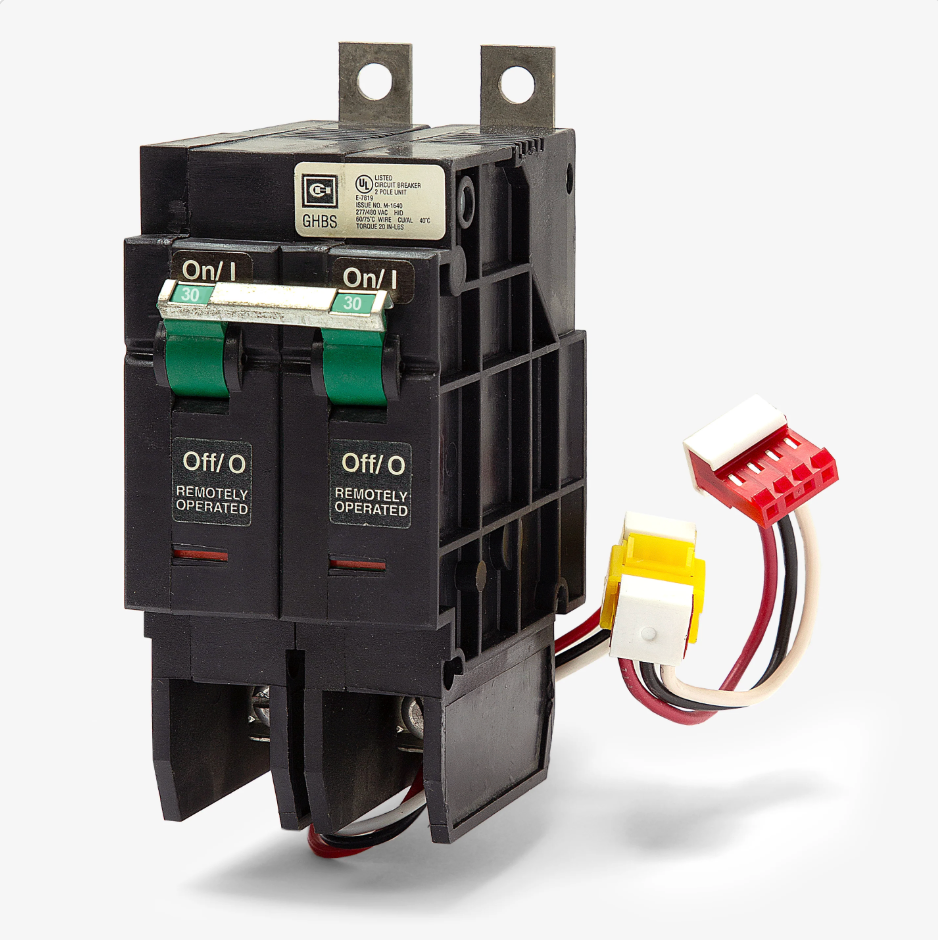

GHQRSP2030 | Eaton 2-Pole 30A 480V Molded Case Circuit Breaker, 14kAIC Thermal Magnetic
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GHQRSP2030
Description
The Eaton GHQRSP2030 is a 2-pole thermal magnetic molded case circuit breaker designed to protect electrical systems from overloads and short circuits. Rated at 30 amps and 480 volts AC, it provides long-time and instantaneous trip functions for dependable circuit protection. The GHQRSP2030 features a bolt-on mounting type and is ideal for use in 277/480V panelboards across commercial and light industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | GHQRSP2030 |
| Subcategory | Molded Case Circuit Breaker |
| Series | GHQRS (Quicklag) |
| Amperage Rating | 30 A |
| Voltage Rating | 480Y/277 VAC |
| Number of Poles | 2 |
| Phase | Single Phase |
| Interrupting Rating | 14 kAIC @ 277V |
| Trip Type | Thermal Magnetic (Long-Time and Instantaneous) |
| Mounting Type | Bolt-On |
| Connection Type | Bolt-On |
| Terminal Type | Line Side Lug |
| Protection Type | Overload and Short Circuit |
| Certifications | UL Listed, CSA Approved, HID Rated |
| Frequency | 50/60 Hz |
| For Use With | 277/480V AC Panelboards |
| Temperature Rating | 40 °C |
| Dimensions (H × W × D) | 7.5 × 8 × 9 in |
| Weight | 3 lb |
Information About GHQRSP2030
The GHQRSP2030 is part of Eaton’s GHQRS Quicklag series of molded case circuit breakers, built for reliability and consistent performance in high-voltage systems. It incorporates a thermal magnetic trip mechanism with both long-time and instantaneous protection characteristics, ensuring safety and accuracy during fault conditions. The breaker is UL listed and HID rated, making it suitable for lighting, branch circuit, and motor control applications. Designed for bolt-on mounting, it integrates easily into Eaton or compatible panelboards for straightforward installation and maintenance.
Key Features:
- Thermal Magnetic Trip Unit: Provides precise long-time and instantaneous protection against overloads and short circuits.
- High Voltage Operation: Rated for 480V AC systems with a 30A current capacity.
- Interrupting Capacity: Delivers a 14kAIC rating at 277V for secure fault interruption.
- Bolt-On Mounting: Ensures a stable, vibration-resistant installation in panelboard systems.
- UL and CSA Certified: Meets recognized safety and performance standards for electrical protection devices.
- HID Rated: Suitable for use with high-intensity discharge lighting systems.
- Durable Molded Case Design: Provides mechanical strength and long-term reliability under continuous operation.
- Compact Two-Pole Configuration: Ideal for branch circuit and lighting control applications in limited space environments.
The GHQRSP2030 delivers the reliability and precision required for safe, consistent electrical distribution in commercial and industrial settings.
