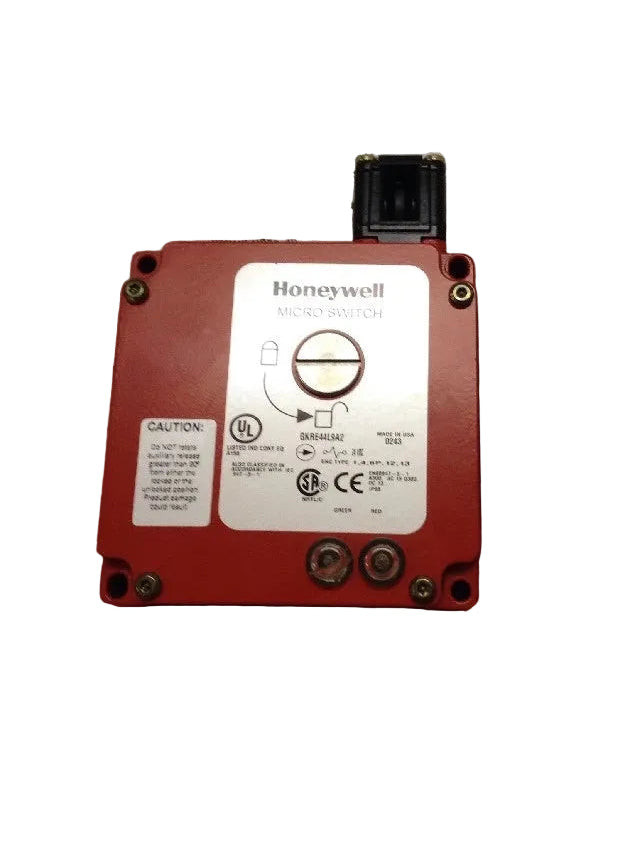

GKRE44L9A2 | Honeywell Solenoid Safety Interlock Switch with Spring-Loaded Key
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GKRE44L9A2
Description
The Honeywell GKRE44L9A2 is a solenoid safety interlock switch designed to ensure safe machine operation by controlling access to guarded areas. This model combines a rugged metal housing with a spring-loaded key mechanism to prevent machine access until hazardous motion has stopped. It is intended for use in industrial machinery requiring high-reliability safety interlocking.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Switches |
| Part Number | GKRE44L9A2 |
| Subcategory | Safety Switches |
| Product Type | Solenoid safety interlock switch |
| Series | MICRO SWITCH GKR Series |
| Contact Configuration | 2NC/2NO |
| Contact Operation | Slow action, break-before-make (BBM) |
| Key Style | Spring-loaded, side-to-side key entry |
| Head Position | Head to the right |
| Housing Material | Epoxy-coated die-cast zinc |
| Conduit Entry | 1/2 in NPT |
| Environmental Sealing | IP68 class design; NEMA 1, 4, 6P, 12, 13 |
| Manual Override | Front-cover manual override |
| Weight | 1.2 kg |
Information About GKRE44L9A2
The GKRE44L9A2 is a MICRO SWITCH GKR Series solenoid safety interlock switch engineered for industrial safety applications. It features a die-cast zinc housing with epoxy coating, providing resistance to shock, vibration, and industrial contaminants. The switch uses a trapped, spring-loaded side-to-side key system that ensures access is only granted when safety conditions are met. It is compatible with machine guards, safety gates, and access doors in automated and high-risk industrial environments.
Key Features:
-
Solenoid safety interlock design: Prevents access until hazardous machine conditions are cleared
-
Spring-loaded side-to-side key: Ensures controlled and reliable actuator engagement
-
Dual contact monitoring: Provides independent monitoring of key position and solenoid status
-
2NC/2NO slow-action contacts: Supports safety circuits with break-before-make operation
-
Rugged metal housing: Epoxy-coated die-cast zinc construction for industrial durability
-
Manual override function: Allows emergency access when required
-
High ingress protection rating: Sealed to IP68 and suitable for harsh environments
The GKRE44L9A2 delivers the reliability and precision required for industrial machine safety and access control systems.
