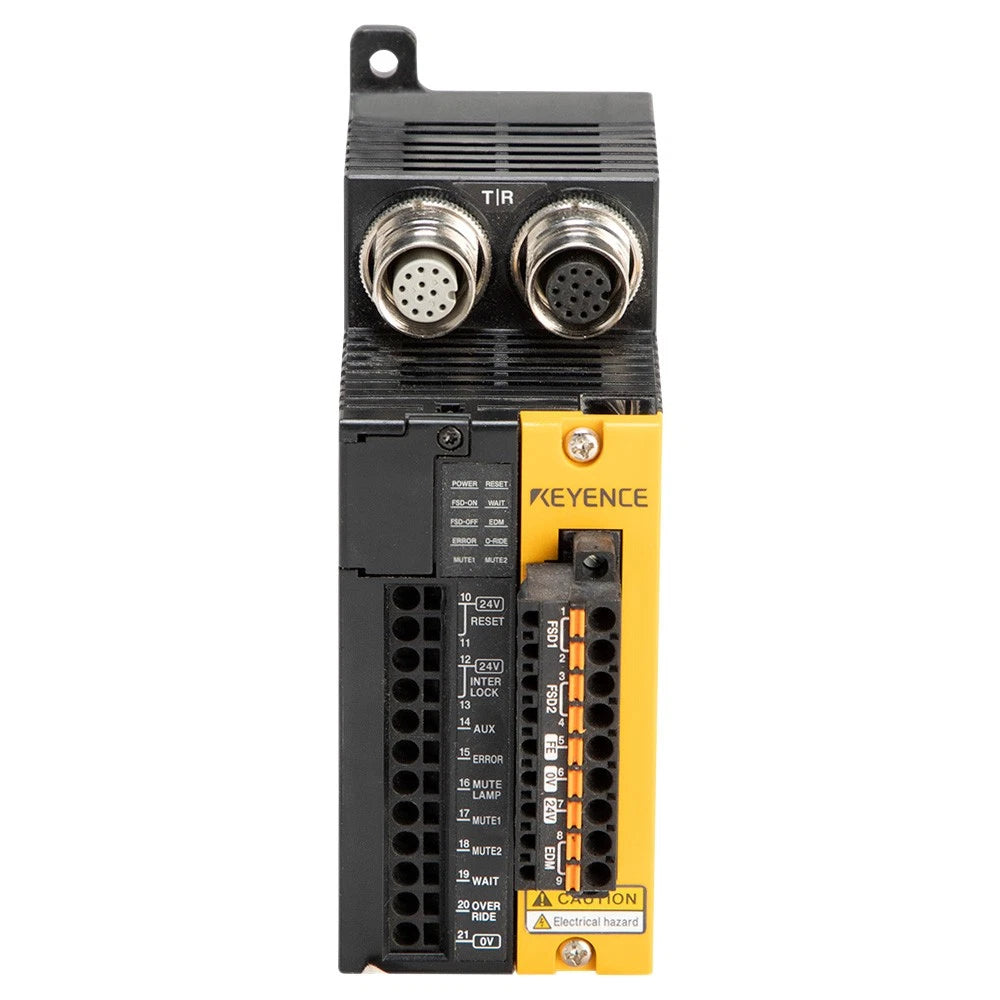

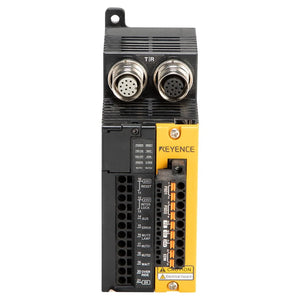

GL-T11R | Keyence Safety Relay Terminal for GL-R Series, 24 VDC, Dual FSD Outputs
- Regular price
- $347.00
- Sale price
- $347.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: GL-T11R
Description
The Keyence GL-T11R is a dedicated safety relay terminal designed for use with the GL-R Series safety light curtains. It provides reliable safety signal control and monitoring with high electrical durability, fast response times, and multiple input/output options for industrial automation safety systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Safety Systems |
| Part Number | GL-T11R |
| Subcategory | Light Curtain |
| Applicable Model | GL-R Series |
| Relay Output | 250 VAC 6 A / 30 VDC 6 A (resistive load) |
| Electrical Life-span | 100,000 cycles or more at rated load |
| Response Time (ON–OFF) | GL-R +10 ms |
| Response Time (OFF–ON) | GL-R +32 ms |
| AUX Output | Transistor (PNP/NPN), 50 mA max, 2.5 V residual voltage |
| Error Output | Available |
| Muting Lamp Output | 24 VDC incandescent or LED lamp (10–230 mA) |
| External Inputs | EDM, Wait, Reset, Muting, Override |
| Input Voltage Levels | ON: 5 V–Power supply voltage; OFF: 0–3 V |
| Power Supply Voltage | 24 VDC ±10%, Class 2 |
| Current Consumption | 100 mA max |
| Enclosure Rating | IP20 (must be installed in IP54+ panel) |
| Operating Temperature Range | -10 to +55 °C (14 to 131 °F) |
| Storage Temperature Range | -25 to +60 °C (-13 to 140 °F) |
| Operating Humidity | 15–85% RH (no condensation) |
| Storage Humidity | 15–95% RH |
| Altitude Limit | 2000 m or less |
| Vibration Resistance | 10–55 Hz, 0.7 mm amplitude, 20 sweeps/axis |
| Shock Resistance | 100 m/s² (approx. 10 G), 16 ms pulse |
| Safety Standards | EN61496-1, ISO13849-1 (PLe), UL508, EN50178 |
| Material | Polycarbonate |
| Weight | Approx. 310 g (0.68 lb) |
Information About GL-T11R
The GL-T11R is part of Keyence’s GL-R Series safety system accessories, engineered for dependable safety relay control in hazardous machinery and equipment. It operates on a 24 VDC power supply and features dual FSD relay outputs rated for up to 250 VAC or 30 VDC loads. The unit includes multiple auxiliary and muting outputs, external input compatibility, and advanced safety certifications including IEC61496-1 and ISO13849-1. Its polycarbonate housing, IP20 rating, and vibration/shock resistance ensure long-term operation when installed in protected control panels.
Key Features:
- Dedicated for GL-R Series: Specifically designed for use with Keyence GL-R safety light curtains.
- High Relay Capacity: Supports 250 VAC 6 A or 30 VDC 6 A resistance loads for flexible safety control.
- Durable Electrical Life: Rated for over 100,000 switching cycles under standard load conditions.
- Fast Response Time: Achieves ON–OFF within +10 ms and OFF–ON within +32 ms for quick safety reaction.
- Multiple Output Options: Includes transistor-type AUX output, error output, and muting lamp output.
- Wide Environmental Range: Operates reliably from -10 to +55 °C and up to 85% relative humidity.
- Certified Safety Standards: Complies with EN61496-1, ISO13849-1 (PLe), UL508, and FCC standards.
- Robust Construction: Polycarbonate body with IP20 protection for control panel installation.
- Vibration & Shock Resistant: Withstands 10–55 Hz vibration and 100 m/s² shock testing.
- Compact and Lightweight: Easy to integrate into existing safety control systems.
The GL-T11R delivers the reliability and performance required for advanced machine guarding and safety relay operations in automated environments.
