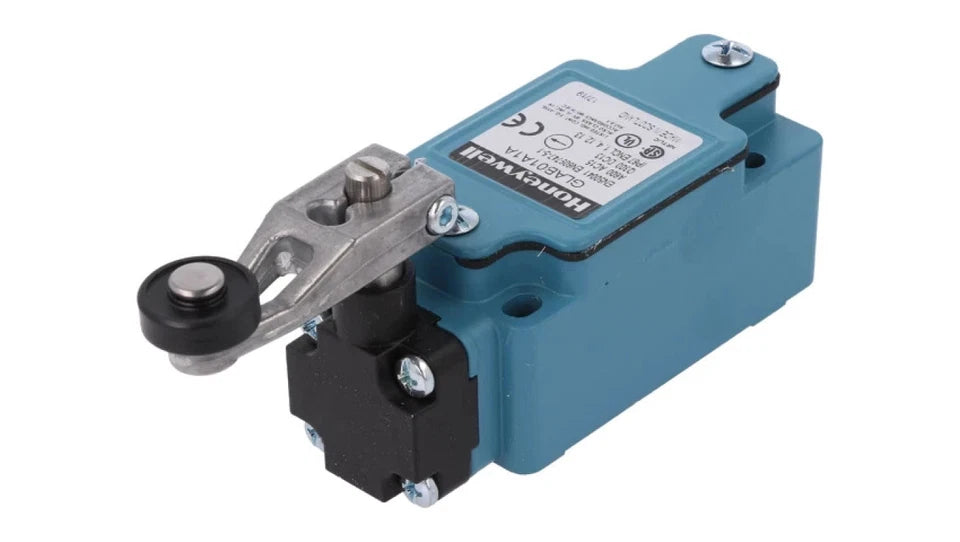

GLAB01A1A | Honeywell GLA Series SPDT Sealed Limit Switch 10A IP67
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GLAB01A1A
Description
The Honeywell GLAB01A1A is a sealed SPDT limit switch designed for industrial position sensing and control applications. It features a lever actuator with snap-action contacts rated up to 10A at 600 VAC or 250 VDC. Built with an IP67-rated enclosure and zinc housing, it ensures reliable performance in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Electromechanical Components |
| Part Number | GLAB01A1A |
| Subcategory | Limit Switches |
| Series | GLA |
| Contact Form | SPDT |
| Current Rating | 10 A |
| Contact Current Rating | 6 A |
| Voltage Rating AC | 600 VAC |
| Voltage Rating DC | 250 VDC |
| Actuator Type | Lever |
| Mounting Style | Chassis Mount |
| Termination Style | Quick Connect |
| Housing Material | Zinc |
| IP Rating | IP67 |
| NEMA Rating | 1, 4, 12, 13 |
| Operating Temperature Range | -25°C to +85°C |
| Height | 82 mm |
| Length | 42 mm |
| RoHS Compliant | Yes |
| Weight | 1.126 lb |
Information About GLAB01A1A
The GLAB01A1A is part of Honeywell’s GLA Series limit switches, engineered for rugged industrial automation systems. It incorporates a single pole double throw (SPDT) contact configuration supporting both normally open and normally closed circuits. The chassis-mount design with quick connect termination enables secure installation and efficient wiring. With IP67 sealing and multiple NEMA ratings (1, 4, 12, 13), it is suitable for environments exposed to dust, moisture, and industrial contaminants.
Key Features:
- SPDT Snap-Action Contacts: Provides N.O./N.C. switching flexibility for control circuits.
- High Electrical Rating: Supports up to 10A at 600 VAC and 250 VDC.
- IP67 Sealed Enclosure: Dust-tight and waterproof for harsh environments.
- Lever Actuator: Enables accurate mechanical engagement in motion control systems.
- Zinc Housing Construction: Offers durability and mechanical protection.
- Wide Operating Temperature Range: Operates from -25°C to +85°C.
- Chassis Mount Installation: Ensures stable mounting within equipment frames.
- RoHS Compliant: Manufactured to meet environmental compliance standards.
The GLAB01A1A delivers the reliability and precision required for industrial limit switching and position detection applications.
