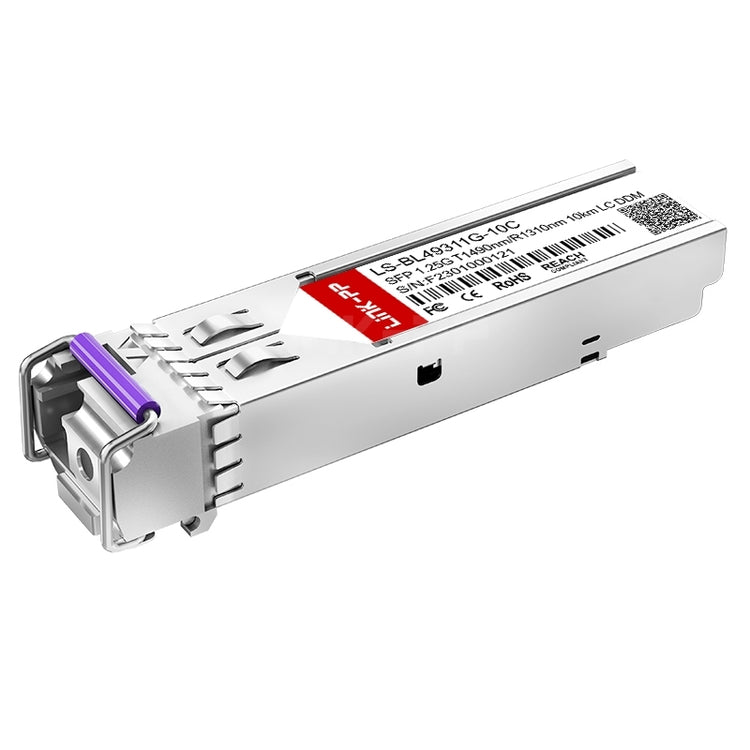

GLC-BX-D | Cisco Compatible 1G BIDI 20KM SMF SFP Transceiver
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GLC-BX-D
Description
The GLC-BX-D is a Cisco-compatible bidirectional (BiDi) SFP transceiver designed for high-performance, single-fiber communication over long distances. It enables Gigabit Ethernet connectivity up to 20 km over single-mode fiber, using a single strand of fiber to transmit and receive data simultaneously.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Transceivers
|
| Part Number | GLC-BX-D |
| Subcatecory |
SFP Modules
|
| Wavelength (Tx/Rx) | 1490 nm / 1310 nm |
| Transmit Power Range |
-3 to -9 dBm |
| Receive Power Range | -3 to -19.5 dBm |
| Maximum Distance | 20 km |
| Optical Budget |
13 dB |
| Fiber Type | Single-Mode Fiber (SMF) |
| Data Rate | 1.063 – 1.25 Gbps |
| Operating Temperature Range | 0 to 70°C (32 to 158°F) |
| Form Factor | SFP (Hot-swappable) |
| Dimensions (H x W x D) | 8.5 x 13.4 x 56.5 mm |
| Weight | 75 g |
Information About GLC-BX-D
The GLC-BX-D is a 1G BiDi SFP transceiver that operates over Single-Mode Fiber (SMF). It transmits data at 1490 nm and receives at 1310 nm, allowing duplex data transmission on a single optical fiber. With a data rate range of 1.063–1.25 Gbps, this transceiver supports link lengths of up to 20 km. It is fully Cisco-compatible, making it ideal for upgrading or expanding existing networks without proprietary limitations.
Key Features:
-
Wavelengths: Transmit at 1490 nm and receive at 1310 nm, supporting BiDi communication on one fiber.
-
Operating Distance: Supports up to 20 km on G.652 single-mode fiber.
-
Optical Budget: 13 dB, with max channel insertion loss of 5.5 dB.
-
Data Rate: 1.063 to 1.25 Gbps, suitable for Gigabit Ethernet and Fibre Channel.
-
Temperature Range: Commercial temperature rating of 0 to 70°C for typical networking environments.
-
Compact Design: Standard SFP form factor with dimensions of 8.5 x 13.4 x 56.5 mm.
The GLC-BX-D is ideal for long-range, single-fiber applications where fiber availability is limited and cost-effective deployment is critical.
