GLC-LH-SMD | Cisco Optical Transceiver Module

Description

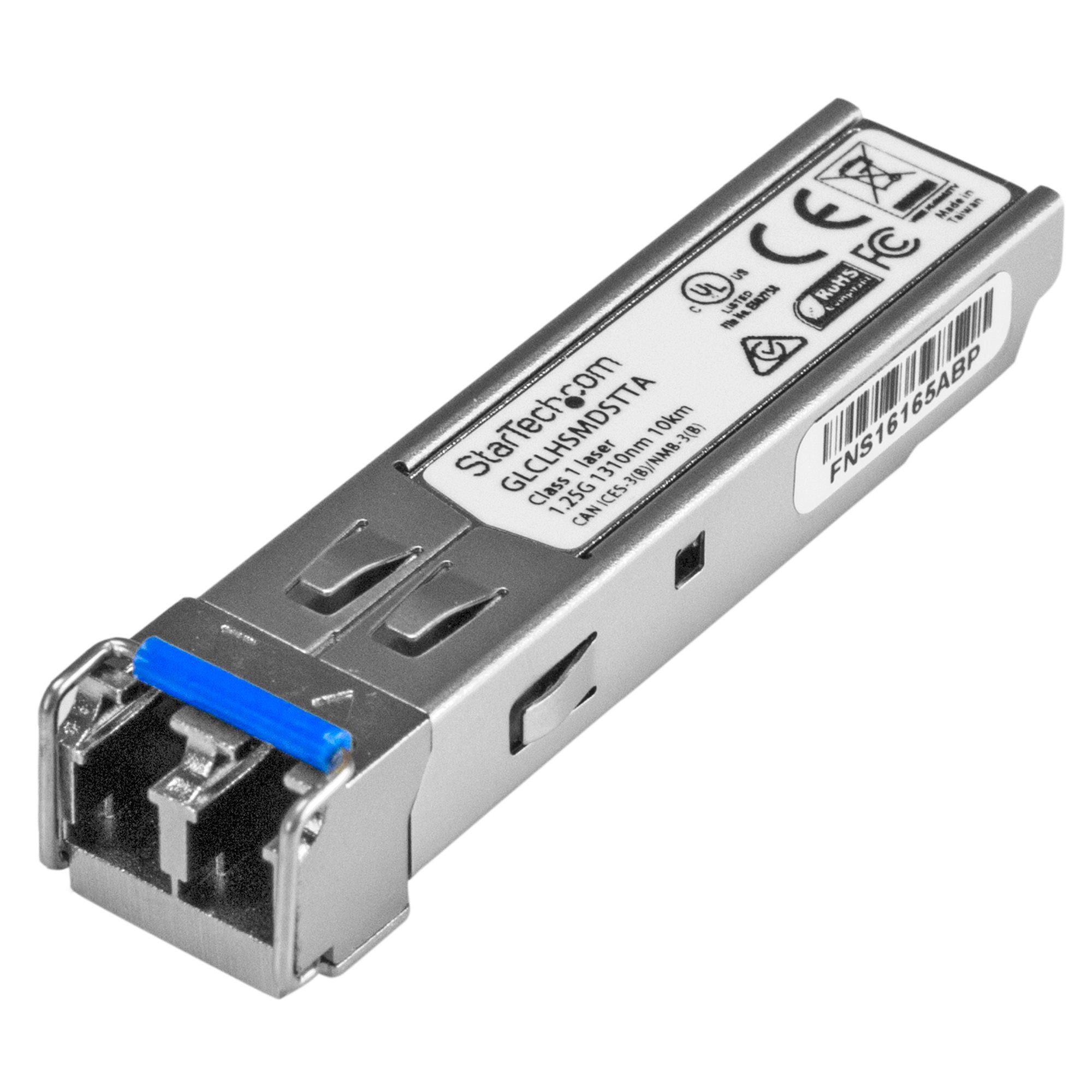

The Cisco GLC-LH-SMD is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet and Fibre Channel applications.

Technical Specifications

Information About GLC-LH-SMD

The Cisco GLC-LH-SMD is a hot-swappable Small Form-Factor Pluggable (SFP) transceiver module designed to provide Gigabit Ethernet connectivity over both single-mode and multimode fiber optic cables. It supports the IEEE 802.3z 1000BASE-LX/LH standard and is commonly used to link Cisco switches and routers to fiber networks.

Key Features:

• Data Rate: 1 Gbps

• Wavelength: 1310 nm

• Fiber Support:

  • Single-Mode Fiber (SMF): Up to 10 km (6.2 miles)

  • Multimode Fiber (MMF): Up to 550 meters (1,804 feet) with mode conditioning patch cable

• Connector Type: Duplex LC

• Digital Optical Monitoring (DOM): Supported

• Hot-Swappable: Yes

• Operating Temperature Range: 0°C to 70°C

• Power Consumption: Less than 1W

• Versatile Fiber Compatibility: Supports both SMF and MMF, allowing flexible deployment in various network environments.

• Digital Diagnostics Monitoring (DOM): Provides real-time monitoring of parameters such as optical output power, input power, temperature, laser bias current, and transceiver supply voltage.

• Standard Compliance: Fully compliant with the IEEE 802.3z 1000BASE-LX standard.

• Form Factor: Standard SFP, ensuring compatibility with a wide range of Cisco networking equipment.
