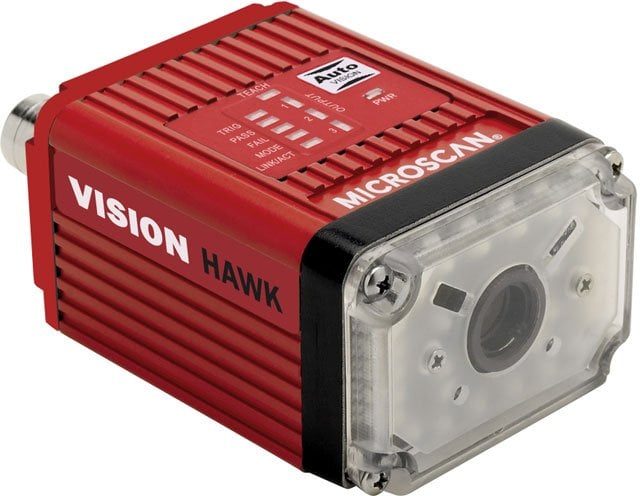

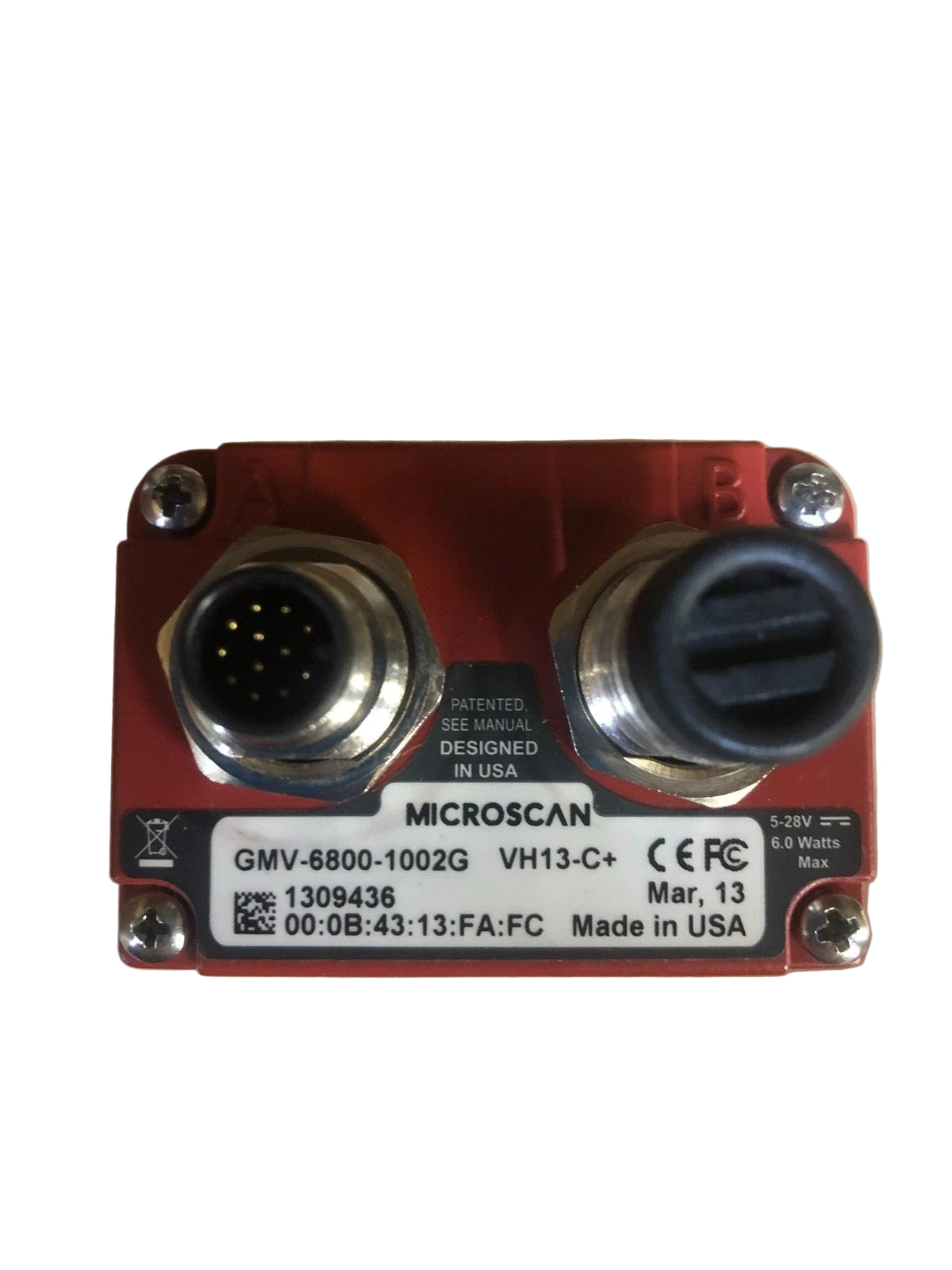

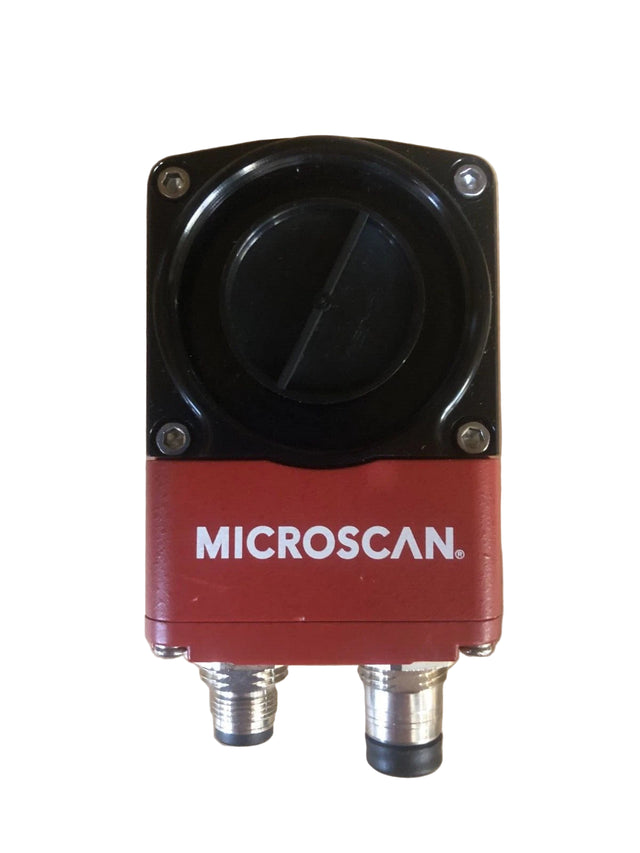

GMV-6800-1002G | Omron Vision Hawk Fixed Barcode Scanner WVGA/SXGA Autofocus IP67
- Regular price
- $1,150.00
- Sale price
- $1,150.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: GMV-6800-1002G
Description
The Omron GMV-6800-1002G Vision Hawk Fixed Barcode Scanner is a high-performance industrial smart camera designed for 1D and 2D barcode reading in automation, logistics, and manufacturing environments. Equipped with a liquid lens autofocus system and high-output LED illumination, it captures barcodes at distances from 1 inch to infinity with exceptional clarity. The device features RS-232 and Ethernet interfaces, housed in a durable IP65/67-rated die-cast aluminum enclosure, ensuring reliable operation in demanding industrial settings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Microscan |
| Category | Barcode and Vision Systems |
| Part Number | GMV-6800-1002G |
| Subcategory | Fixed Barcode Scanners |
| Series | Vision HAWK Series |
| Type | Smart Camera / Fixed-Mount Barcode Scanner |
| Sensor Type | CMOS/CCD Progressive Scan |
| Resolution | WVGA (752×480) / SXGA (1280×960) |
| Focal Range | 1" (33 mm) to ∞ (Liquid Lens Autofocus) |
| Light Source | High-Output LEDs + 655 nm Laser Aimer |
| Light Source Life | 50,000 hours @ 25°C |
| Symbologies Supported | Data Matrix, QR, Micro QR, Aztec, PDF417, GS1 Databar, Code 39, Code 128, UPC/EAN, and Postal Codes |
| Communication Interfaces | RS-232, Ethernet (TCP/IP, EtherNet/IP) |
| Protocols Supported | Point-to-Point, XON/XOFF, TCP/IP, EtherNet/IP (Visionscape) |
| I/O Connections | 3 Discrete Outputs, 1 Learn/Trigger Input (Optoisolated) |
| Power Supply | 5–28 VDC |
| Power Consumption | 105 mA @ 24 VDC (typical) |
| Enclosure Rating | IP65/67 (Die-Cast Aluminum Housing) |
| Mounting | Fixed / Bracket Mount |
| Indicators | Pass, Fail, Trigger, Mode, Power, Network Activity, I/O |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -29°C to 70°C |
| Humidity | Up to 90% (non-condensing) |
| Dimensions (H × W × D) | 1.59 × 2.27 × 3.79 in (40.5 × 57.6 × 96.3 mm) |
| Weight | 10 oz (280 g) |
| Certifications | CE, UL/cUL, FCC, CDRH, CB, BSMI, RoHS/WEEE |
| ISO Certification | ISO 9001:2008 |
| Application | Industrial Barcode Reading, Traceability, Inspection |
| Country of Origin | Japan |
Information About GMV-6800-1002G
The GMV-6800-1002G belongs to the Omron Microscan Vision HAWK Series, a family of fixed-mount barcode scanners and smart cameras developed for precision code reading and inspection. It integrates autofocus optics, CMOS/CCD imaging, and advanced decoding algorithms to support a full range of 1D, stacked, and 2D symbologies, including Data Matrix, QR, and PDF417. Designed for rugged applications, the unit features a die-cast aluminum housing rated to IP67, providing dust and moisture resistance. With flexible RS-232 and Ethernet connectivity, software-adjustable shutter speed, and multiple I/O control options, the GMV-6800-1002G provides powerful performance for automated identification and traceability systems across packaging, electronics, and material handling industries.
Key Features:
- Advanced Imaging System: Progressive-scan CMOS or CCD sensor with WVGA/SXGA resolution options for high-quality barcode capture.
- Liquid Lens Autofocus: Adjustable focal range from 1 inch (33 mm) to infinity for dynamic scanning distances.
- Comprehensive Code Support: Reads 1D, 2D, stacked, and postal symbologies including Data Matrix, QR, PDF417, and GS1 Databar.
- Rugged Industrial Housing: Die-cast aluminum enclosure rated IP65/67 for harsh environments.
- Flexible Communication Options: RS-232 or Ethernet (TCP/IP, EtherNet/IP, Visionscape) for integration with control systems.
- Integrated Illumination: High-output LEDs ensure consistent lighting for barcodes on varying surfaces.
- User Feedback Indicators: LED status for power, pass/fail, trigger, and network activity.
- Wide Power Range: Operates on 5–28 VDC with low current draw for efficient system integration.
The GMV-6800-1002G delivers the reliability and precision required for industrial barcode reading, part identification, and automated inspection applications.
