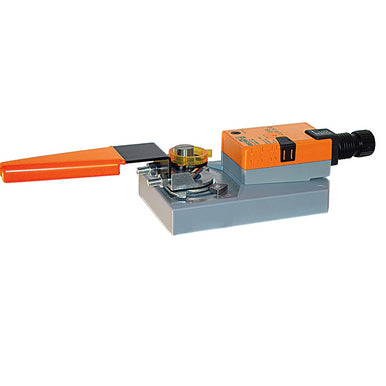

GMX24-MFT-X1 | Belimo Programmable Valve Actuator Non Spring Return 360 In Lb 24 V
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GMX24-MFT-X1
Description
The Belimo GMX24-MFT-X1 is a high-torque, non-spring return valve actuator designed for precise modulating control in HVAC and building automation systems. Operating on AC/DC 24 V, it features MFT programmable functionality to support multiple control modes and accurate valve positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Control Components |
| Part Number | GMX24-MFT-X1 |
| Subcategory | Valve Actuators |
| Actuator Type | Electric, Non-Spring Return, Programmable |
| Nominal Voltage | AC/DC 24 V |
| Frequency | 50/60 Hz |
| Voltage Range | AC ±20%, DC ±10% |
| Power Consumption (Operation) | 4.5 W |
| Power Consumption (Rest) | 1.5 W |
| Transformer Sizing | 7 VA (Class 2) |
| Control Signal | 2–10 V (4–20 mA with resistor), MFT configurable |
| Input Impedance | 100 kΩ (2–10 V), 500 Ω (4–20 mA), 1500 Ω (PWM/On-Off/Floating) |
| Position Feedback | 2–10 V, max. 0.5 mA |
| Torque Output | 360 in-lb (40 Nm) |
| Angle of Rotation | Max. 95° (adjustable) |
| Running Time | 150 s / 90° (adjustable 90–150 s) |
| Overload Protection | Electronic, full rotation |
| Manual Override | External push button |
| Electrical Connection | 18 GA cable, 1 m, 1/2 in conduit |
| Degree of Protection | IP54 / NEMA 2 |
| Ambient Temperature | −30…50°C |
| Storage Temperature | −40…80°C |
| Ambient Humidity | Max. 95% RH, non-condensing |
| Weight | 4.9 lb (2.2 kg) |
Information About GMX24-MFT-X1
The GMX24-MFT-X1 is a Belimo MFT series actuator developed for applications requiring high torque and flexible control without spring return action. It supports a wide range of control modes including proportional voltage, current, floating point, and on/off operation, allowing seamless integration with diverse building automation platforms. The actuator’s programmable start and end points enable precise matching to valve travel and system requirements. Its robust mechanical design and integrated cabling make it suitable for demanding commercial HVAC installations.
Key Features
- High torque output: Delivers 360 in-lb of torque to reliably actuate large valves and dampers in demanding applications.
- MFT programmable control: Allows field configuration of control mode, signal type, operating range, and feedback parameters.
- Non-spring return operation: Provides smooth, motor-driven positioning where fail-safe spring action is not required.
- Multiple control modes: Supports 2–10 VDC, optional 4–20 mA, floating point, PWM, and on/off control from one actuator.
- Adjustable operating range: Variable start and end points allow accurate calibration to valve stroke and control strategy.
- Integrated position feedback: Supplies a configurable 2–10 V feedback signal for monitoring and closed-loop control.
- Electronic overload protection: Protects internal components throughout the full rotation range for long-term reliability.
The GMX24-MFT-X1 delivers the reliability and precision required for high-torque, programmable valve control in professional HVAC and building automation systems.
