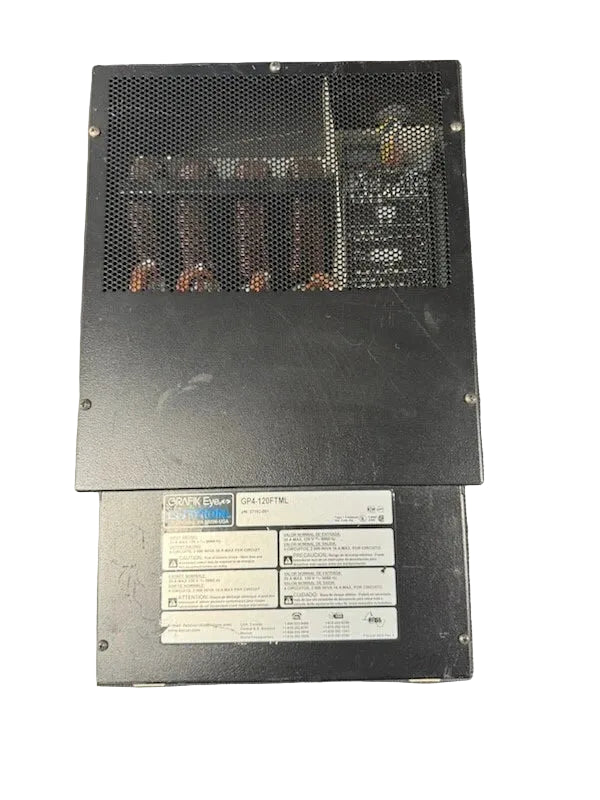

GP4-120FTML | Lutron 4-Circuit 120V GP Dimming Panel Feed-Through ML
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GP4-120FTML
Description
The Lutron GP4-120FTML is a 4-circuit dimming panel designed for integration with GRAFIK Eye lighting control systems. It operates at 120 V and features a feed-through configuration with main lugs for structured lighting distribution. The panel provides centralized dimming control for compatible load types in commercial and architectural installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting |
| Part Number | GP4-120FTML |
| Subcategory | Lighting Controller |
| Product Series | GP Dimming Panel |
| Number of Circuits | 4 |
| Rated Voltage | 120 V |
| Feed Type | Feed-Through with Main Lugs (FTML) |
| Enclosure Type | NEMA Type 1 (Indoor) |
| Cooling Method | Convection cooling via ribbed aluminum heat sink |
| Dimming Curve | Continuous Square Law |
| Load Compatibility | Incandescent, Halogen, MLV, Electronic Fluorescent Ballasts |
| Memory Retention | 10-Year power failure memory |
| Surge Protection | 6000 V / 3000 A |
| Voltage Regulation Technology | RTISS Filter Circuit |
| System Compatibility | GRAFIK Eye 4000, GRAFIK 5000/6000/7000, Quantum |
| Weight | 3.00 lbs |
Information About GP4-120FTML
The GP4-120FTML is part of the Lutron GP Dimming Panel series engineered for use with GRAFIK Eye 4000 control units and centralized GRAFIK and Quantum lighting systems. It incorporates four load circuits and supports 120 V operation with a feed-through main lug (FTML) configuration for streamlined electrical integration. The unit is housed in a NEMA Type 1 enclosure for indoor applications and uses a ribbed aluminum heat sink base for convection cooling without fans. It supports Square Law dimming for compatible lighting sources and includes system-level protection and reliability features for stable operation.
Key Features:
-
4 Load Circuits: Provides centralized control for four independent lighting zones.
-
120 V Operation: Designed for standard 120-volt electrical systems.
-
Feed-Through Main Lugs (FTML): Allows feed-through power distribution with main lug connection.
-
Square Law Dimming: Supports continuous dimming for compatible load types.
-
Broad Load Compatibility: Suitable for incandescent, halogen, magnetic low-voltage, and Lutron electronic fluorescent dimming ballasts.
-
10-Year Memory Retention: Restores last selected scene after power interruption.
-
RTISS Technology: Compensates for line voltage fluctuations to minimize visible flicker.
-
Arcless Relay Air-Gap Off: Ensures open load circuits when OFF is selected.
-
Surge Protection: Withstands voltage surges up to 6000 V and current surges up to 3000 A.
The GP4-120FTML delivers the reliability and precision required for integrated multi-zone lighting control systems.
