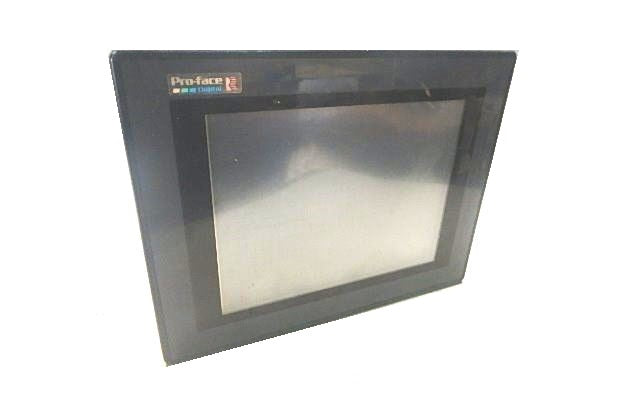

GP577R-TC11 | Pro-face 10.4 Inch 120VAC HMI Touchscreen Display

The Pro-Face GP577R-TC11 is a high-performance HMI (Human-Machine Interface) touchscreen display designed for industrial automation and control applications. It falls under the category of HMI/MMI/OIT (Operator Interface Terminals) and is specifically tailored as an operator interface for monitoring, controlling, and managing industrial processes. This 10.4-inch display is engineered to deliver precise and reliable performance in a range of industrial environments, offering the necessary visual clarity and durability to ensure smooth operation.

The GP577R-TC11 features a 10.4-inch TFT color LCD screen, providing a resolution of 640 x 480 pixels. The display is capable of rendering up to 64 colors, allowing for a clear and detailed representation of system parameters, process data, and controls. The high-contrast display ensures visibility even in challenging industrial conditions, where lighting may be less than ideal. The display area measures 211.2W x 158.4H mm, providing ample space for operators to view and interact with system information efficiently. Its ability to present complex data in an easy-to-understand format ensures that operators can quickly interpret the displayed information, minimizing the risk of operational errors.

This operator interface operates on an input voltage of 100V AC, making it compatible with standard industrial power supplies. The 100V AC input ensures stable power delivery, which is essential for maintaining consistent operation in industrial settings where power reliability is critical. The GP577R-TC11's power requirements are designed to meet the needs of a variety of applications, from manufacturing and processing plants to energy and transportation sectors.

One of the standout features of the GP577R-TC11 is its IP65f-rated enclosure, which ensures protection against dust, water, and other contaminants commonly found in industrial environments. This robust enclosure rating guarantees that the HMI will continue to operate effectively even in harsh conditions, such as areas with high moisture levels or exposure to particulate matter. The IP65f rating makes the GP577R-TC11 suitable for installations in environments where reliable performance under tough conditions is necessary to maintain productivity and minimize downtime.

The GP577R-TC11 also includes RDG-4 level support, which enhances its functionality by providing additional control and feedback capabilities. RDG-4 levels refer to the relay drive outputs that the unit supports, allowing the interface to control external devices or processes directly. This functionality makes the GP577R-TC11 a versatile tool for system integration, as it can not only monitor but also control critical aspects of industrial processes. This feature is particularly useful in applications where quick response times are needed to manage system variables or trigger automated actions.

Pro-Face, the manufacturer of the GP577R-TC11, is renowned for its high-quality industrial automation products, and this model continues that tradition of excellence. Built to withstand the demands of industrial environments, the GP577R-TC11 is constructed from durable materials that ensure long-term reliability and reduce maintenance requirements. Its rugged build and reliable performance make it an ideal solution for industrial settings where equipment durability is essential for continuous operations.

This HMI operates with GP-PRO/PBIII for Windows, a software platform designed for efficient setup, configuration, and operation of Pro-Face HMI devices. This software simplifies the process of creating, configuring, and managing the interface screens that operators use to control machinery and processes. The intuitive software platform allows operators and engineers to customize the HMI’s display and functionality to meet the specific requirements of their application, ensuring optimal performance and user interaction. The compatibility with GP-PRO/PBIII also ensures that the GP577R-TC11 can be easily integrated into existing control systems with minimal disruption.

In terms of physical dimensions, the GP577R-TC11 is designed to fit comfortably into control panels and operator stations. Its compact dimensions of 317W x 243H x 85D mm allow for easy installation in space-constrained environments without sacrificing functionality. The relatively slim depth of 85 mm ensures that the unit can be installed in panels with limited space behind the display, making it suitable for a wide range of industrial applications where space is a consideration.

Overall, the Pro-Face GP577R-TC11 is a versatile and durable HMI solution designed to meet the needs of modern industrial automation. Its 10.4-inch TFT color display provides clear and reliable data visualization, while its IP65f-rated enclosure ensures robust protection in challenging environments. The inclusion of RDG-4 level control adds further functionality, allowing operators to manage external devices and systems directly from the HMI. With its compatibility with GP-PRO/PBIII software and easy integration into existing systems, the GP577R-TC11 is a powerful tool for improving operational efficiency, reducing downtime, and enhancing control in industrial processes. Whether used in manufacturing, energy, or other automation-intensive industries, the GP577R-TC11 delivers the reliability and performance required for today’s demanding industrial environments.
