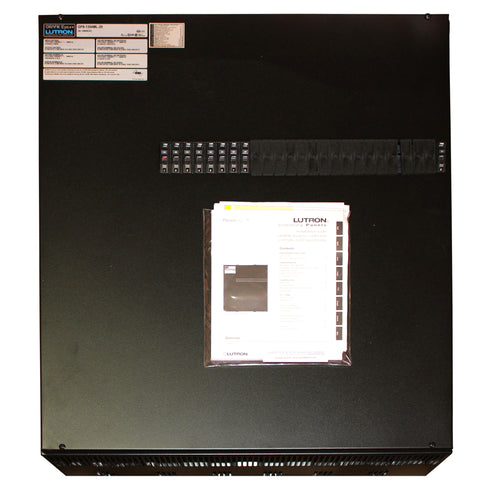

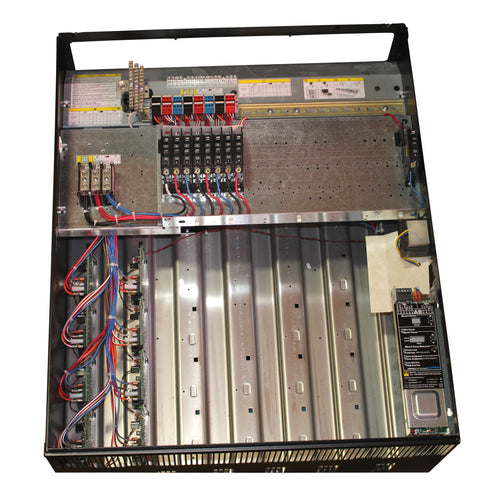

GP8-1204ML-20 | Lutron 8-Circuit 120/208V 3-Phase Dimming Panel 60A
- Regular price
- $8,999.00
- Sale price
- $8,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GP8-1204ML-20
Description
The Lutron GP8-1204ML-20 is a Grafik Eye GP dimming panel designed for centralized control of eight lighting circuits. It operates on a 120/208 VAC, 3-phase, 4-wire system with a 60 amp input rating and 20 amp branch circuit breakers. The panel is enclosed in a Type 1 housing and is intended for structured commercial lighting installations requiring multi-circuit dimming control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting |
| Part Number | GP8-1204ML-20 |
| Subcategory | Lighting Controller |
| Product Series | Grafik Eye GP |
| Number of Circuits | 8 |
| Input Voltage | 120/208 VAC |
| Phase Configuration | 3 Phase |
| Wiring | 4 Wire |
| Input Current Rating | 60 Amp |
| Branch Circuit Breakers | 20 Amp trip |
| Panel Feed Type | Main Lugs Only (ML) |
| Frequency | 50/60 Hz |
| Enclosure Type | Type 1 (Indoor) |
| Color | Black |
| Dimensions (L x W x H) | 37.0" x 28.0" x 14.0" |
| Weight | 32.00 lbs |
Information About GP8-1204ML-20
The GP8-1204ML-20 is a Grafik Systems GP dimming panel manufactured by Lutron for commercial lighting control applications. It incorporates eight dimming modules with integrated 20 A branch circuit breakers and a main lugs only (ML) feed configuration. Designed for 120/208 V, 50/60 Hz, 3-phase, 4-wire systems, the unit supports centralized scene-based lighting management. The panel is enclosed in a NEMA Type 1 steel enclosure for indoor use and is finished in black.
Key Features:
-
8 Dimming Circuits: Provides independent control of eight lighting loads.
-
120/208 VAC Operation: Compatible with 3-phase, 4-wire electrical systems.
-
60 Amp Input Rating: Supports panel feed capacity up to 60A.
-
Main Lugs Only (ML): Designed for direct connection to upstream distribution equipment.
-
20 A Branch Circuit Breakers: Integrated overcurrent protection per circuit.
-
Type 1 Enclosure: Indoor-rated enclosed panel construction.
-
50/60 Hz Frequency Support: Suitable for standard commercial power systems.
-
Compact Panel Design: Enclosed cabinet measuring 37" x 28" x 14".
The GP8-1204ML-20 delivers the reliability and precision required for distributed commercial lighting control systems.
