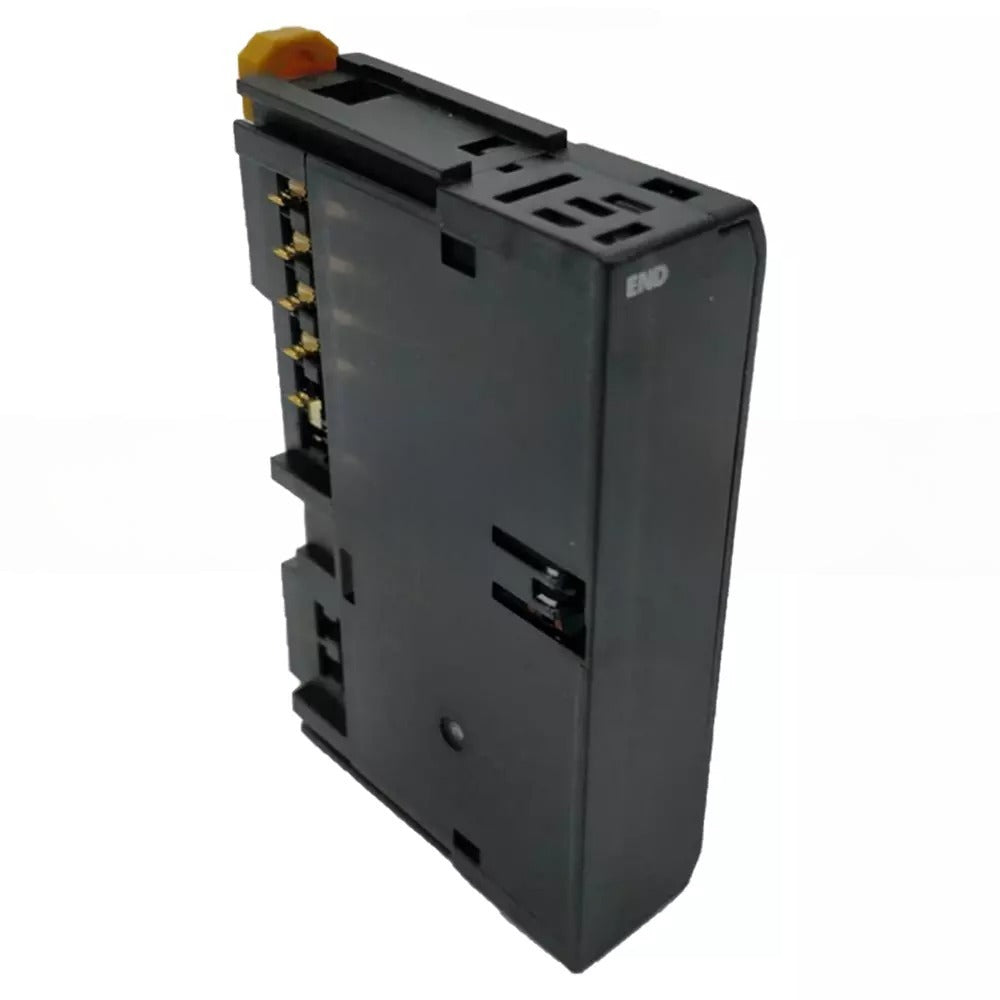

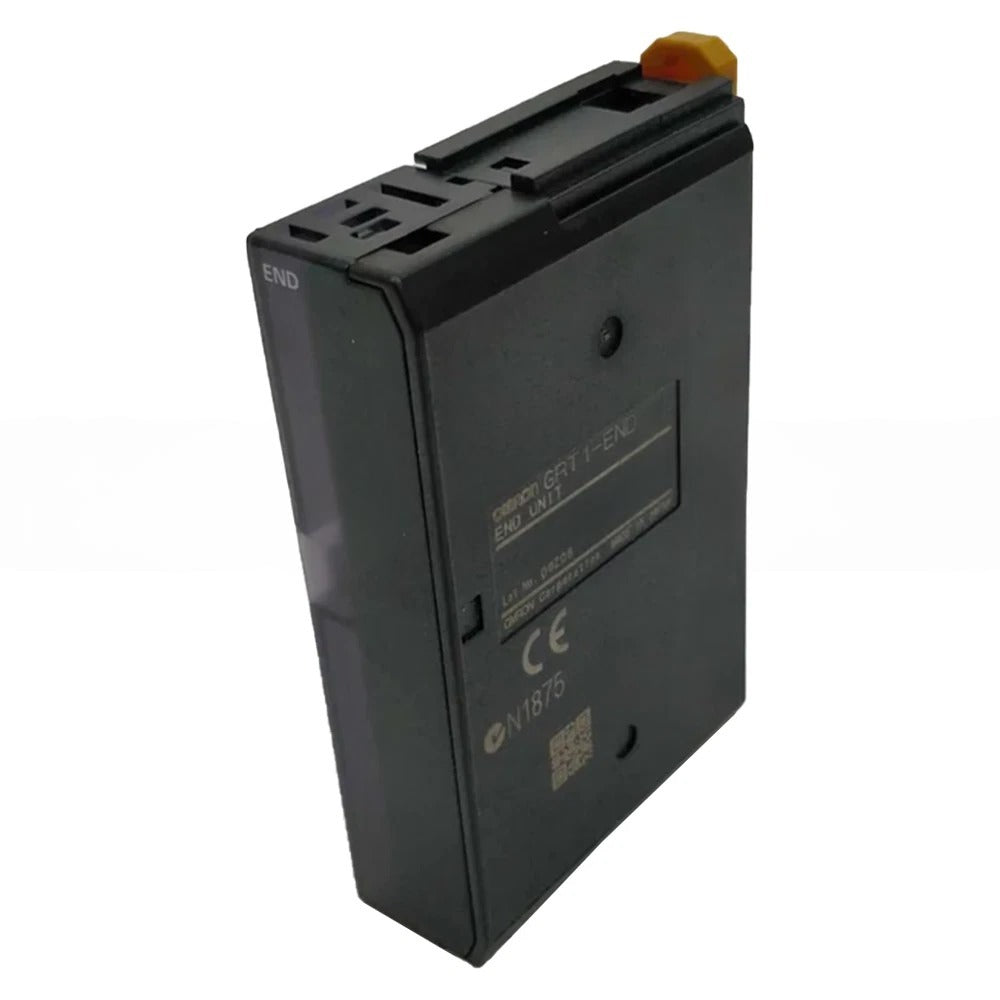

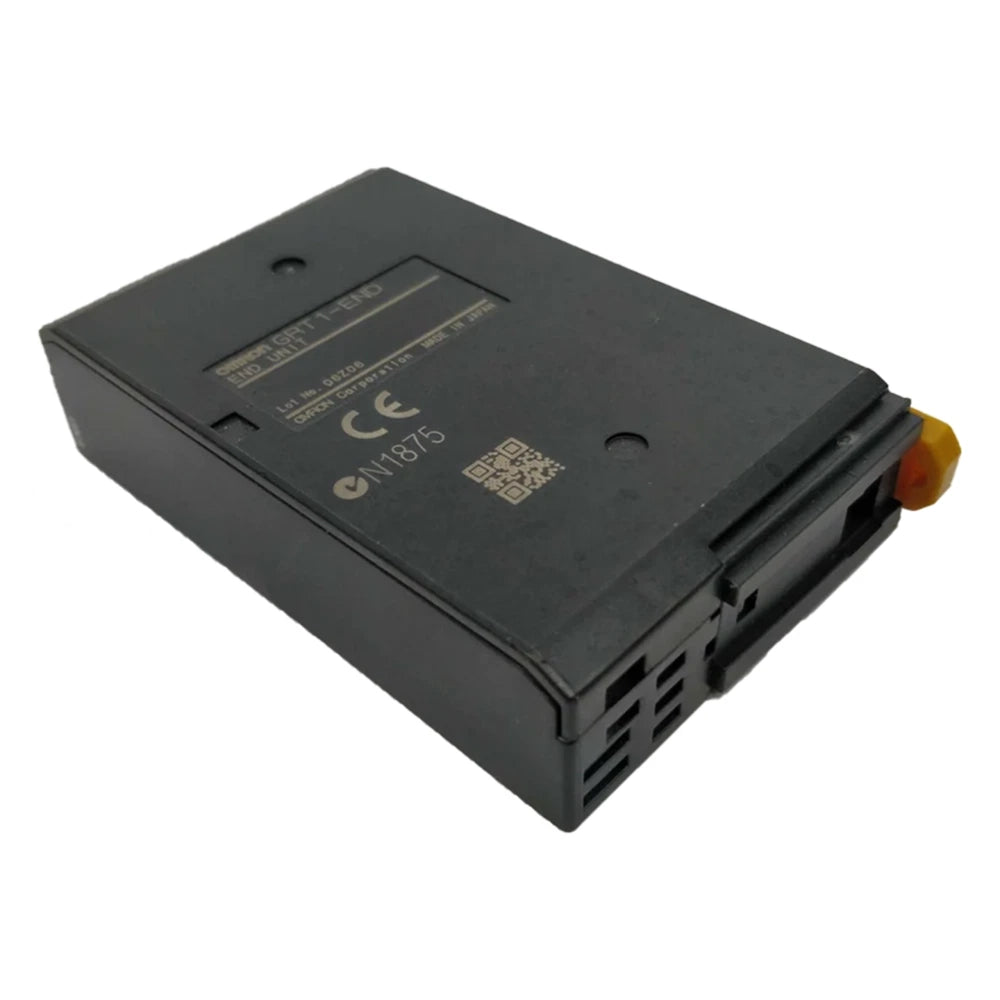

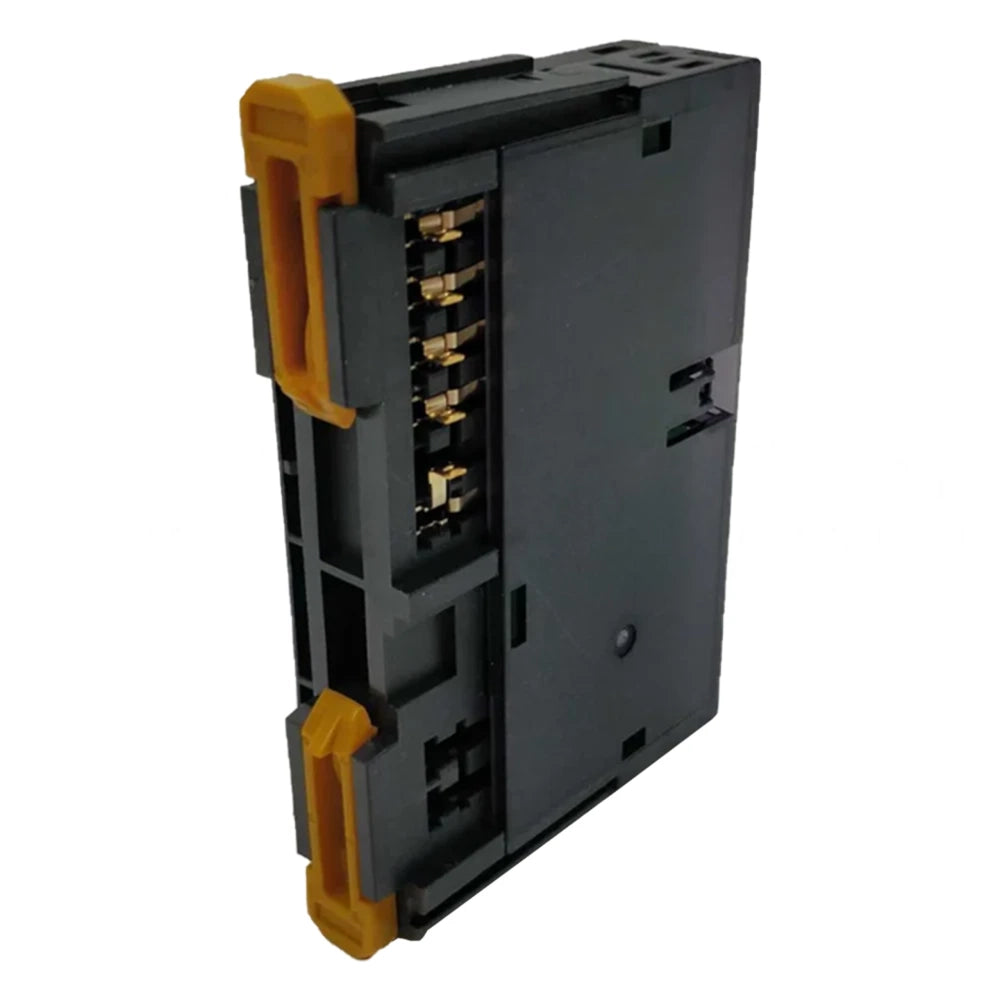

GRT1-END | Omron SmartSlice Communication End Plate 24 VDC
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GRT1-END
Description
The Omron GRT1-END is a SmartSlice communication end unit designed to terminate I/O terminals on a distributed bus system. It provides both unit and I/O power connections and features screwless push-in wiring for fast, tool-free installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | I/O Modules |
| Part Number | GRT1-END |
| Subcategory | Communication Units |
| Unit Power Supply Voltage | 24 VDC (20.4 to 26.4 VDC) |
| I/O Power Supply Voltage | 24 VDC (20.4 to 26.4 VDC) |
| I/O Connection Type | Screwless Push-in Terminals |
| Noise Immunity | IEC61000-4-4, 2.0 kV (power line) |
| Vibration Resistance | 10–60 Hz: 0.7 mm; 60–150 Hz: 50 m/s² |
| Shock Resistance | 150 m/s², 3 times per direction |
| Dielectric Strength | 500 VAC (between isolated circuits) |
| Insulation Resistance | 20 MΩ minimum |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -25°C to 65°C |
| Operating Humidity | 25% to 85% (non-condensing) |
| Mounting | 35 mm DIN Rail |
| Environmental Compliance | No corrosive gases |
| Weight | 0.11 lbs |
Information About GRT1-END
The GRT1-END is a termination module used in Omron’s SmartSlice I/O systems to conclude the I/O chain and enable communication with the host controller. It provides regulated 24 VDC unit and I/O power supply inputs, supporting voltage ranges from 20.4 to 26.4 VDC. Designed for easy installation, it employs screwless push-in terminal technology and mounts directly onto a 35 mm DIN rail. With robust environmental ratings and noise/vibration immunity, the unit ensures stable performance in industrial applications while complying with IEC and other global standards.
Key Features:
-
System Termination Function: Provides essential end-of-line communication for SmartSlice I/O modules in a distributed system.
-
Dual 24 VDC Power Supply Support: Separately accepts unit and I/O voltages within 20.4–26.4 VDC range, enabling isolated or shared power configurations.
-
Tool-Free Wiring: Screwless push-in terminal design simplifies installation and enhances wiring reliability.
-
Environmental Resistance: Operates in ambient temperatures from -10°C to 55°C and humidities up to 85%, ensuring field durability.
-
High Electrical Isolation: Withstands 500 VAC dielectric strength and ensures 20 MΩ insulation resistance between isolated circuits.
-
Compliance with IEC Standards: Offers immunity to 2.0 kV bursts per IEC61000-4-4 for noise resistance on the power supply line.
-
Shock and Vibration Resistant: Rated to endure 150 m/s² shock and 50 m/s² vibration levels without performance loss.
-
Compact DIN Rail Design: Easily mounts to standard 35 mm DIN rails to maintain consistent spacing and alignment in panels.
The GRT1-END delivers the reliability and precision required for terminating SmartSlice I/O networks in demanding industrial environments.
