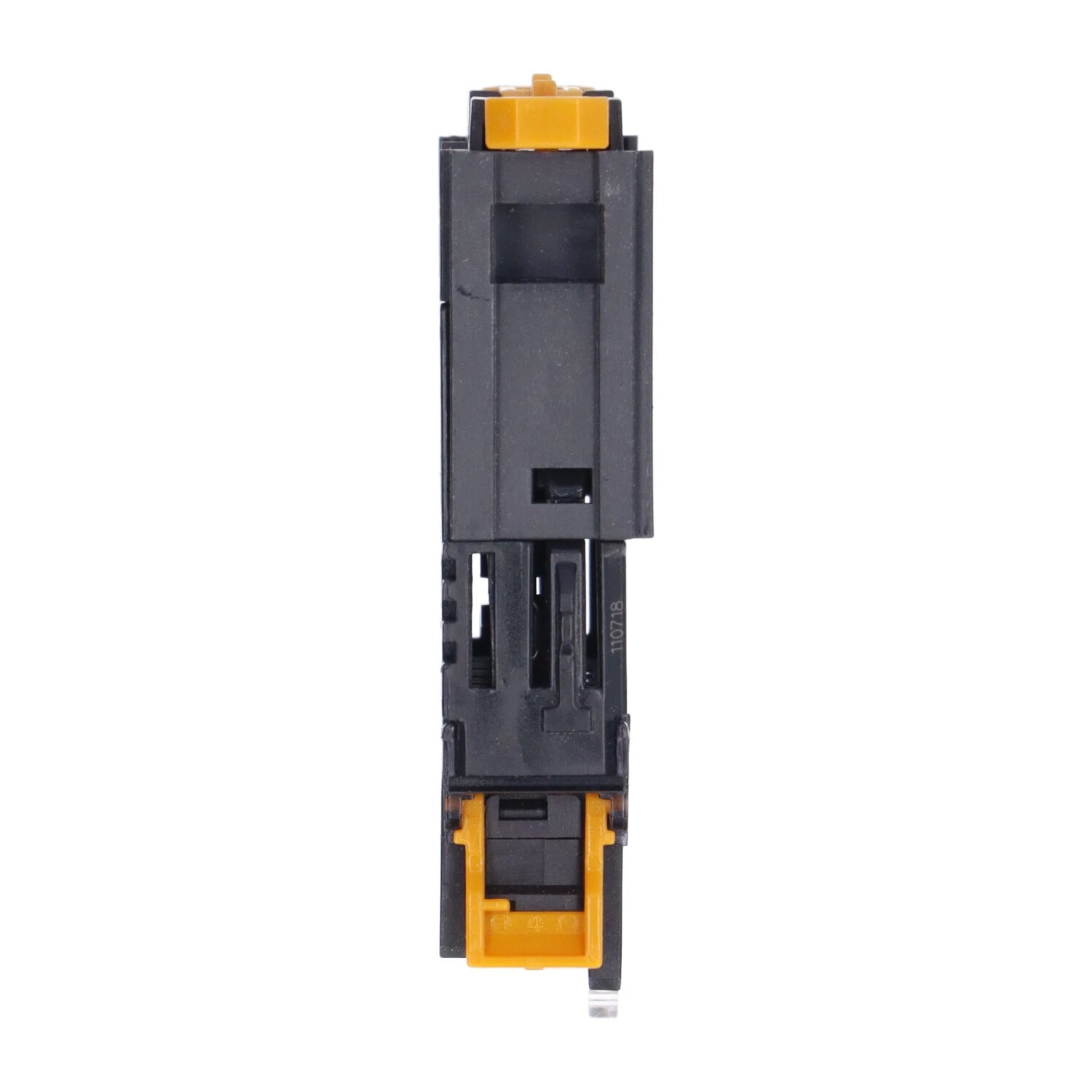

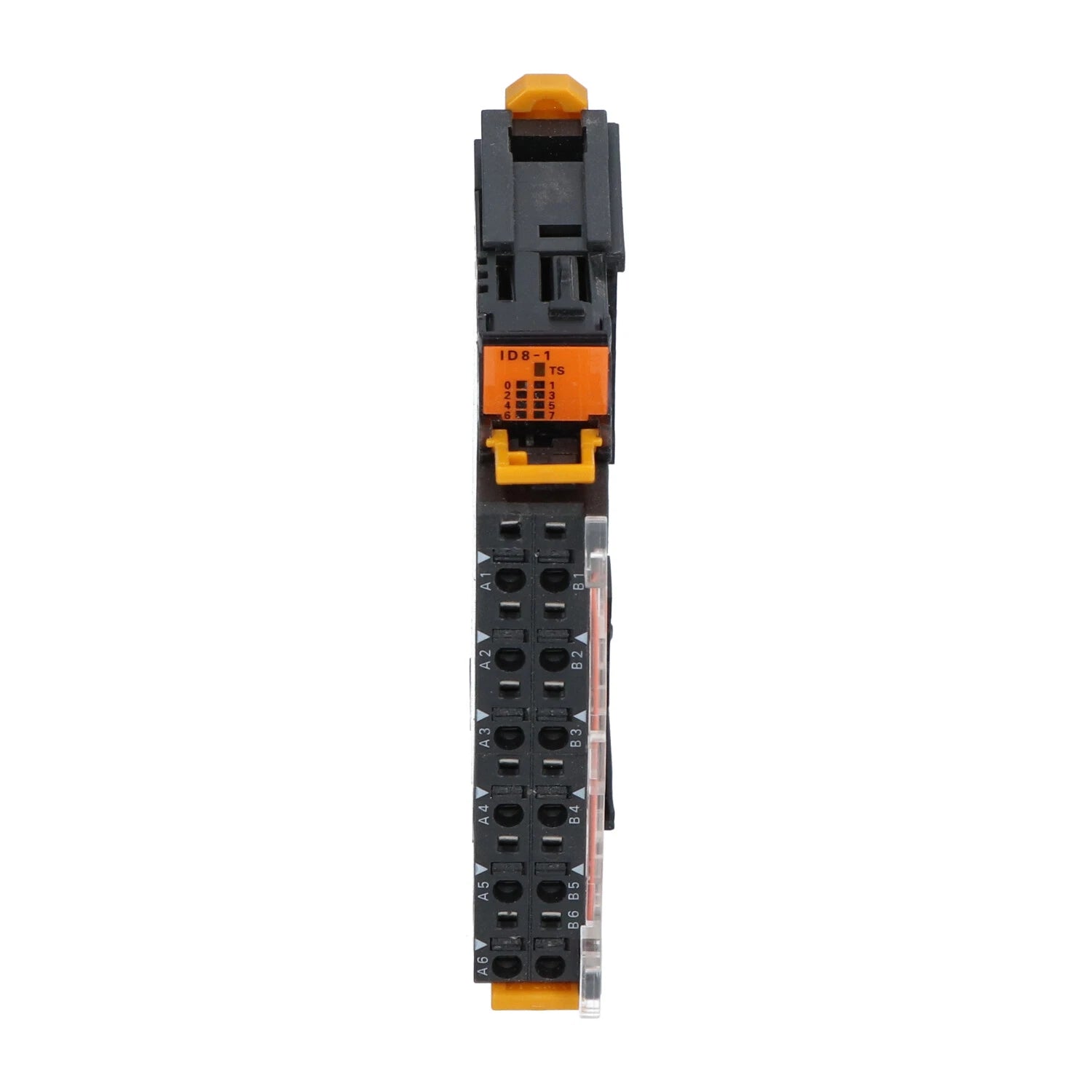

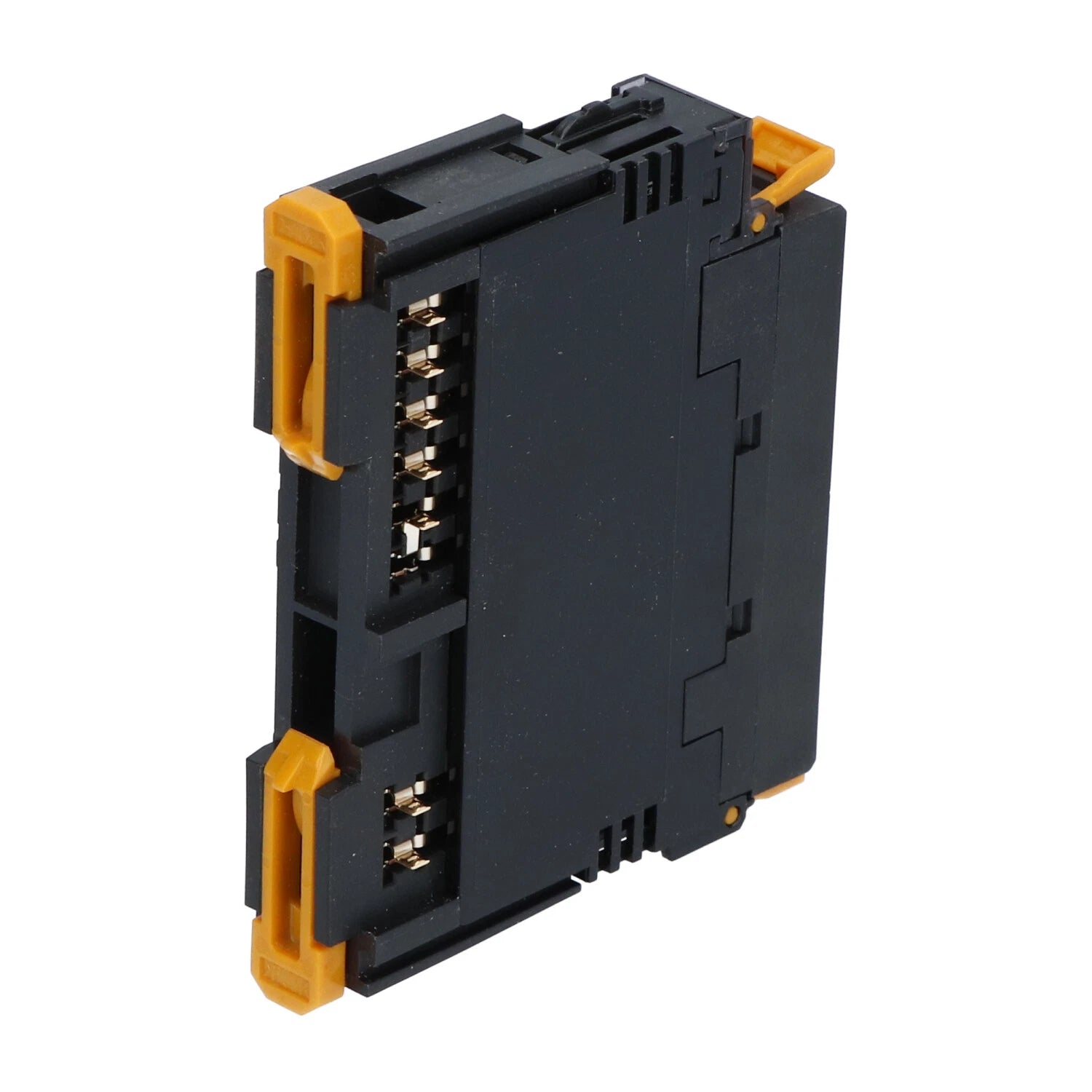

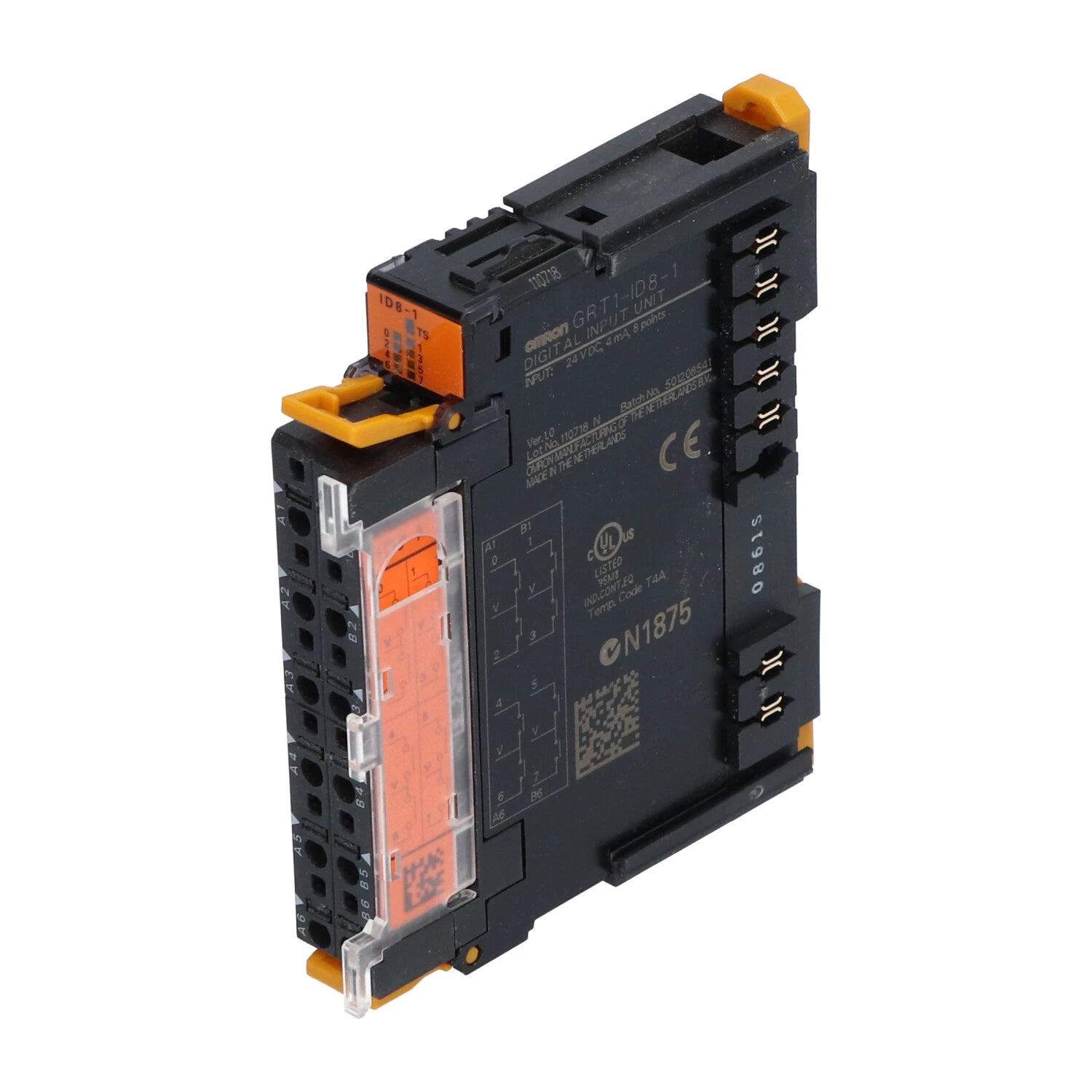

GRT1-ID8-1 | Omron SmartSlice 8-Point 24VDC Digital Input Module
- Regular price
- $415.00
- Sale price
- $415.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GRT1-ID8-1
Description
The Omron GRT1-ID8-1 is an 8-point digital input module for the SmartSlice series, designed to operate on a 24 VDC supply with PNP logic. It offers efficient DIN rail mounting and screw terminal connections for compact, distributed I/O systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | I/O Modules |
| Part Number | GRT1-ID8-1 |
| Subcategory | Input Modules |
| Number of Inputs | 8 |
| Input Type | Digital (PNP) |
| Input Current | 4 mA |
| Voltage - Supply | 24 VDC |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Ingress Protection | IP20 |
| Operating Temperature | -10°C to 55°C |
| Certifications | CE, cULus, Lloyd |
| Height | 84 mm |
| Width | 15 mm |
| Depth | 74.4 mm |
| Weight | 88 g |
Information About GRT1-ID8-1
The GRT1-ID8-1 is a SmartSlice digital input module from Omron, offering 8 PNP-type digital input channels for seamless integration into distributed control systems. Designed for use with CJ, CS, and NJ series PLCs, it operates on a 24 VDC power supply and supports a nominal input current of 4 mA per channel. The module features DIN rail mounting and a narrow form factor, which saves panel space in dense installations. With IP20 ingress protection and certifications from CE, cULus, and Lloyd, it is well-suited for industrial environments requiring reliable and compact input solutions.
Key Features:
-
8 PNP Digital Inputs: Accepts 24 VDC input signals with a 4 mA current rating per channel for sensor and device monitoring.
-
SmartSlice System Compatibility: Integrates easily with Omron’s modular SmartSlice I/O platform for distributed automation.
-
Compact DIN Rail Form Factor: 15 mm width conserves space in crowded control panels or machines.
-
Screw Terminal Wiring: Enables fast, secure, and vibration-resistant connections for field wiring.
-
Global Certifications: Approved by CE, cULus, and Lloyd for worldwide industrial use.
-
IP20 Protection Rating: Designed for protected enclosures with sufficient ventilation and dust protection.
-
Wide Operating Temperature Range: Functions reliably between -10°C and 55°C in typical industrial conditions.
-
Supported PLC Series: Fully compatible with Omron CJ, CS, and NJ PLC platforms for centralized or decentralized systems.
The GRT1-ID8-1 delivers the reliability and precision required for distributed digital input acquisition in modern industrial automation networks.
