GRX-3104-A-WH | Lutron 4-Zone Main Control Unit – GRAFIK Eye 3100 Series, 120V, White Finish
- Regular price
- $1,729.00
- Sale price
- $1,729.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GRX-3104-A-WH
Description

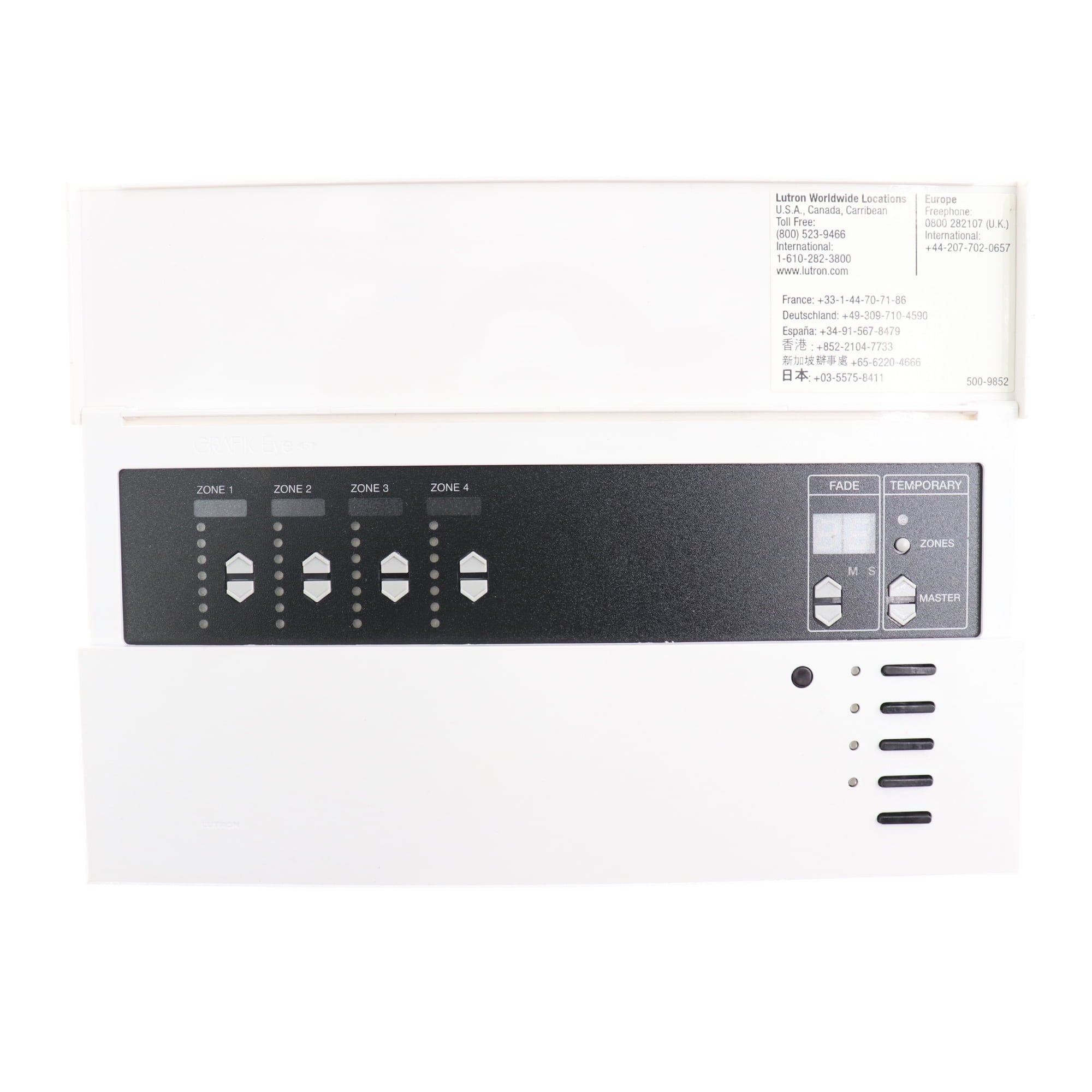

The Lutron GRX-3104-A-WH is a wall-mounted lighting controller that enables push-button access to four preset lighting scenes and an off state. Designed for the GRAFIK Eye 3100 Series, it operates at 120V and manages up to 800W per zone. With a clean white finish and intuitive interface, it fits seamlessly into both residential and commercial environments. It includes an integrated infrared receiver for use with compatible remote controls.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting Control Systems
|
| Part Number | GRX-3104-A-WH |
| Subcategory | Scene Controllers |
| Series | GRAFIK Eye® 3100 Series |
| Voltage | 120 VAC |
| Wattage Capacity | 800W per zone / 2000W total |
| Number of Zones | 4 |
| Control Type | Push-button with scene recall |
| Remote Compatibility | Yes (infrared, remote sold separately) |
| Color | White (Opaque Finish) |
| Mounting Type | Wall-mounted |
| Load Types Supported | Low voltage, magnetic, electronic |
| Operating Temperature | 0°C to 40°C |
| Scene Lockout | Yes |
| Weight | 1.15 lb (0.52 kg) |
Information About GRX-3104-A-WH
The GRX-3104-A-WH is part of the GRAFIK Eye® 3100 Series by Lutron, tailored for dynamic multi-zone lighting control. This four-zone unit can handle up to 2000W across zones, supporting both low voltage and magnetic/electronic loads with or without power interfaces. It features built-in scene recall and lockout capabilities, making it suitable for spaces requiring consistent ambient presets. The opaque white cover and compact design ensure aesthetic compatibility with most wall installations.
Key Features:
- Four-Zone Scene Control: Allows precise control of up to four independent lighting zones.
- High Load Capacity: Supports up to 800W per zone, 2000W total per unit.
- Push-Button Interface: Enables direct setup and scene recall using front-panel buttons.
- Infrared Receiver: Built-in IR receiver enables remote operation (remote sold separately).
- Scene Memory Lockout: Protects programmed lighting scenes from accidental changes.
- Multiple Load Compatibility: Compatible with low voltage, magnetic, and electronic loads.
- Clean White Finish: Blends easily into modern or traditional interior designs.
- Temperature Rated: Operates reliably between 0°C and 40°C.
The GRX-3104-A-WH delivers the reliability and precision required for smart, adaptable zone-based lighting control systems.
