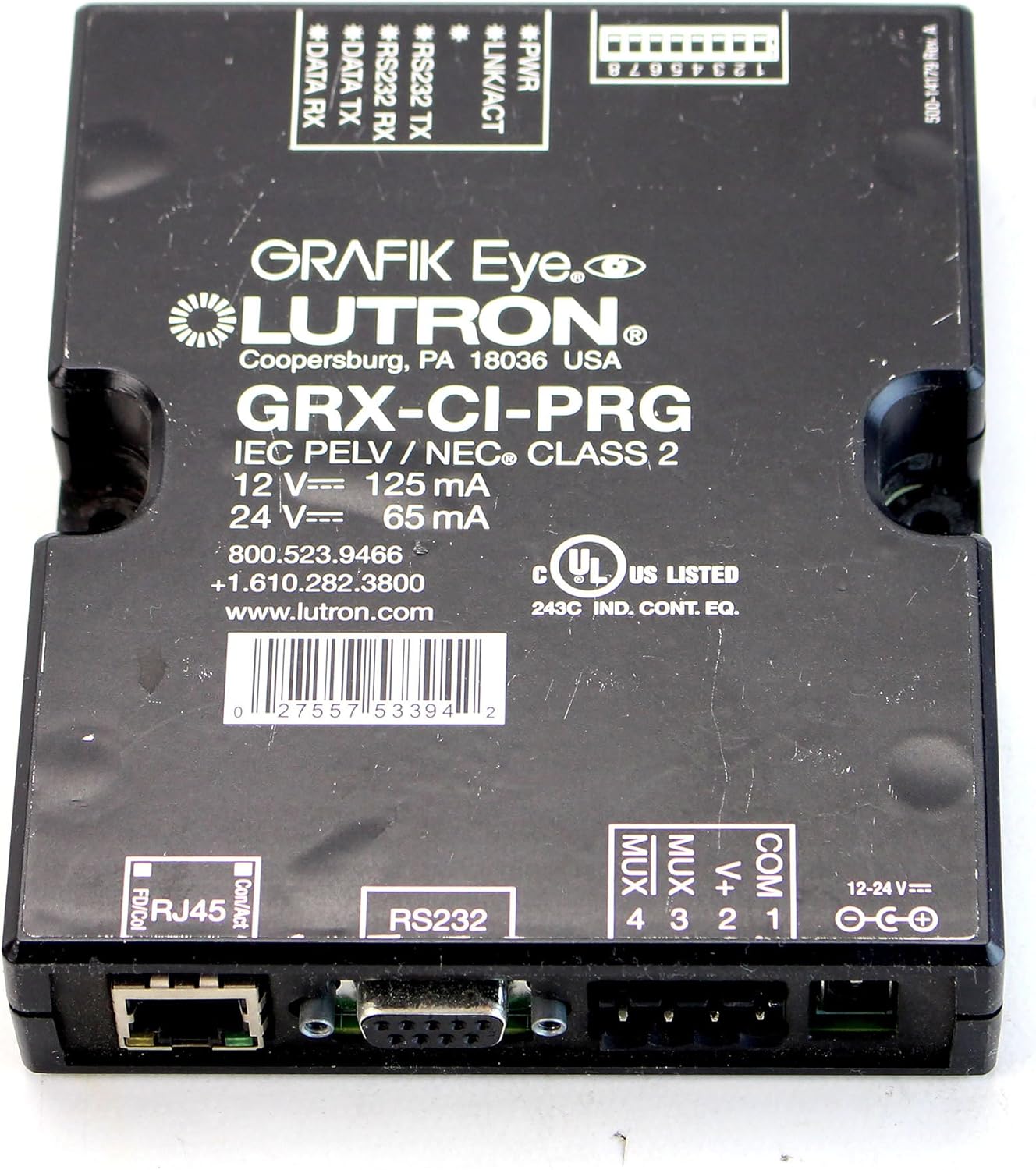

GRX-CI-PRG | Lutron GRAFIK Eye Programming Control Interface
- Regular price
- $919.00
- Sale price
- $919.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GRX-CI-PRG
Description
The Lutron GRX-CI-PRG is a programming control interface designed to integrate GRAFIK Eye lighting systems with PCs and other digital devices. It allows remote monitoring and control of lighting scenes through serial commands and supports automatic scheduling via a built-in astronomic timeclock. The interface enables efficient setup and management of multiple GRAFIK Eye control units.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting Control Systems
|
| Part Number | GRX-CI-PRG |
| Subcategory | Lighting Control Interfaces |
| Control Type | Programming Control Interface |
| Communication Protocols | RS232, TCP/IP |
| Operating Voltage | 12 V at 125 mA / 24 V at 65 mA |
| Power Source | Corded Electric |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | <90% non-condensing |
| Mounting Type | Wall mount or AV rack (LUT-19AV-1U compatible) |
| Connectivity Protocol | X-10 |
| Contact Type | Normally Open |
| Connector Type | RJ45 |
| Control Method | Touch |
| Dimensions | 12.5 x 9.5 x 0.3 inches |
| IP Rating | IP54 |
| Software Compatibility | Windows 95, NT 4.0, XP and later (excl. Vista, Win7) |
| Power Retention | Schedules and time saved for 10 years |
| Weight | 1 lb (0.45 kg) |
Information About GRX-CI-PRG
The GRX-CI-PRG is part of Lutron’s GRAFIK Eye control family, providing seamless communication between lighting control units and PC-based management software. It supports both RS232 and TCP/IP protocols, allowing flexible connectivity in various environments. The interface can manage from one to eight GRAFIK Eye 3000 or 4000 series units and includes DIP switch options for customized operation. Its built-in astronomic timeclock allows automated lighting events based on time, sunrise, and sunset, enhancing energy efficiency and convenience.
Key Features:
- PC Integration: Connects GRAFIK Eye systems to PCs using RS232 or TCP/IP communication.
- Serial Command Set: Enables monitoring and control of lighting scenes through simple serial commands.
- Astronomic Timeclock: Automatically schedules lighting events based on time of day and solar events.
- Multi-Unit Control: Supports programming of up to eight GRAFIK Eye 3000 or 4000 series units.
- User-Friendly Software: Includes Windows-compatible LIAISON software for easy scheduling and setup.
- DIP Switch Configuration: Allows selection of functionality without a connected PC.
- Power Retention: Stores programmed schedules and time for at least 10 years during power loss.
- Flexible Mounting: Can be mounted on walls or AV racks with included hardware.
The GRX-CI-PRG delivers the reliability and precision required for centralized lighting control and automation.
