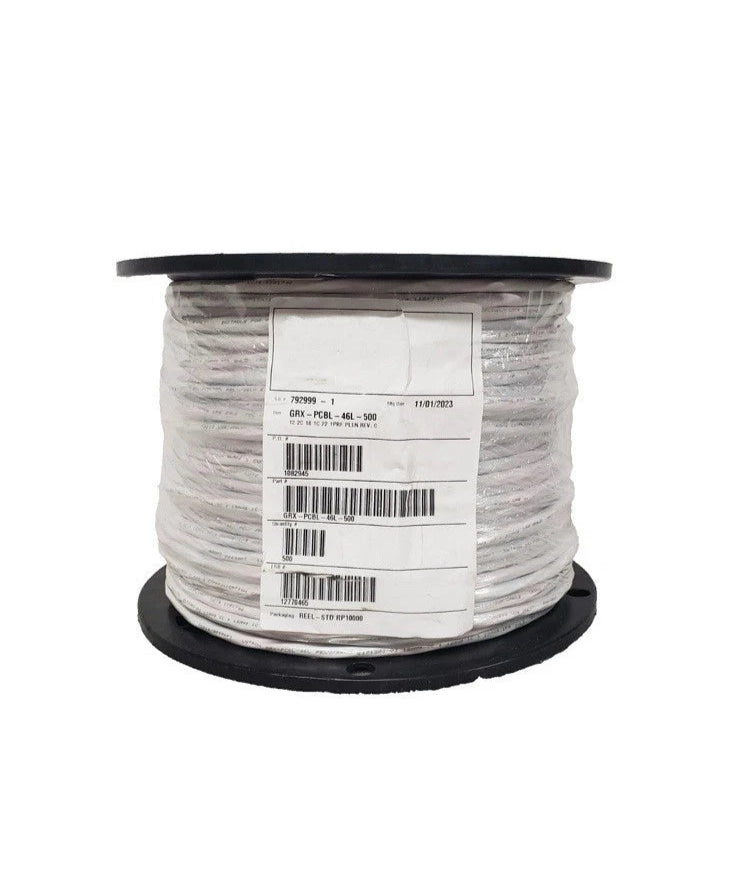

GRX-PCBL-46L-500 | Lutron 500ft Plenum-Rated 5-Conductor Control Cable for Grafik Eye 4000/6000
- Regular price
- $1,124.00
- Sale price
- $1,124.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GRX-PCBL-46L-500
Description
The Lutron GRX-PCBL-46L-500 is a 5-conductor plenum-rated control cable designed for use with Grafik Eye 4000 and 6000 series systems. With a length of 500 feet and Class 3 rating, it is ideal for transmitting control signals in building air distribution environments. This cable supports reliable communication between control modules and wallstations in commercial lighting control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | GRX-PCBL-46L-500 |
| Subcategory | Wallstation Accessories |
| Cable Type | Plenum, Class 3 |
| Length | 500 Foot |
| Number of Conductors | 5 |

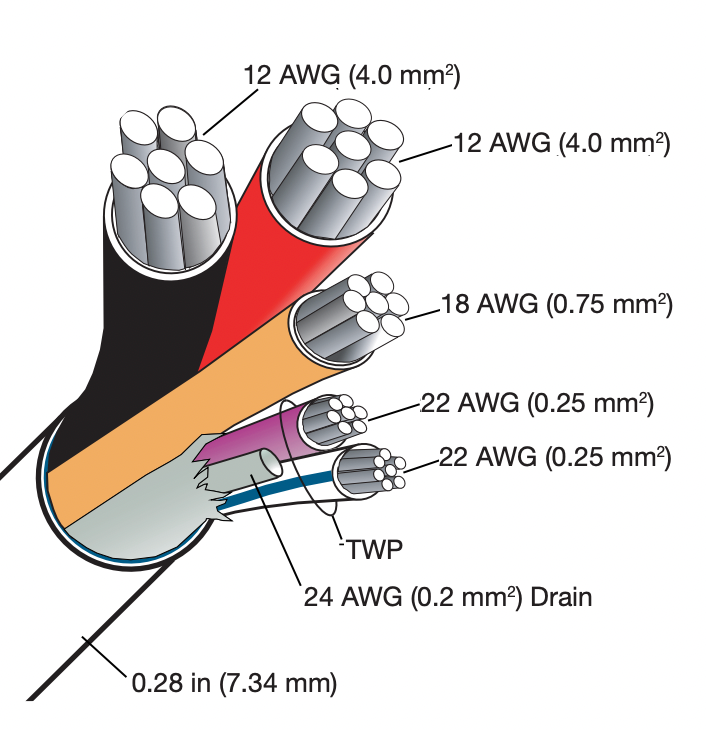

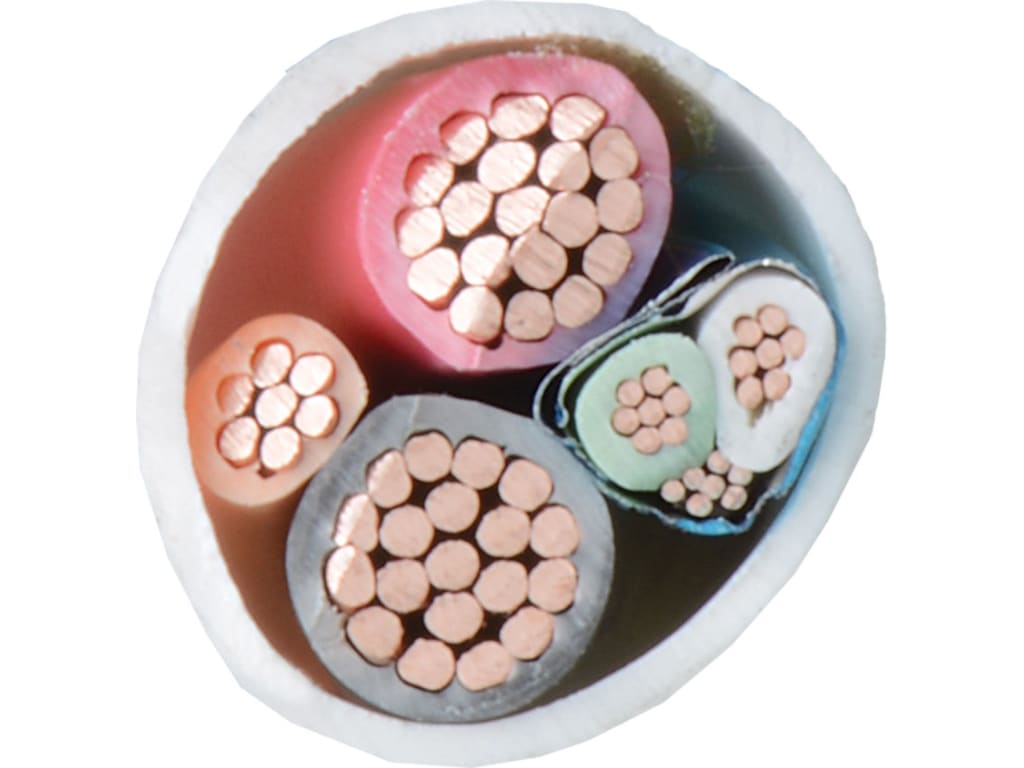

| Conductor Sizes | (2) 12 AWG, (2) 22 AWG, (1) 24 AWG |
| Jacket Diameter | 0.3 Inch |
| Input Voltage | 300 Volt |
| Used On | Lutron Grafik Eye 4000/6000 Series |
| Compliance Standards | UL (Canada and US), CSA |
| Plenum Rated | Yes |
| Country of Origin | USA |
| Manufacturer | Lutron Electronics Co., Inc. |
| UPC | 02755749314 |
| Weight | 15.5 lbs (approximate) |
Information About GRX-PCBL-46L-500
The GRX-PCBL-46L-500 is a specialized plenum-rated cable from Lutron’s Grafik Eye® series, intended for use in structured lighting control environments. Designed with (2) 12 AWG, (2) 22 AWG, and (1) 24 AWG conductors, it meets UL and CSA plenum safety standards for air-handling spaces. The cable is purpose-built to support communication in Lutron’s GRAFIK Eye 4000/6000 systems across long distances up to 500 feet. Manufactured in the USA, it ensures system compatibility and long-term durability in demanding installations.
Key Features:
- Plenum Rated Construction: Designed for use in air distribution systems per UL/CSA standards.
- Compatible with Grafik Eye: Built for Lutron Grafik Eye 4000 and 6000 series control systems.
- High-Quality Conductors: Contains (2) 12 AWG, (2) 22 AWG, and (1) 24 AWG conductors for signal and power.
- Long Reach: Supplied in a 500-foot spool to accommodate large-scale installations.
- UL and CSA Approved: Complies with safety standards in the US and Canada.
- Made in the USA: Manufactured by Lutron Electronics for high quality and performance.
- Slim Jacket: 0.3-inch diameter for easier routing through conduits and tight spaces.
The GRX-PCBL-46L-500 delivers the reliability and signal integrity required for distributed lighting control in commercial and plenum-rated environments.
