Product Description P/N: GRX-TVI
Description

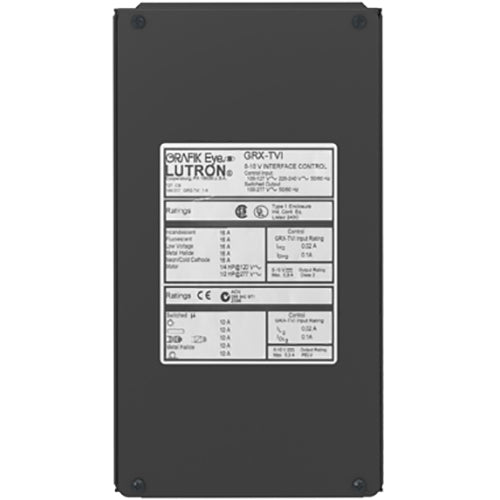

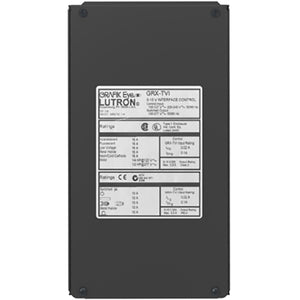

The Lutron GRX-TVI is a wall-mounted Ten Volt Interface designed for smooth 0–10 V dimming control of electronic ballasts and LED drivers. It converts forward, reverse, or center phase signals into a precise low-voltage control for reliable lighting performance. The unit supports universal 100–277 V~ input and heavy-duty switching capabilities for multiple load types.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Interfaces & Converters
|
| Part Number | GRX-TVI |
| Subcategory | 0–10 V Dimming Modules |
| Input Control Voltage | 100–277 V~, 50/60 Hz (forward/reverse/center) |
| Output / Load Voltage | 100–277 V~ |
| 0–10 V Output Rating | 10 µA – 300 mA sinking (ballast sources supply) |
| Min/Max 0–10 V Signal | <1 V min, >10 V max |
| Maximum Load Switching | 16 A capacitive / fluorescent / LED loads |
| Motor Switching Capacity | 1/2 HP @120 V~, 1½ HP @277 V~, 5 A @230 V~ CE |
| Control Zones per Unit | Up to 5 units per zone |
| Regulatory Approvals | cUL, CE, NOM, UL508 compliant |
| Enclosure Type | Wall-mounted, Type 1, plenum-rated |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Humidity | 0% to 90% non-condensing |
| Wiring Terminals | Up to two 12 AWG (2.5 mm²) conductors per terminal |
| Weight | 4.25 lb (2 kg) |
Information About GRX-TVI
The GRX-TVI is a high-performance Ten Volt Interface from Lutron engineered for integration with Grafik Eye and HomeWorks systems. It provides Class 2 isolated 0–10 V- control for current-sourcing ballasts and drivers, using universal phase input (100–277 V~). This device is compatible with a wide range of wallbox dimmers and RPM control modules to switch up to 16 A of lighting or motor loads. Built with a plenum-rated Type 1 enclosure, it enables reliable dimming and switching in residential and commercial installations.
Key Features:
- Universal Phase Input: Accepts forward, reverse, and center phase 100–277 V~ signals.
- Class 2 0–10 V Output: Provides isolated low-voltage dimming control compliant with EN60929 / IEC929.
- High Load Switching: Handles up to 16 A of capacitive, LED, fluorescent, or incandescent loads.
- Motor Switching Capability: Supports motors up to 1/2 HP at 120 V~ and 1½ HP at 277 V~.
- Multi-Zone Capacity: Connect up to five GRX-TVI units per control zone for expanded circuits.
- Plenum-Rated Enclosure: Suitable for environmental air spaces per NEC® and Canadian code.
- Independent Circuits: Control and load circuits operate independently and allow different phases.
- Robust Compatibility: Integrates with Grafik Eye, RPM panels, wallbox dimmers, and third-party drivers.
The GRX-TVI delivers the reliability and precision required for high-performance lighting and motor control applications.
