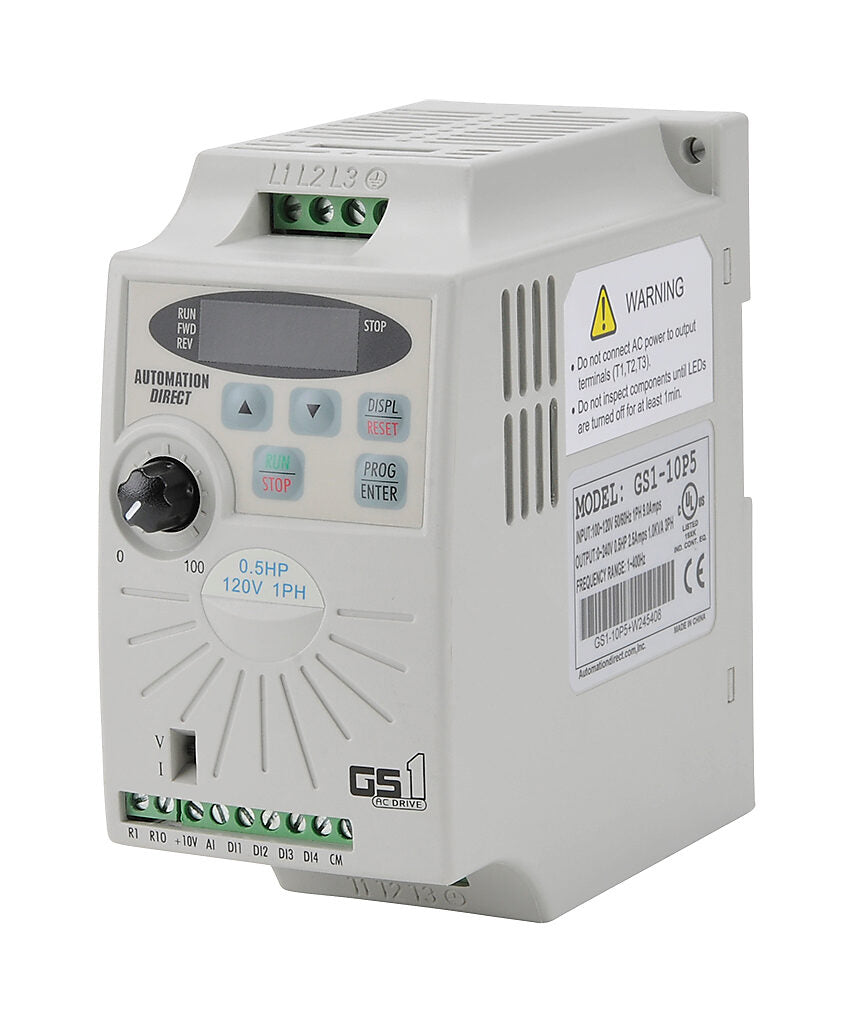

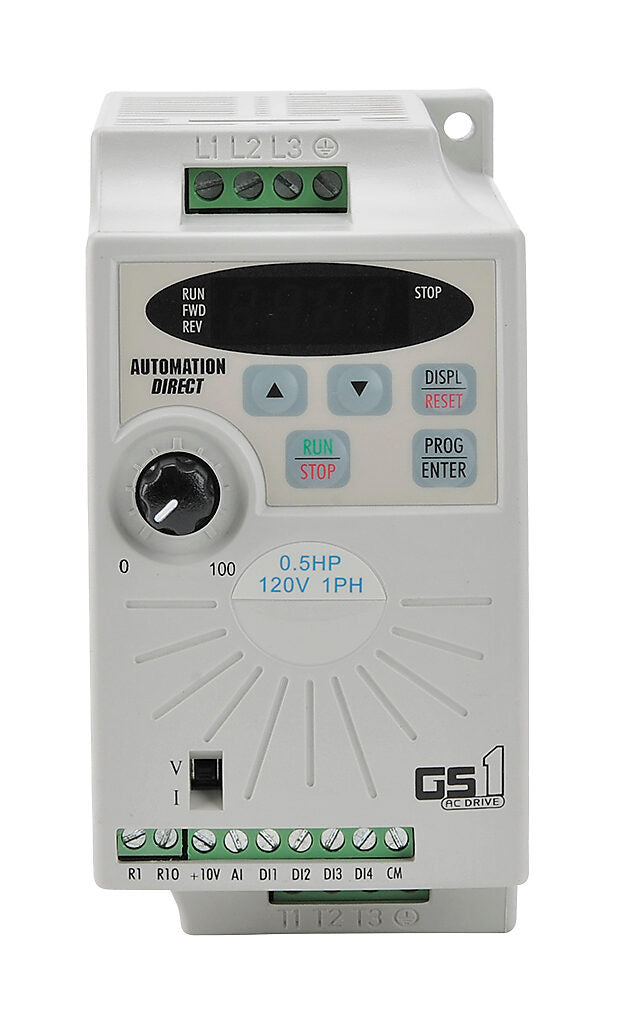

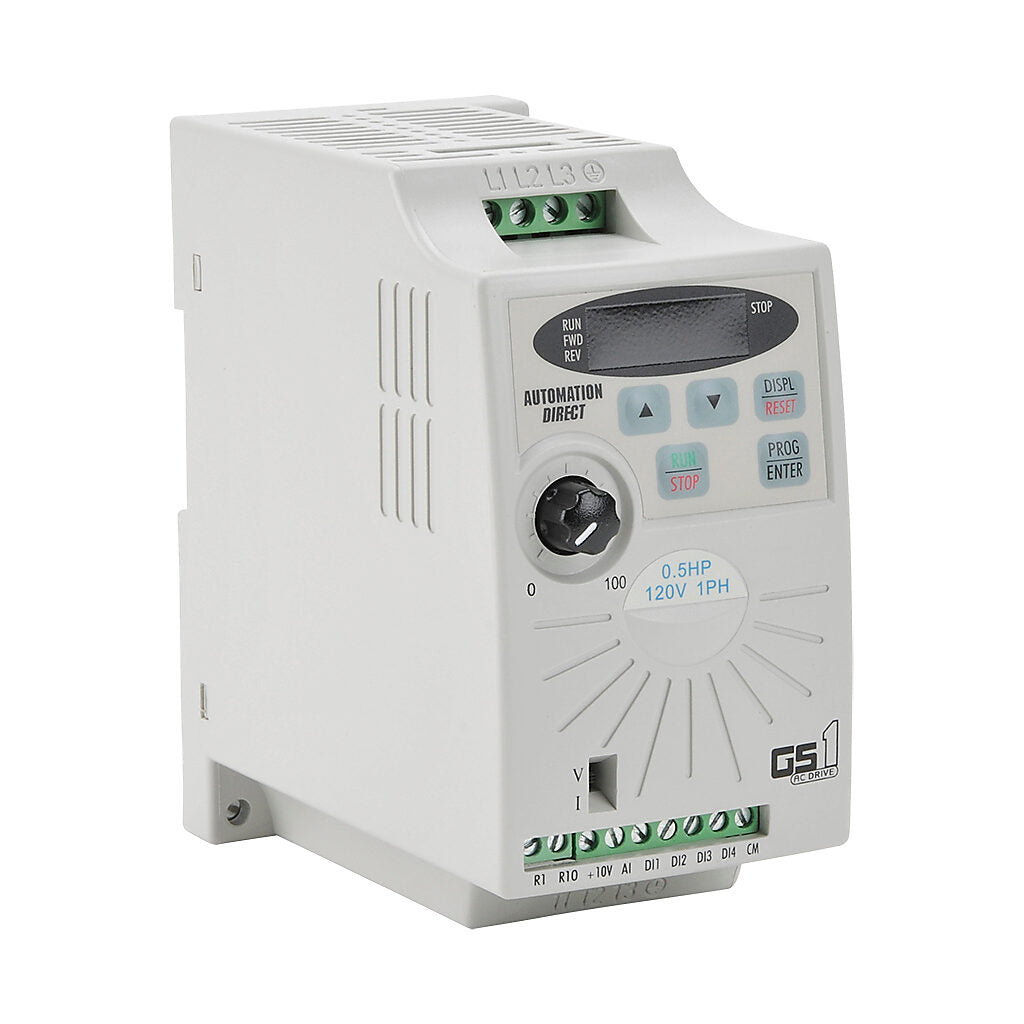

GS1-10P5 | Automation Direct GS1 1/2HP 120/230VAC AC Micro Drive RS-485
- Regular price
- $679.00
- Sale price
- $679.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GS1-10P5
Description
The Automation Direct GS1-10P5 is a GS1 series AC micro drive rated for 1/2 horsepower operation with single-phase 120/230 VAC input. It utilizes V/Hz control mode and provides integrated RS-485 Modbus communication for industrial motor control applications. This enclosed A-frame drive is designed to regulate speed and direction of small three-phase motors in compact automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Drives |
| Part Number | GS1-10P5 |
| Subcategory | AC Variable Frequency Drives |
| Series | GS1 |
| Drive Type | AC Micro Drive |
| Rated Power | 1/2 HP |
| Input Voltage | 120/230 VAC |
| Input Phase | 1-Phase |
| Control Mode | V/Hz |
| Communication | RS-485 (Modbus) |
| Enclosure Rating | IP20 |
| Short Circuit Current Rating (SCCR) | 5kA |
| Frame Size | A Frame |
| Reverse Capability | Built-In |
| Suggested Replacement | GS21-10P5 |
| Application | Industrial Motor Speed Control |
| Weight | 2.8 lb |
Information About GS1-10P5
The GS1-10P5 is part of the Automation Direct GS1 family of compact variable frequency drives developed for economical and space-efficient motor control. It operates from a 1-phase 120/230 VAC power supply and is rated for 1/2 HP applications using V/Hz control methodology. The drive includes built-in reverse capability and supports RS-485 communication with Modbus protocol for integration into PLC-based networks. With an IP20 enclosure rating and 5kA SCCR, it is intended for installation inside control panels for light industrial and commercial machinery.
Key Features:
- 1/2 HP Output Rating: Designed for fractional horsepower motor control applications.
- 120/230 VAC Single-Phase Input: Compatible with standard single-phase power supplies.
- V/Hz Control Mode: Provides stable and economical speed control for general-purpose motors.
- RS-485 Modbus Communication: Enables networked configuration and monitoring.
- Built-In Reverse Capability: Allows direction control without additional hardware.
- 5kA SCCR Rating: Supports compliant short-circuit current protection in panel installations.
- IP20 Enclosure Rating: Suitable for protected indoor control cabinet mounting.
- Compact A-Frame Design: Optimized for space-saving installations.
The GS1-10P5 delivers the reliability and precision required for compact variable frequency motor control in light industrial automation systems.
