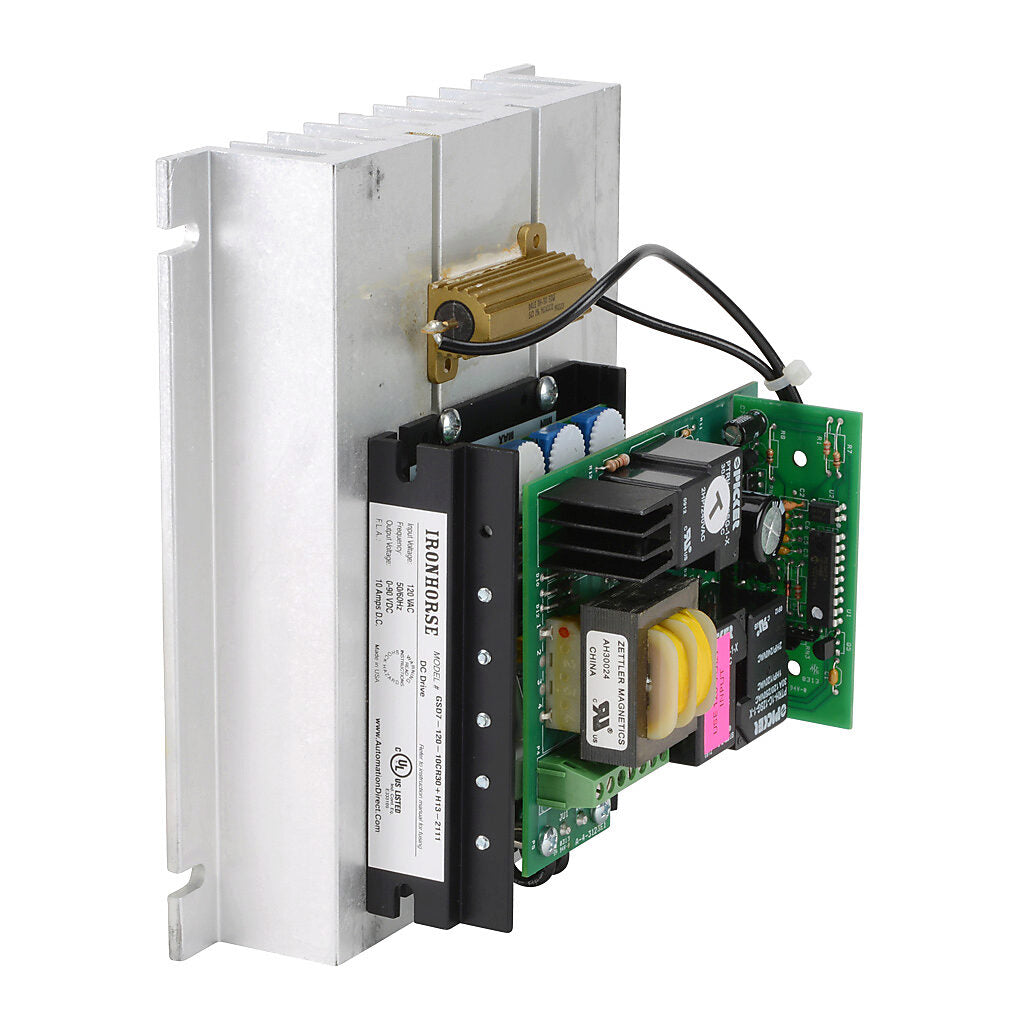

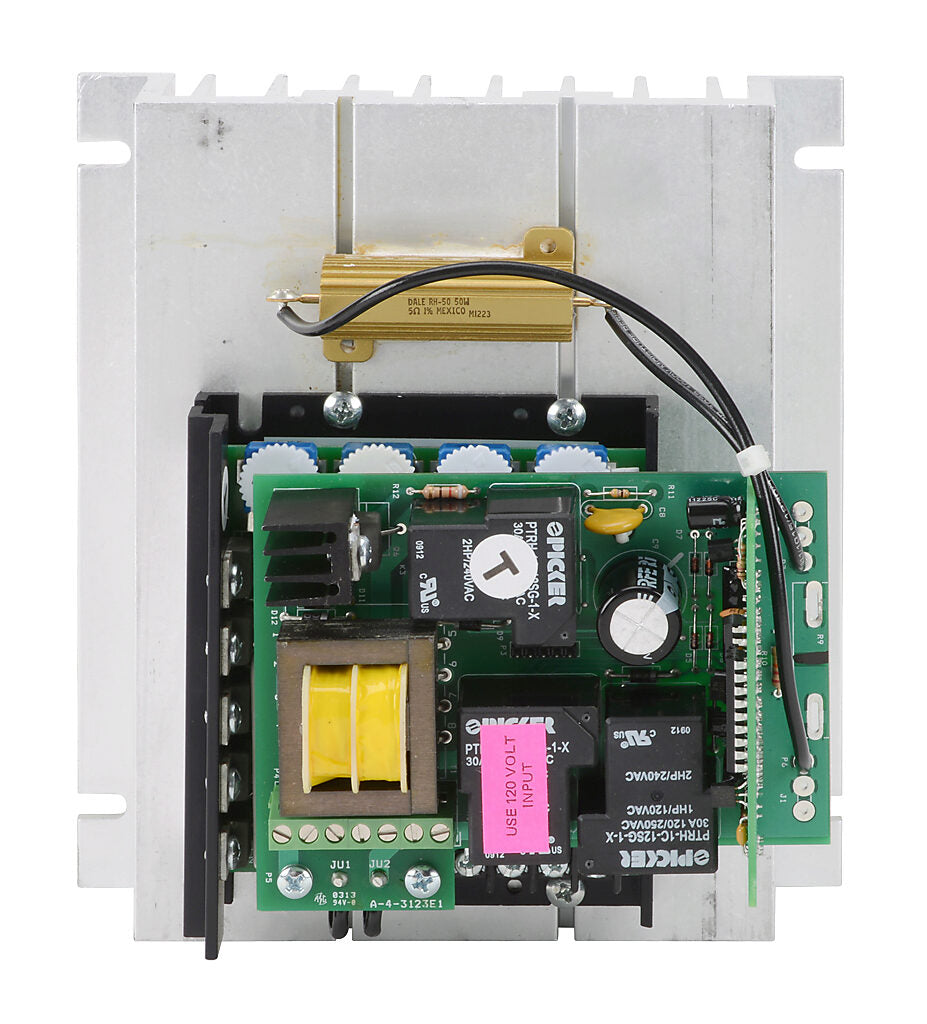

GSD7-120-10CR30 | Automation Direct IronHorse 120VAC Reversing DC Drive 10A
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GSD7-120-10CR30
Description
The Automation Direct GSD7-120-10CR30 is an IronHorse GSD7 series reversing DC drive designed for precise speed control of permanent magnet and shunt wound DC motors. Operating from a 120 VAC single-phase input, it delivers up to 90 VDC output with a maximum current rating of 10A. This open-frame SCR drive is suited for panel-mounted industrial applications requiring adjustable and reversible DC motor control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Motor Drives |
| Part Number | GSD7-120-10CR30 |
| Subcategory | DC Drives |
| Series | IronHorse GSD7 |
| Controller Type | Reversing DC drive |
| Voltage Type | DC |
| Nominal Input Voltage | 120 VAC |
| Input Phases | 1-phase |
| Nominal Output Voltage | Up to 90 VDC |
| Horsepower Rating | 1/8 to 1 HP at 90 VDC |
| Amperage Rating | 10A |
| Variable Torque Amperage Range | 500 mA to 10A |
| Output Type | SCR output |
| Reverse Capability | Built-in |
| Reverse Cycle Frequency | Max 30 reverses per minute |
| Shunt Field Supply | Yes |
| Control Input | Potentiometer input |
| Safe Torque Off (STO) | No |
| Mounting | Panel mount |
| Enclosure Type | Open frame |
| IP Rating | IP00 |
| Operating Temperature | -10 to 45°C |
| Connector Type | Screw terminals |
| For Use With | Permanent magnet DC, shunt wound DC, and universal motors |
| Included | Speed potentiometer with knob and 0–100% faceplate |
| Weight | 3.0 lb |
Information About GSD7-120-10CR30
The GSD7-120-10CR30 is part of the IronHorse GSD7 family of DC motor drives engineered for compact and reliable performance. It converts 120 VAC input power into controlled DC output up to 90 VDC using SCR output technology for smooth speed regulation. The drive supports reversing functionality with a maximum reverse cycle frequency of 30 reverses per minute and includes a shunt field supply for compatibility with multiple DC motor types. Designed for panel mounting, it features screw terminal connections and includes a speed potentiometer with knob and 0–100% faceplate for manual speed adjustment.
Key Features:
- 120 VAC Single-Phase Input: Designed for standard AC supply operation in industrial panels.
- 90 VDC Output Capability: Provides adjustable DC output for motor speed control applications.
- 10A Current Rating: Supports motors from 1/8 to 1 horsepower at 90 VDC.
- Built-In Reversing Function: Allows directional control with up to 30 reverses per minute.
- SCR Output Technology: Ensures stable and efficient DC motor speed regulation.
- Shunt Field Supply Included: Supports permanent magnet, shunt wound, and universal motors.
- Potentiometer Control: Includes external speed potentiometer with 0–100% scale faceplate.
- Open Frame Design: Compact panel-mount construction with screw terminal connections.
The GSD7-120-10CR30 delivers the reliability and precision required for adjustable DC motor speed and reversing control applications.
