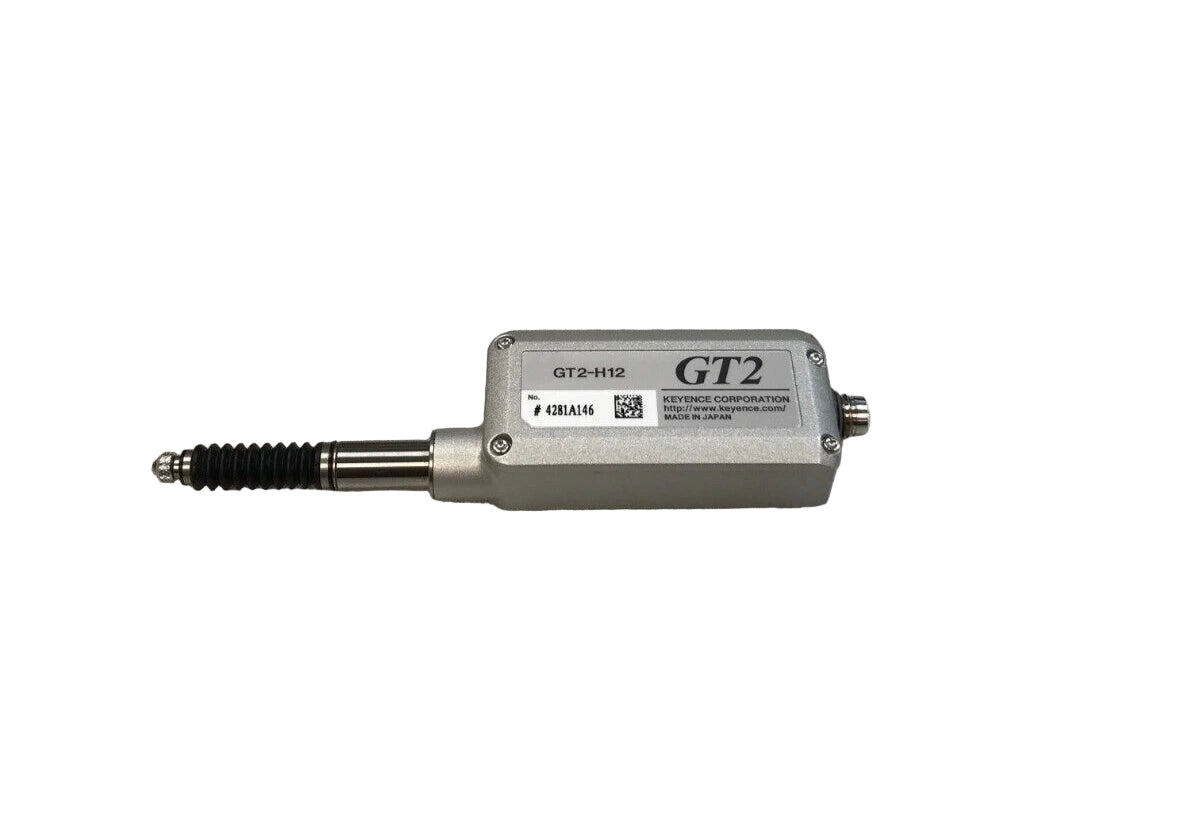

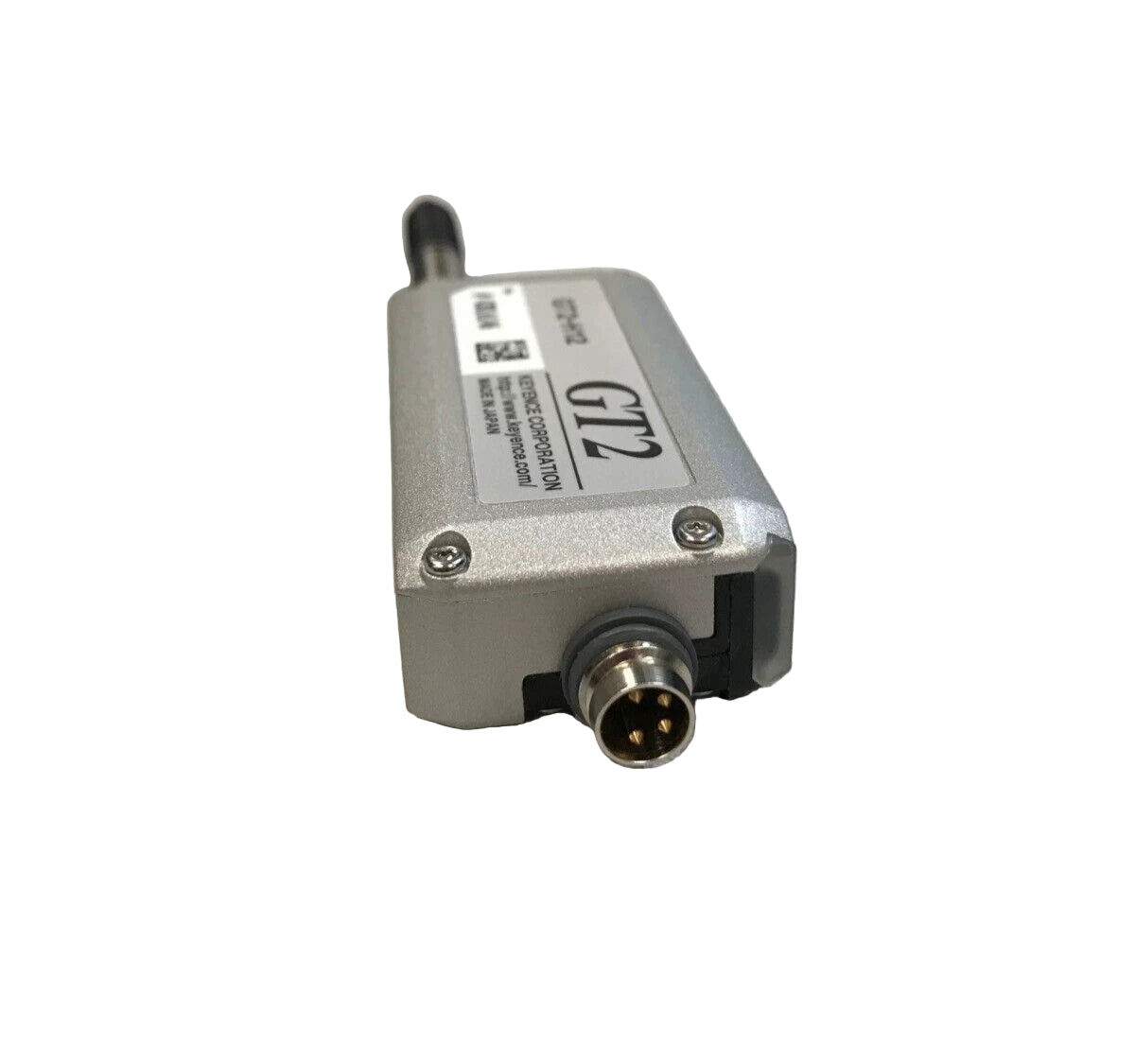

GT2-H12 | Keyence High-Accuracy Digital Contact Sensor, 12 mm Range, IP67
- Regular price
- $495.00
- Sale price
- $495.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: GT2-H12
Description
The Keyence GT2-H12 is a high-accuracy digital contact sensor head designed for precise dimensional and displacement measurement. With a 12 mm measuring range and 0.5 μm resolution, it ensures exceptional repeatability and stability in automated inspection and gauging applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | GT2-H12 |
| Subcategory | Contact Sensor |
| Detection System | Quartz glass scale, CMOS image sensor projection, Absolute type |
| Measuring Range | 12 mm (0.47") |
| Resolution | 0.5 μm (0.02 mil) |
| Indicated Accuracy | ±2 μm (0.08 mil p-p) |
| Measuring Force | 1.0 N (downward), 0.9 N (side), 0.8 N (upward) |
| Sampling Cycle | 1 ms |
| Mechanical Response | 10 Hz |
| Operation Indicator | 2-color LED (red/green) |
| Enclosure Rating | IP67 |
| Ambient Temperature | -10 to +55 °C (No freezing) |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude |
| Shock Resistance | 1,000 m/s² |
| Material | Zinc die-cast body, Polyarylate indicator, NBR dust boot |
| Contact Tip | Type 304 / 440C stainless steel |
| Cable Type | Optional M8 connection |
| Weight | Approx. 95 g (excluding cable) |
Information About GT2-H12
The GT2-H12 belongs to Keyence’s GT2 Series of high-precision digital contact sensors, renowned for their robust mechanical structure and long-term stability. Utilizing a quartz glass scale and CMOS image sensor projection system, this absolute-type model eliminates tracking error for continuous measurement reliability. The IP67-rated housing allows operation in demanding factory environments, including exposure to oil and coolant. Compatible with various amplifiers and controllers, the GT2-H12 integrates seamlessly into precision automation and quality control setups.
Key Features:
- High-Precision Measurement: Provides 0.5 μm (0.02 mil) resolution for micro-level dimensional analysis.
- Wide Measuring Range: Capable of detecting displacement up to 12 mm (0.47") with consistent accuracy.
- Excellent Accuracy: Ensures ±2 μm (0.08 mil) indicated accuracy for repeatable measurement results.
- Fast Sampling Rate: Operates with a 1 ms sampling cycle for real-time data collection.
- Durable Construction: Zinc die-cast body with IP67 protection resists dust, oil, and water intrusion.
- Flexible Mounting: Supports downward, side, and upward configurations with optimized measuring forces.
- Robust Contact Tip: Made from Type 304/440C stainless steel for durability under repeated contact.
- Visual Status Display: Dual-color LED indicator (red/green) simplifies operational monitoring.
- Shock and Vibration Resistant: Withstands 1,000 m/s² shock and vibration at 10–55 Hz, ensuring reliability in industrial use.
- Broad Operating Range: Functions effectively from -10 °C to +55 °C, suitable for diverse environments.
The GT2-H12 delivers the precision, responsiveness, and durability required for automated inspection, dimensional verification, and machine control systems.
