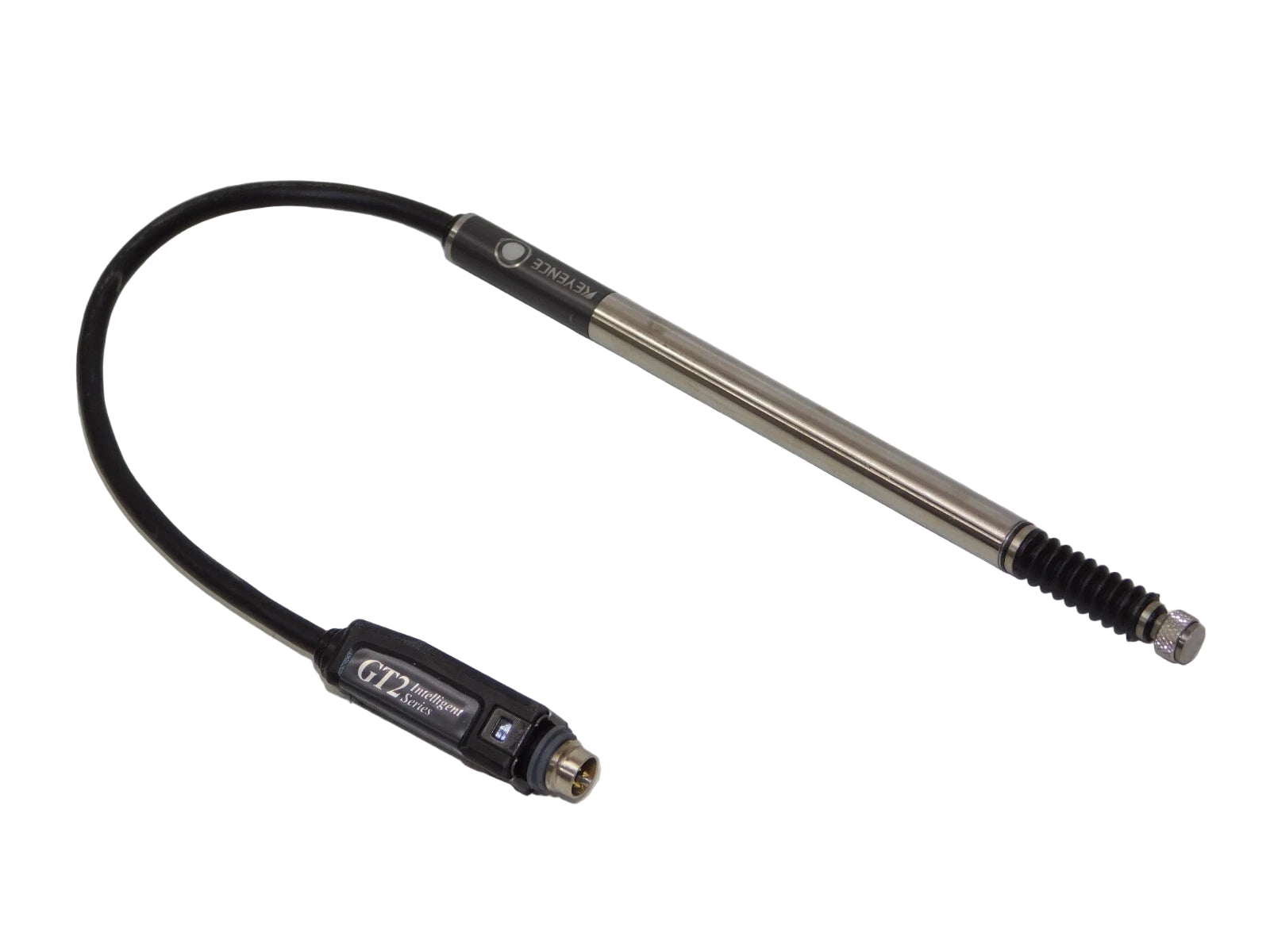

GT2-P12 | Keyence Stylus-Type Digital Contact Sensor, 12 mm Range, IP67, 4 ms Sampling
- Regular price
- $657.00
- Sale price
- $657.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: GT2-P12
Description
The Keyence GT2-P12 is a compact stylus-type digital contact sensor head designed for precise linear measurement applications. Featuring a 12 mm measuring range and 0.5 μm resolution, it delivers highly accurate displacement readings with a fast 4 ms sampling cycle and robust environmental resistance for industrial use.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | GT2-P12 |
| Subcategory | Photoelectric |
| Detection System | Scale Shot System II (absolute, no tracking errors) |
| Measuring Range | 12 mm (0.47") |
| Resolution | 0.5 μm (0.02 mil) |
| Indicated Accuracy | ±2 μm (0.08 mil p-p) |
| Measuring Force | Downward: 1.0 N, Side: 0.95 N, Upward: 0.9 N |
| Sampling Cycle | 4 ms |
| Mechanical Response | 10 Hz |
| Operation Indicator | 2-color LED (red/green) |
| Enclosure Rating | IP67G (JIS), IP67 (IEC), NEMA Type 13 |
| Ambient Temperature | -10 to +55 °C (14 to 131 °F) |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm (0.06") |
| Shock Resistance | 1,000 m/s² (IEC60068-2-27) |
| Materials | Case: SUS303 stainless steel; Indicator: PET; Cable: PUR; Connector: PBT |
| Dust Boot | NBR (nitrile rubber) |
| Contact Material | SUS304 / SUS440C stainless steel |
| Sensor Head Cable | Optional (connects to relay connector) |
| Weight | Approx. 35 g (0.08 lbs, excluding cable) |
Information About GT2-P12
The GT2-P12 is part of the Keyence GT2 Series, a family of high-precision digital contact sensors based on the Scale Shot System II—an absolute measurement system with no tracking errors. It combines advanced internal optics with a rugged stainless-steel body and flexible mounting options. With IP67G / IP67 / NEMA Type 13 ratings, the GT2-P12 performs reliably in environments exposed to oil, dust, or vibration. The sensor supports downward, side, and upward mounting configurations, making it ideal for automation, inspection, and dimensional control systems in manufacturing.
Key Features:
- High-Precision Measurement: Provides 0.5 μm (0.02 mil) resolution for accurate linear displacement detection.
- Wide Measuring Range: Measures up to 12 mm (0.47"), suitable for various part geometries and surfaces.
- Fast Sampling Cycle: Operates at 4 ms, enabling real-time feedback for dynamic measurement processes.
- Absolute Scale Technology: The Scale Shot System II eliminates cumulative error and ensures stable readings.
- Compact Stylus Design: Slim, lightweight probe fits tight spaces in automated measurement setups.
- Durable Construction: Stainless-steel (SUS304/SUS440C) contact tip with oil-resistant NBR dust boot.
- Excellent Environmental Resistance: Rated IP67G / IP67 / NEMA Type 13 for protection against oil, coolant, and dust.
- Dual-Color LED Indicator: Integrated red/green LED display for operational and status feedback.
- Low Measuring Force: Designed for sensitive contact with measuring forces as low as 0.9–1.0 N.
- Shock & Vibration Resistant: Tested to 1,000 m/s² shock and vibration tolerance up to 55 Hz for industrial stability.
The GT2-P12 delivers the precision, speed, and durability required for automated measurement, quality inspection, and process monitoring applications.
