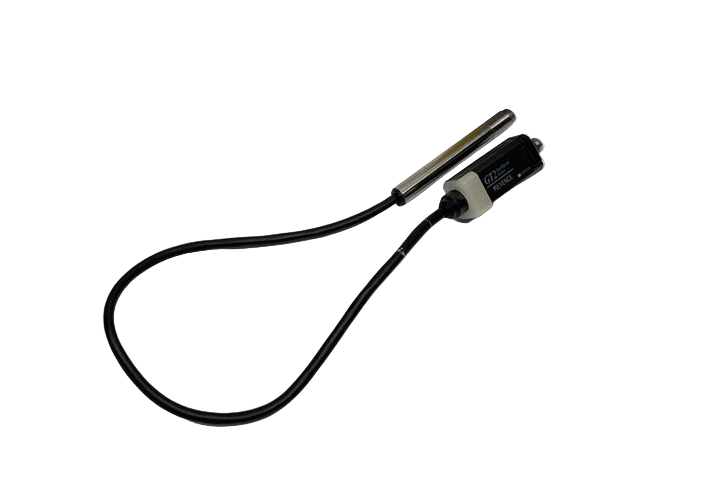

GT2-S5 | Keyence GT2 Series Short-Range Pencil-Type Sensor Head, 5 mm Range, 0.1 μm Resolution
- Regular price
- $779.00
- Sale price
- $779.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: GT2-S5
Description
The Keyence GT2-S5 is a short-range pencil-type sensor head that uses a differential transformer detection system for high-precision measurement applications. Designed for accuracy and durability, it offers a 5 mm measuring range with 0.1 μm resolution, making it ideal for precision dimensional inspection and quality control processes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Test Equipment |
| Part Number | GT2-S5 |
| Subcategory | Lead/Probe |
| Series | GT2 Series |
| Type | Short-range pencil-type sensor head |
| Detection System | Differential transformer |
| Measuring Range | 5 mm (0.20″) |
| Operating Range | 7 mm (0.28″) |
| Resolution | 0.1 μm |
| Indicated Accuracy | 1 μm (P-P) |
| Sampling Cycle | 1 ms |
| Mechanical Response | 20 Hz |
| Measuring Force | Downward: 1.0 N / Side: 0.95 N / Upward: 0.9 N |
| Operation Indicator | 2-color LED (red/green) |
| Enclosure Rating | IP67 (IEC60529, JIS) |
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F) |
| Relative Humidity | 10–85 % RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude (2 h each X, Y, Z) |
| Shock Resistance | 1000 m/s² (IEC60068-2-27) |
| Material (Main Body) | SUS430F stainless steel |
| Contact Material | SUS304 with cemented tungsten carbide tip |
| Dust Boot | NBR |
| Sensor Head Cable | Optional (connects to relay connector) |
| Weight | Approx. 40 g (0.16 lbs, without cable) |
Information About GT2-S5
The GT2-S5 belongs to the Keyence GT2 Series of high-accuracy contact sensors, built for stable measurement in industrial automation and metrology environments. Utilizing a differential transformer system, it provides highly linear and repeatable readings even under mechanical vibration or temperature fluctuation. With a 7 mm operating range and 1 μm indicated accuracy, this compact sensor ensures reliable performance across mounting orientations. Its IP67-rated stainless-steel construction resists dust, oil, and moisture, while a 2-color LED indicator (red/green) provides easy visual status confirmation. The GT2-S5 connects to a relay amplifier via an optional cable for flexible integration into measurement systems.
Key Features:
- High-Accuracy Measurement: 0.1 μm resolution and 1 μm (P-P) accuracy ensure precision for fine inspection tasks.
- Durable Detection System: Differential transformer design resists electrical noise and mechanical shock.
- Versatile Installation: Supports downward, side, and upward mounting orientations.
- Fast Response: 1 ms sampling cycle and 20 Hz mechanical response rate enable rapid data acquisition.
- Compact Pencil Type: Space-saving form factor for installation in multi-point gauging setups.
- Environmental Protection: IP67-rated stainless-steel housing provides superior resistance to oil, dust, and water.
- Temperature Stability: Operates reliably from -10 °C to +55 °C (14 °F to 131 °F).
- LED Status Indicator: Dual-color LED (red/green) displays operation and measurement status at a glance.
- Robust Construction: Designed with SUS430F and cemented tungsten carbide for long-term wear resistance.
- Shock and Vibration Resistant: Withstands up to 1000 m/s² shock and 10–55 Hz vibration for industrial use.
The GT2-S5 delivers consistent and ultra-precise measurements for machine tools, inspection systems, and precision component manufacturing.
