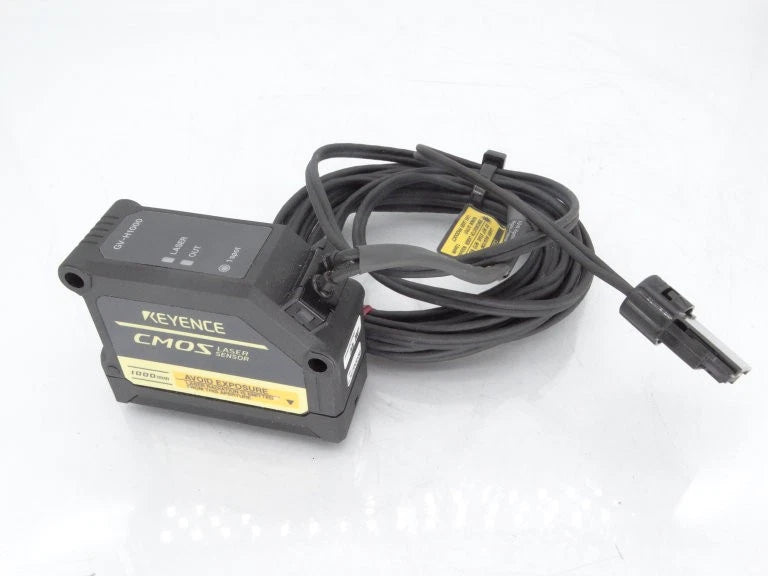

GV-H1000 | Keyence Ultra-Long-Range CMOS Laser Sensor Head, 200–1000 mm, IP67
- Regular price
- $432.00
- Sale price
- $432.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: GV-H1000
Description
The Keyence GV-H1000 (part number GV-H1000) is an ultra-long-range laser sensor head designed for precision distance detection in industrial environments. Utilizing a visible 655 nm semiconductor laser, it achieves reliable detection over a range of 200 to 1000 mm with exceptional repeatability. Built with IP67 protection, the GV-H1000 provides durable and accurate performance in demanding measurement and positioning applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | GV-H1000 |
| Subcategory | Laser Gauging System |
| Type | Ultra long-range laser sensor head |
| Detection Method | CMOS laser sensor |
| Light Source | Visible semiconductor laser (655 nm) |
| Laser Class | Class 2 (560 µW) per FDA, IEC, and JIS standards |
| Detection Distance | 200 to 1000 mm (7.87" to 39.37") |
| Display Range | 810 to -175 (amplifier display) |
| Detection Deviation | ±20 mm at 200–800 mm / ±30 mm at 800–1000 mm |
| Spot Diameter | Ø1.8 mm (at 1000 mm distance) |
| Status Indicators | Red LED (output), Green LED (emission and spot alignment) |
| Enclosure Rating | IP67 (IEC60529) |
| Operating Ambient Light | 5000 lux (lamp) / 10000 lux (sunlight) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Relative Humidity | 35% to 85% RH (no condensation) |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude, 2 h in each X, Y, Z direction |
| Housing Material | PBT (housing), SUS304 (metal), Polyarylate (display), Glass (lens) |
| Cable Material | PVC |
| Cable Length | 2 m (standard), optional 3 m |
| Weight | Approx. 0.40 lbs (210 g) |
Information About GV-H1000
The GV-H1000 is part of the Keyence GV Series CMOS laser sensor lineup, optimized for long-distance, high-accuracy detection. The sensor employs a visible Class 2 laser light source and integrates advanced CMOS detection for stable readings even on challenging materials. Its rugged PBT and SUS304 stainless steel housing, combined with a polyarylate display and glass lens cover, ensures consistent operation under industrial vibration, temperature, and lighting conditions. The GV-H1000 connects to amplifier units via a 2 m or 3 m cable, making it ideal for automated inspection, object positioning, and profile measurement.
Key Features:
- Ultra Long-Range Detection: Accurate measurement from 200 to 1000 mm for diverse target distances.
- Visible Red Laser Source: 655 nm semiconductor laser allows for easy alignment and setup.
- High Precision: ±20 mm deviation (typical) over long detection distances ensures stable readings.
- Class 2 Laser Compliance: Meets international safety standards (FDA, IEC, JIS).
- Environmental Durability: IP67 rating protects against dust, oil, and water ingress.
- Wide Operating Conditions: Performs reliably from -10°C to +50°C and up to 85% RH.
- Ambient Light Resistance: Withstands up to 10,000 lux sunlight and 5,000 lux incandescent light.
- Compact and Rugged Construction: PBT and SUS304 housing with a durable glass lens cover.
- LED Status Indicators: Red and green LEDs display power, emission, and alignment status.
- CMOS Detection Method: Maintains accuracy on reflective and dark surfaces.
The GV-H1000 delivers precise long-range laser sensing performance suitable for distance measurement, alignment, and automation inspection systems.
