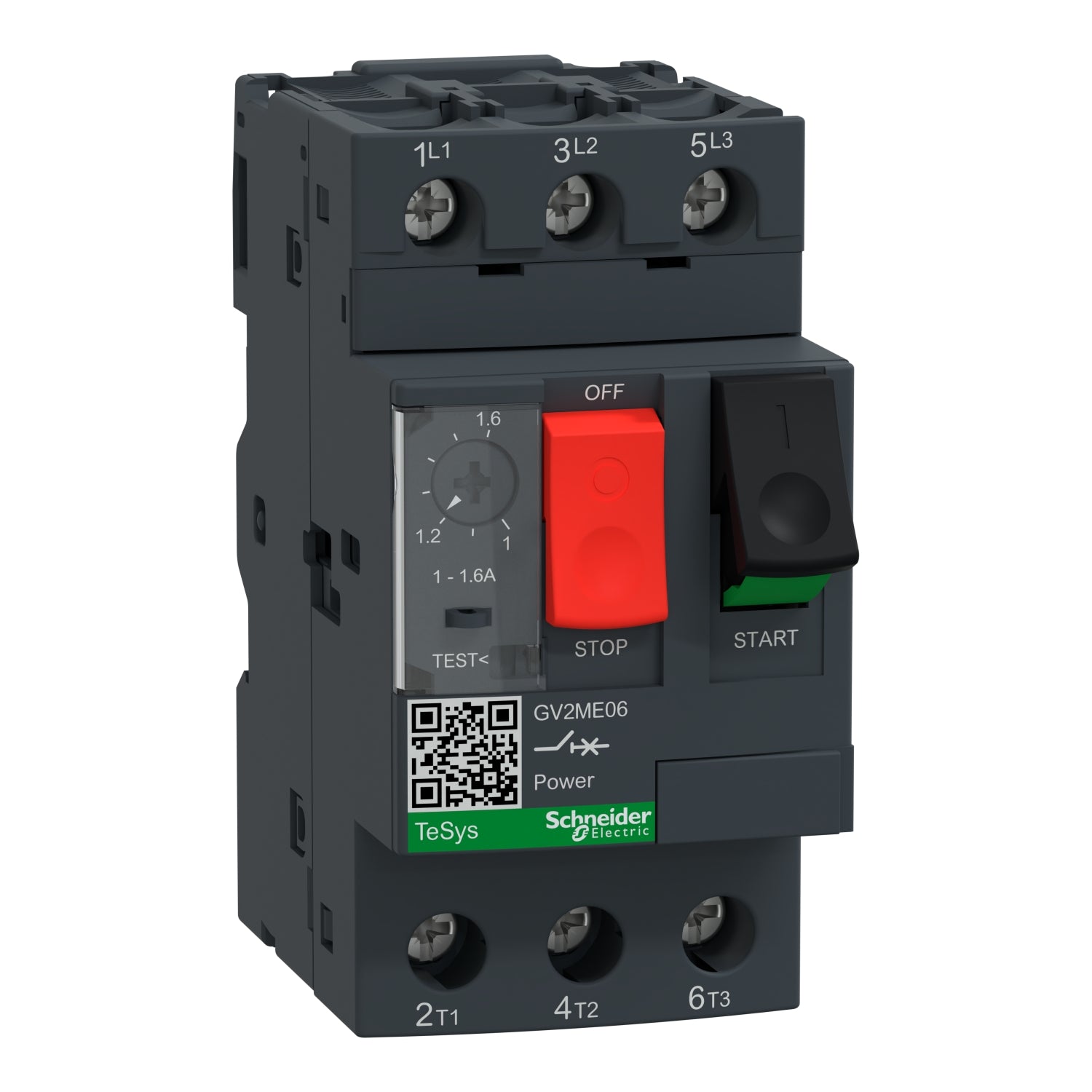

GV2ME06 | Schneider Electric TeSys Deca Manual Starter and Protector
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Do you need help?
Product Description P/N: GV2ME06
Description
The GV2ME06 TeSys Deca Manual Starter and Protector is a thermal magnetic circuit protector designed for manual isolation, manual motor control, and thermal overcurrent protection. This device is a compact unit that integrates these functionalities. The GV2ME06 model controls motors with full load currents ranging from 1 to 1.6 amperes and features push-button operation. It is a three-pole manual starter with horsepower ratings and Class 10 ambient compensated thermal overcurrent protection, adjustable within the specified current range.
Technical Specifications
Part # |
GV2ME06 |
Category |
Contactors & Starters |
Subcategory |
Starter |
Product or Component Type |
Motor circuit breaker |
Device short name |
GV2ME |
Device Application |
Motor protection |
Trip unit technology |
Thermal-magnetic |
Poles description |
3P |
Network type |
Network frequency |
|
50/60 Hz IEC 60947-4-1 |
Fixing mode |
35 mm symmetrical DIN rail clipped |
|
Panel screwed with adaptor plate |
Control Type |
Push-button |
Line Rated Current |
1.6 A |
Thermal protection adjustment range |
1…1.6 A IEC 60947-4-1 |
Magnetic tripping current |
22.5 A |
[Ith] conventional free air thermal current |
1.6 A IEC 60947-4-1 |
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-2 |
[Ui] rated insulation voltage |
690 V AC 50/60 Hz IEC 60947-2 |
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947-2 |
Phase failure sensitivity |
Yes IEC 60947-4-1 |
Suitability for isolation |
Yes IEC 60947-1 § 7-1-6 |
Power dissipation per pole |
2.5 W |
Mechanical durability |
100000 cycles |
Rated duty |
Continuous IEC 60947-4-1 |
Tightening torque |
15.05 lbf.in (1.7 N.m) screw clamp terminal |
Width |
1.77 in (45 mm) |
Height |
3.50 in (89 mm) |
Depth |
3.09 in (78.5 mm) |
Net Weight |
0.57 lb(US) (0.26 kg) |
Color |
Dark grey |
Information About GV2ME06
The GV2ME06 from TeSys Deca is a manual starter and protector designed to offer manual isolation, manual motor control, and thermal overcurrent protection within a single compact unit. This device serves as a basic motor starter capable of controlling motors with full load currents of up to 32 A.
Featuring a three-pole configuration with horsepower ratings, the manual starter is operated through push buttons, providing intuitive control over motor functions. The Class 10 ambient compensated thermal overcurrent protection offered by the GV2ME06 is adjustable within the range of 1 to 1.6 amperes, ensuring efficient and reliable protection against thermal overloads.
Equipped with screw clamp terminals, the GV2ME06 facilitates secure and convenient electrical connections. Furthermore, this device boasts multi-standards certification, including compliance with standards set by IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring its suitability for various applications across different industries. Additionally, the GV2ME06 is Green Premium compliant, adhering to environmental regulations such as RoHS and REACh.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
