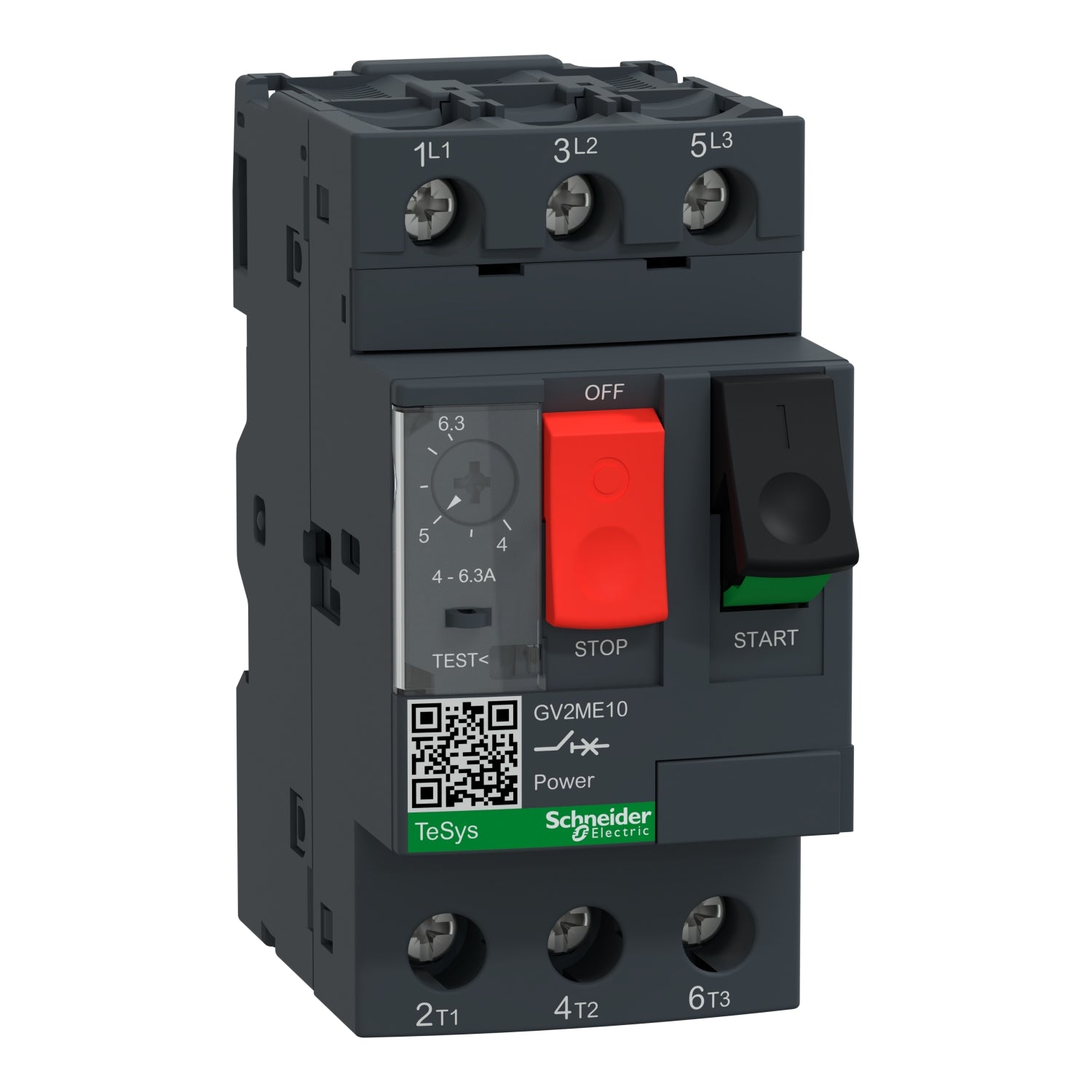

Product Description P/N: GV2ME10
Description
The GV2ME10 is a TeSys GV motor circuit breaker featuring three poles (3P) with a current rating of 4-6.3A. It is designed for 3-phase motor applications up to 2.2kW at 400V. This motor circuit breaker provides thermal-magnetic protection, with a thermal setting range of 4-6.3A and magnetic tripping at 13 times the nominal current (13xIn). It has a high breaking capacity (Icu) of 100kA at 400V.
The GV2ME10 utilizes screw clamp terminals for connection. It supports start-stop control via a push-button mechanism, which is rated for 100,000 cycles under AC-3 duty. This motor circuit breaker is certified by multiple standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring broad compliance and safety. Additionally, it is Green Premium compliant, meeting RoHS and REACh environmental standards.
Technical Specifications
|
Part # |
GV2ME10 |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter |
|
Range |
TeSys Deca |
|
Product Name |
TeSys GV2, TeSys Deca |
|
Product or Component Type |
Motor Circuit Breaker |
|
Device Short Name |
GV2ME |
|
Device Application |
Motor Protection |
|
Trip Unit Technology |
Thermal-Magnetic |
|
Poles Description |
3P |
|
Network Type |
AC |
|
Network Frequency |
50/60 Hz |
|
Control Type |
Push-Button |
|
Line Rated Current |
6.3 A |
|
Thermal Protection Adjustment Range |
4-6.3 A IEC 60947-4-1 |
|
Magnetic Tripping Current |
78 A |
|
[Ith] Conventional Free Air Thermal Current |
6.3 A IEC 60947-4-1 |
|
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Ui] Rated Insulation Voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] Rated Impulse Withstand Voltage |
6 kV IEC 60947-2 |
|
Phase Failure Sensitivity |
Yes IEC 60947-4-1 |
|
Suitability for Isolation |
Yes IEC 60947-1 § 7-1-6 |
|
Power Dissipation per Pole |
2.5 W |
|
Mechanical Durability |
100,000 cycles |
|
Electrical Durability |
100,000 cycles AC-3 415 V In, 100,000 cycles AC-3e 415 V In |
|
Rated Duty |
Continuous IEC 60947-4-1 |
|
Tightening Torque |
15.05 lbf.in (1.7 N.m) screw clamp terminal |
|
Width |
1.77 in (45 mm) |
|
Height |
3.50 in (89 mm) |
|
Depth |
3.09 in (78.5 mm) |
|
Net Weight |
0.57 lb(US) (0.26 kg) |
|
Color |
Dark Grey |
Information About GV2ME10
The GV2ME10 is a motor circuit breaker from the TeSys GV2 series designed for 3-phase motor applications. It features three poles (3P) and is rated at 6.3A/690V, suitable for use with 2.2kW motors at 400V.
This circuit breaker offers thermal-magnetic protection with a thermal setting range of 4-6.3A and magnetic tripping at 13 times the nominal current (In). It boasts a high breaking capacity (Icu) of 100kA at 400V, ensuring efficient operation and safety in case of overload or short circuit.
The GV2ME10 is equipped with screw clamp terminals for easy and secure connection, facilitating installation and maintenance. Its start-stop control is achieved by push-button operation, guaranteed for 100,000 cycles AC-3, providing reliable functionality over an extended period.
Certified by multiple standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, this motor circuit breaker meets stringent quality and safety requirements, ensuring compatibility with a wide range of applications and environments. Additionally, it is Green Premium compliant, adhering to RoHS/REACh regulations for environmentally friendly design and manufacturing.
