GV2ME14 | Schneider Electric Motor Circuit Breaker
- Regular price
- $88.00
- Sale price
- $88.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

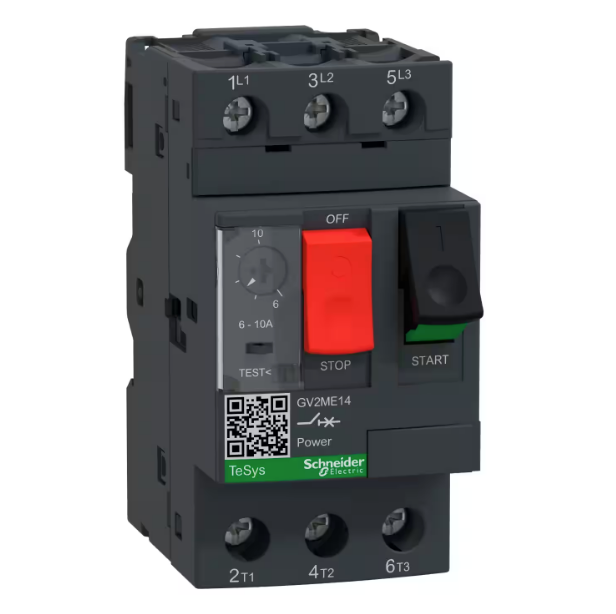

Product Description P/N: GV2ME14
Description
The GV2ME14 is a Motor Circuit Breaker from the TeSys GV series. It is designed for use in 3-phase motor applications with a voltage rating of 690V. Featuring 3 poles (3P), it has a rated current range of 6-10A and is suitable for motors ranging from 3-4kW at 400V. This circuit breaker provides thermal-magnetic protection with a thermal setting range of 6-10A and magnetic tripping at 13 times the rated current (13xIn). It offers a high breaking capacity of Icu 100kA at 400V.
Technical Specifications
|
Part # |
GV2ME14 |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter Product or Component |
|
Device short name |
GV2ME |
|
Device Application |
Motor protection |
|
Trip unit technology |
Thermal-magnetic |
|
Poles description |
3P |
|
Network type |
AC |
|
Network frequency |
50/60 Hz IEC 60947-4-1 |
|
Control Type |
Push-button |
|
Line Rated Current |
10 A |
|
Thermal protection adjustment range |
6…10 A IEC 60947-4-1 |
|
Magnetic tripping current |
138 A |
|
[Ith] conventional free air thermal current |
10 A IEC 60947-4-1 |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Ui] rated insulation voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947-2 |
|
Phase failure sensitivity |
Yes IEC 60947-4-1 |
|
Suitability for isolation |
Yes IEC 60947-1 § 7-1-6 |
|
Power dissipation per pole |
2.5 W |
|
Mechanical durability |
100000 cycles Rated duty Continuous IEC 60947-4-1 |
|
Tightening torque |
15.05 lbf.in (1.7 N.m) screw clamp terminal |
|
Width |
1.77 in (45 mm) |
|
Height |
3.50 in (89 mm) |
|
Depth |
3.09 in (78.5 mm) |
|
Net Weight |
0.57 lb(US) (0.26 kg) |
|
Color |
Dark grey |
|
IK degree of protection |
IK04 |
|
IP degree of protection |
IP20 IEC 60529 |
|
Climatic withstand |
IACS E10 |
|
Ambient Air Temperature for Storage |
-40…176 °F (-40…80 °C) |
|
Fire resistance |
1760 °F (960 °C) IEC 60695-2-11 |
|
Ambient air temperature for operation |
-4…140 °F (-20…60 °C) |
Information About GV2ME14
The GV2ME14 is a Motor Circuit Breaker from the TeSys GV2 series, designed for 3-phase motor applications. It features 3 poles (3P) and a rated current range of 6-10 A, suitable for motors ranging from 3-4 kW at 400V. This circuit breaker provides thermal-magnetic protection with a thermal setting range of 6-10 A and magnetic tripping at 13 times the rated current (13xIn). It offers a high breaking capacity of Icu 100 kA at 400V.
Connection is facilitated by screw clamp terminals, ensuring secure and reliable electrical connections. Start-stop control is achieved via push-button, guaranteed for 100,000 cycles under AC-3 conditions. The GV2ME14 is certified by multiple standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with international regulations and standards. Additionally, it is Green Premium compliant, adhering to RoHS and REACh regulations, reflecting its commitment to environmental sustainability.
