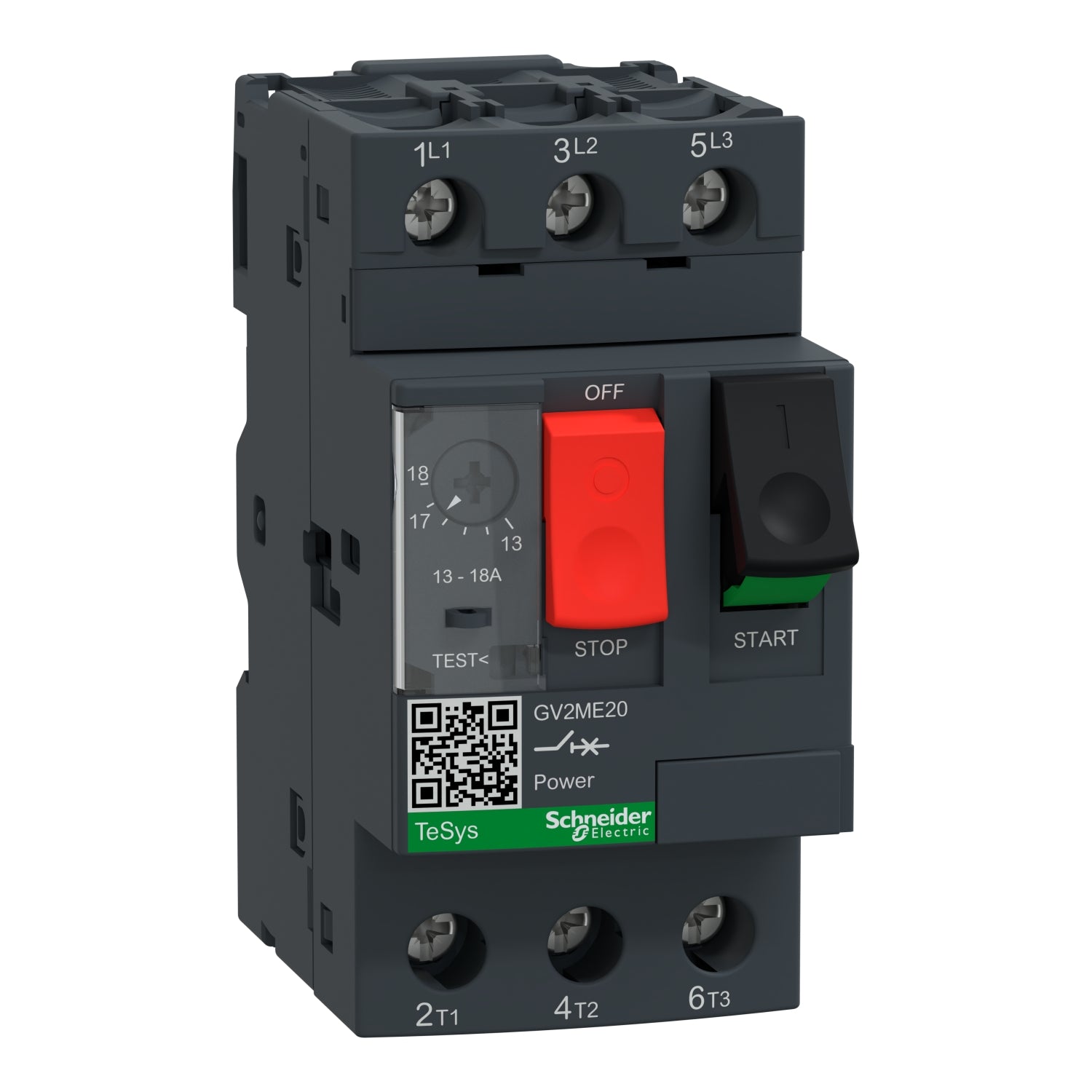

Product Description P/N: GV2ME20
Description
The GV2ME20 is a motor circuit breaker from the TeSys GV series by Schneider Electric. It features three poles (3P) and is designed for 3-phase motor applications, rated at 18A/690V, suitable for motors up to 7.5kW@400V. This circuit breaker provides thermal-magnetic protection with a thermal setting range of 13-18A and magnetic tripping at 13 times the nominal current (13xIn), ensuring effective overcurrent protection. It boasts a high breaking capacity of Icu 15kA@400V, enhancing safety in operation.
Technical Specifications
|
Part Number |
GV2ME20 |
|
Category |
Contactors & Starters |
|
Subcategory |
Motor Circuit Breaker |
|
Device Short Name |
GV2ME |
|
Application |
Motor Protection |
|
Trip Unit Technology |
Thermal-Magnetic |
|
Poles |
3P |
|
Network Type |
AC |
|
Network Frequency |
50/60 Hz conforming to IEC 60947-4-1 |
|
Control Type |
Push-Button |
|
Rated Current (In) |
18 A |
|
Thermal Protection Adjustment Range |
13…18 A conforming to IEC 60947-4-1 |
|
Magnetic Tripping Current |
223 A |
|
Conventional Free Air Thermal Current (Ith) |
18 A conforming to IEC 60947-4-1 |
|
Rated Operational Voltage (Ue) |
690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
Rated Insulation Voltage (Ui) |
690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
Rated Impulse Withstand Voltage (Uimp) |
6 kV conforming to IEC 60947-2 |
|
Phase Failure Sensitivity |
Yes conforming to IEC 60947-4-1 |
|
Suitability for Isolation |
Yes conforming to IEC 60947-1 § 7-1-6 |
|
Power Dissipation per Pole |
2.5 W |
|
Mechanical Durability |
100,000 cycles |
|
Rated Duty |
Continuous conforming to IEC 60947-4-1 |
|
Tightening Torque |
1.7 N.m - on screw clamp terminal |
|
Dimensions |
|
|
* Width |
45 mm |
|
* Height |
89 mm |
|
* Depth |
78.5 mm |
|
Net Weight |
0.26 kg |
|
Color |
Dark Grey |
|
IK Degree of Protection |
IK04 |
|
IP Degree of Protection |
IP20 conforming to IEC 60529 |
|
Climatic Withstand |
Conforming to IACS E10 |
|
Ambient Air Temperature (Storage) |
-40…80 °C |
|
Fire Resistance |
960 °C conforming to IEC 60695-2-11 |
|
Ambient Air Temperature (Operation) |
-20…60 °C |
Information About GV2ME20
The GV2ME20 is a motor circuit breaker from the TeSys GV2 series by Schneider Electric. It is designed with three poles (3P) and is rated at 18A/690V, making it suitable for 3-phase motor applications up to 7.5kW@400V. This circuit breaker offers thermal-magnetic protection with a thermal setting range of 13-18A, ensuring efficient overcurrent protection. It is equipped with magnetic tripping at 13 times the nominal current (13xIn) and features a high breaking capacity of Icu 15kA@400V, enhancing safety during operation.
Connection to the GV2ME20 is facilitated by screw clamp terminals, ensuring secure and reliable electrical connections. Start-stop control is achieved through a push-button mechanism, with a guaranteed lifespan of 100,000 cycles under AC-3 conditions, providing reliable performance in motor control applications.
Furthermore, the GV2ME20 is certified by multiple standards, including IEC (International Electrotechnical Commission), UL (Underwriters Laboratories), CSA (Canadian Standards Association), CCC (China Compulsory Certification), EAC (Eurasian Conformity), Marine, and ATEX (ATmosphères EXplosibles), ensuring compliance with global regulations and industry standards.
