GV2ME22 | Schneider Electric Motor Circuit Breaker
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

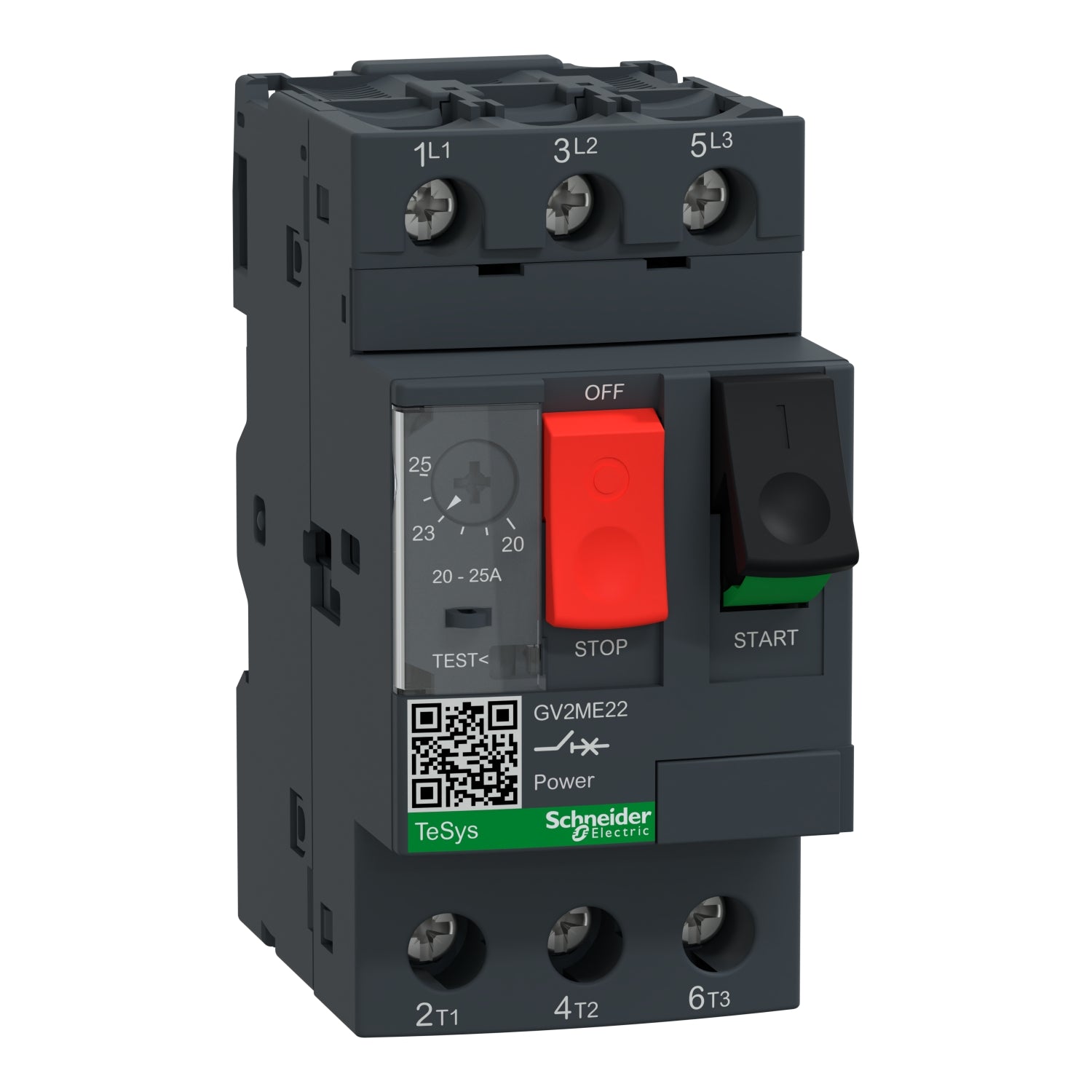

Product Description P/N: GV2ME22
Description
The GV2ME22 is a TeSys GV motor circuit breaker designed for 3-phase motor applications. It features 3 poles (3P) and a current rating of 25A at 690V, suitable for motors up to 11kW at 400V. This circuit breaker offers thermal-magnetic protection with a thermal setting range of 20-25A and magnetic tripping at 13 times the rated current (In). It boasts a high breaking capacity (Icu) of 15kA at 400V. Connection is facilitated by screw clamp terminals.
Technical Specifications
|
Part Number |
GV2ME22 |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter Product or Component Motor circuit breaker |
|
Device short name |
GV2ME |
|
Device Application |
Motor protection |
|
Trip unit technology |
Thermal-magnetic |
|
Poles description |
3P |
|
Network type |
AC |
|
Network frequency |
50/60 Hz IEC 60947-4-1 |
|
Fixing mode |
35 mm symmetrical DIN rail clipped |
|
Motor power kW |
11 kW 400/415 V AC 50/60 Hz |
|
Control Type |
Push-button |
|
Line Rated Current |
25 A |
|
Thermal protection adjustment range |
20…25 A IEC 60947-4-1 |
|
Magnetic tripping current |
327 A |
|
[Ith] conventional free air thermal current |
25 A IEC 60947-4-1 |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Ui] rated insulation voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947-2 |
|
Phase failure sensitivity |
Yes IEC 60947-4-1 |
|
Suitability for isolation |
Yes IEC 60947-1 § 7-1-6 |
|
Power dissipation per pole |
2.5 W |
|
Mechanical durability |
100000 cycles |
|
Electrical durability |
100000 cycles AC-3 415 V In Rated duty |
|
Tightening torque |
15.05 lbf.in (1.7 N.m) screw clamp terminal |
|
Width |
1.77 in (45 mm) |
|
Height |
3.50 in (89 mm) |
|
Depth |
3.09 in (78.5 mm) |
|
Net Weight |
0.57 lb(US) (0.26 kg) |
|
Color |
Dark grey |
Information About GV2ME22
The GV2ME22 is a TeSys GV motor circuit breaker designed for 3-phase motor applications. It features 3 poles (3P) and a current rating of 25A at 690V, suitable for motors up to 11kW at 400V. This circuit breaker offers thermal-magnetic protection with a thermal setting range of 20-25A and magnetic tripping at 13 times the rated current (In). It boasts a high breaking capacity (Icu) of 15kA at 400V. Connection is facilitated by screw clamp terminals.
Control of the motor circuit breaker is achieved through push-button operation, with start-stop functionality guaranteed for 100,000 cycles in AC-3 applications. The GV2ME22 is certified to multiple standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX. Additionally, it is compliant with Green Premium standards, ensuring adherence to RoHS and REACh regulations.
Manufacturer informatio
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The GV2ME22 is a TeSys GV motor circuit breaker designed for 3-phase motor applications. It features 3 poles (3P) and a current rating of 25A at 690V, suitable for motors up to 11kW at 400V. This circuit breaker offers thermal-magnetic protection with a thermal setting range of 20-25A and magnetic tripping at 13 times the rated current (In). It boasts a high breaking capacity (Icu) of 15kA at 400V. Connection is facilitated by screw clamp terminals.
Technical Specifications
|
Part Number |
GV2ME22 |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter Product or Component Motor circuit breaker |
|
Device short name |
GV2ME |
|
Device Application |
Motor protection |
|
Trip unit technology |
Thermal-magnetic |
|
Poles description |
3P |
|
Network type |
AC |
|
Network frequency |
50/60 Hz IEC 60947-4-1 |
|
Fixing mode |
35 mm symmetrical DIN rail clipped |
|
Motor power kW |
11 kW 400/415 V AC 50/60 Hz |
|
Control Type |
Push-button |
|
Line Rated Current |
25 A |
|
Thermal protection adjustment range |
20…25 A IEC 60947-4-1 |
|
Magnetic tripping current |
327 A |
|
[Ith] conventional free air thermal current |
25 A IEC 60947-4-1 |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Ui] rated insulation voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947-2 |
|
Phase failure sensitivity |
Yes IEC 60947-4-1 |
|
Suitability for isolation |
Yes IEC 60947-1 § 7-1-6 |
|
Power dissipation per pole |
2.5 W |
|
Mechanical durability |
100000 cycles |
|
Electrical durability |
100000 cycles AC-3 415 V In Rated duty |
|
Tightening torque |
15.05 lbf.in (1.7 N.m) screw clamp terminal |
|
Width |
1.77 in (45 mm) |
|
Height |
3.50 in (89 mm) |
|
Depth |
3.09 in (78.5 mm) |
|
Net Weight |
0.57 lb(US) (0.26 kg) |
|
Color |
Dark grey |
Information About GV2ME22
The GV2ME22 is a TeSys GV motor circuit breaker designed for 3-phase motor applications. It features 3 poles (3P) and a current rating of 25A at 690V, suitable for motors up to 11kW at 400V. This circuit breaker offers thermal-magnetic protection with a thermal setting range of 20-25A and magnetic tripping at 13 times the rated current (In). It boasts a high breaking capacity (Icu) of 15kA at 400V. Connection is facilitated by screw clamp terminals.
Control of the motor circuit breaker is achieved through push-button operation, with start-stop functionality guaranteed for 100,000 cycles in AC-3 applications. The GV2ME22 is certified to multiple standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX. Additionally, it is compliant with Green Premium standards, ensuring adherence to RoHS and REACh regulations.
Manufacturer informatio
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
