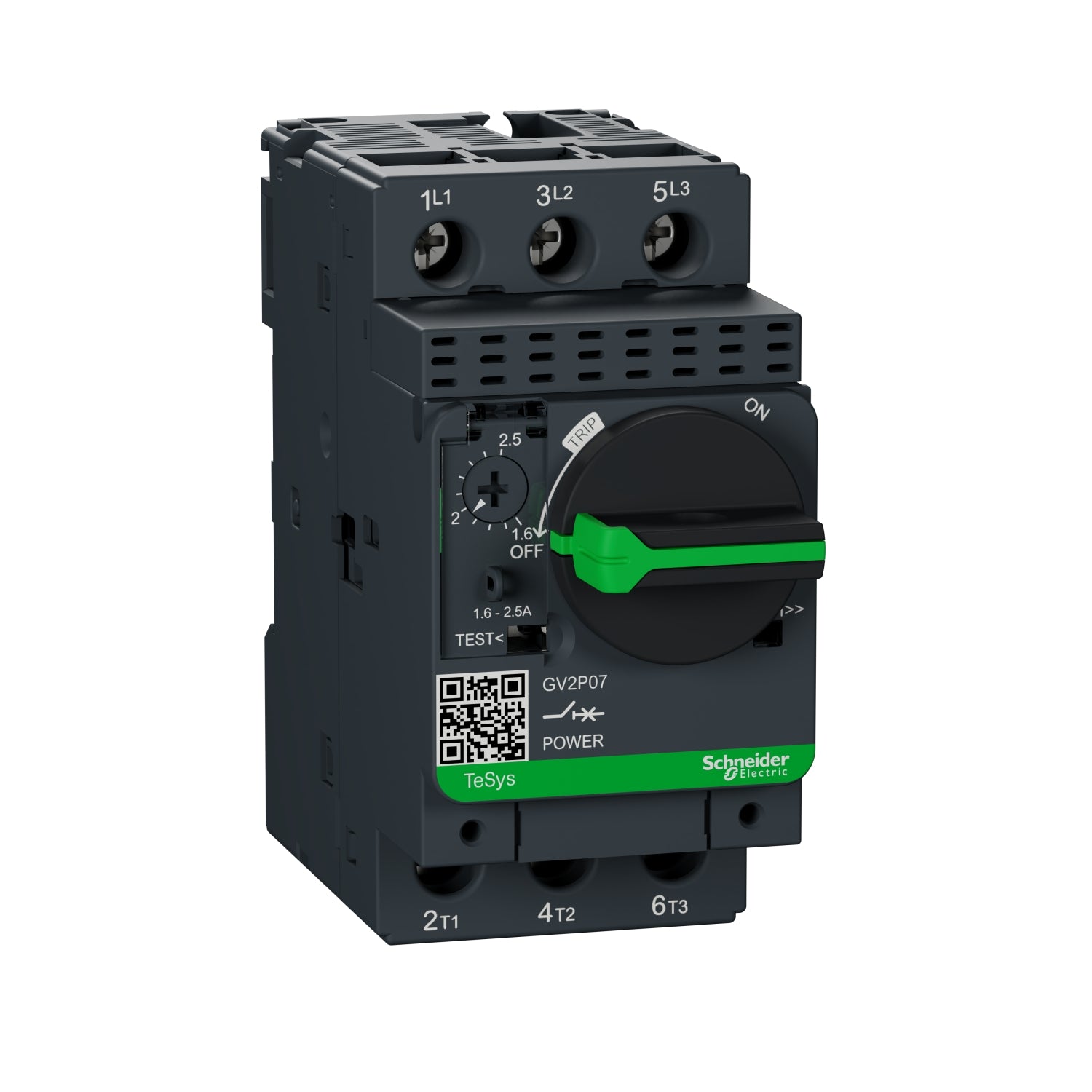

GV2P07 | Schneider Electric TeSys GV2 Manual Motor Starter 1.6–2.5 A
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GV2P07
Description
The Schneider Electric GV2P07 is a TeSys GV2 manual motor starter designed to provide manual control, overload protection, and short-circuit protection for small motors. With an adjustable 1.6 to 2.5 A thermal setting and rotary-handle operation, it ensures safe and reliable motor startup in industrial and commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | GV2P07 |
| Subcategory | Starter |
| Series | GV2 |
| Type | Non-Reversing |
| Voltage Rating | 690 VAC |
| Amperage Rating | 1.6 to 2.5 A |
| Frequency Rating | 50/60 Hz |
| Motor Power | 0.667 hp / 0.5 hp / 1 hp / 1.5 hp |
| Number of Poles | 3 |
| Control Type | Rotary Handle |
| Overload Relay | Ambient-Compensated Bimetal (Class 10) |
| Connection Type | Screw Clamp |
| Enclosure Type | IP20 / IK04 |
| Operating Cycles | 100,000 cycles |
| Operating Temperature | −20 to 60 °C |
| Dimensions | 45 mm W × 97 mm D × 89 mm H (1.77 in × 3.82 in × 3.50 in) |
| Application | Manual motor control and protection |
Information About GV2P07
The GV2P07 is a Schneider Electric TeSys GV2 manual motor starter that integrates motor control, overload protection, and short-circuit protection within a single compact device. Designed for motors up to 1.5 hp, it features an adjustable thermal trip range of 1.6–2.5 A and an ambient-compensated bimetal overload relay for consistent protection under varying temperatures. Its rotary-handle actuator provides reliable manual start-stop operation while ensuring clear visual status indication. Built with screw clamp terminals and a compact form factor, the GV2P07 installs easily in control panels and supports a wide range of industrial motor applications.
Key Features:
- Integrated Motor Protection: Offers thermal overload and short-circuit protection within a single manual starter device.
- Adjustable Class 10 Overload Relay: Ambient-compensated bimetal design maintains trip accuracy across temperature variations.
- Robust Rotary Control: Provides reliable start-stop operation rated for 100,000 AC-3 duty cycles.
- Compact 3-Pole Construction: Supports motor control at up to 690 VAC with straightforward wiring via screw clamp terminals.
- Wide Operating Temperature Range: Performs consistently from −20 to 60 °C in industrial environments.
- TeSys GV2 System Compatibility: Designed for seamless integration with Schneider Electric motor control components.
- High Mechanical and Electrical Durability: Ensures long-term use in demanding machine and process applications.
- IP20/IK04 Protected Enclosure: Suitable for installation inside enclosed control panels.
The GV2P07 delivers the reliability and precision required for safe manual motor control and protection in a range of industrial applications.
