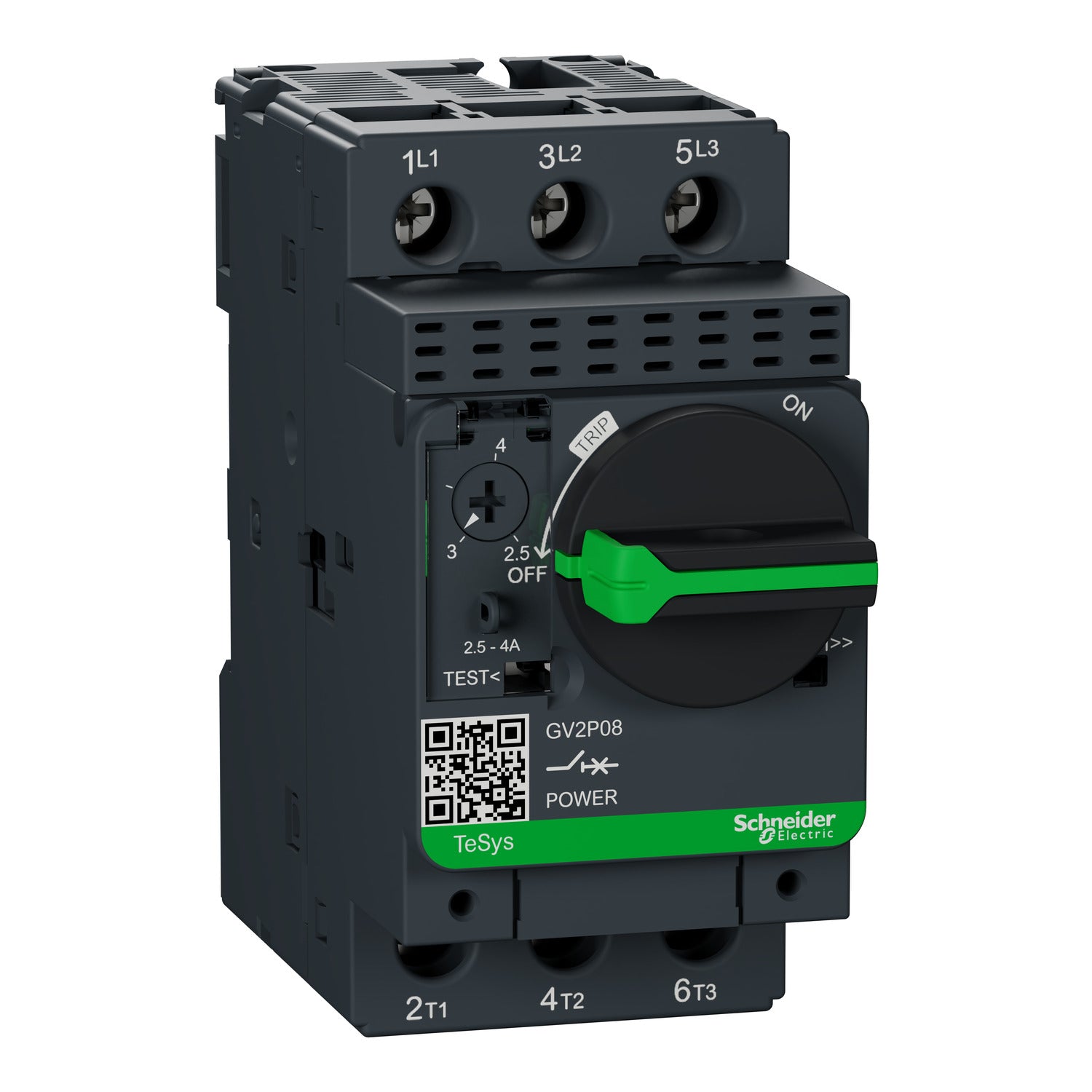

GV2P08 | Schneider Electric TeSys Deca Manual Starter and Protector
- Regular price
- $224.00
- Sale price
- $224.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: GV2P08
Description
The GV2P08, part of the TeSys Deca series, is a manual starter and protector designed to offer manual isolation, manual motor control, and thermal overcurrent protection within a single compact unit. This manual starter is capable of controlling motors with full load currents up to 32 A. It is a three-pole device with horsepower ratings and is operated via a rotary handle. The Class 10 ambient compensated thermal overcurrent protection is adjustable from 2.5 amperes to 4 amperes. The GV2P08 features screw clamp terminals for secure connections. Additionally, it is certified by multiple standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with various international regulations. Moreover, it is Green Premium compliant, adhering to RoHS/REACh regulations.
Technical Specifications
|
Part # |
GV2-P08 |
|
Category |
Circuit Breaker |
|
Subcategory |
Din Rail Mount Circuit Breaker |
|
Product or Component Type |
Motor circuit breaker |
|
Device short name |
GV2P |
|
Device Application |
Motor protection |
|
Trip unit technology |
Thermal-magnetic |
|
Poles description |
3P |
|
Network type |
AC |
|
Network frequency |
50/60 Hz IEC 60947-4-1 |
|
Fixing mode |
35 mm symmetrical DIN rail clipped |
|
|
Panel screwed with 2 x M4 screws |
|
Control Type |
Rotary handle |
|
Line Rated Current |
4 A |
|
Thermal protection adjustment range |
2.5…4 A IEC 60947-4-1 |
|
Magnetic tripping current |
51 A |
|
[Ith] conventional free air thermal current |
4 A IEC 60947-4-1 |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Ui] rated insulation voltage |
690 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947-2 |
|
Phase failure sensitivity |
Yes IEC 60947-4-1 |
|
Suitability for isolation |
Yes IEC 60947-1 § 7-1-6 |
|
Power dissipation per pole |
2.5 W |
|
Mechanical durability |
100000 cycles |
|
Electrical durability |
100000 cycles AC-3 415 V In |
|
|
100000 cycles AC-3e 415 V In |
|
Rated duty |
Continuous IEC 60947-4-1 |
|
Tightening torque |
15.05 lbf.in (1.7 N.m) screw clamp terminal |
|
Width |
1.77 in (45 mm) |
|
Height |
3.50 in (89 mm) |
|
Depth |
3.82 in (97 mm) |
|
color |
Dark grey |
|
IK degree of protection |
IK04 |
|
IP degree of protection |
IP20 IEC 60529 |
|
Climatic withstand |
IACS E10 |
|
Ambient Air Temperature for Storage |
-40…176 °F (-40…80 °C) |
|
Fire resistance |
1760 °F (960 °C) IEC 60695-2-11 |
|
Ambient air temperature for operation |
-4…140 °F (-20…60 °C) |
|
Mechanical robustness |
Shocks 30 Gn for 11 ms |
|
|
Vibrations 5 Gn, 5...150 Hz |
|
Operating altitude |
6561.68 ft (2000 m) |
Information About GV2P08
The GV2P08, part of the TeSys Deca series, is a manual starter and protector designed to offer manual isolation, manual motor control, and thermal overcurrent protection within a single compact unit. This device is equipped to control motors with full load currents up to 32 A. Featuring three poles with horsepower ratings, it is operated via a rotary handle for user convenience. The Class 10 ambient compensated thermal overcurrent protection is adjustable within a range from 2.5 amperes to 4 amperes, ensuring optimal safety and protection for connected equipment.
Furthermore, the GV2P08 is equipped with screw clamp terminals, facilitating secure and reliable electrical connections. It holds multi-standards certification, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with various international safety and performance standards. Additionally, it is Green Premium compliant, adhering to RoHS/REACh regulations for environmentally friendly manufacturing processes and materials.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
