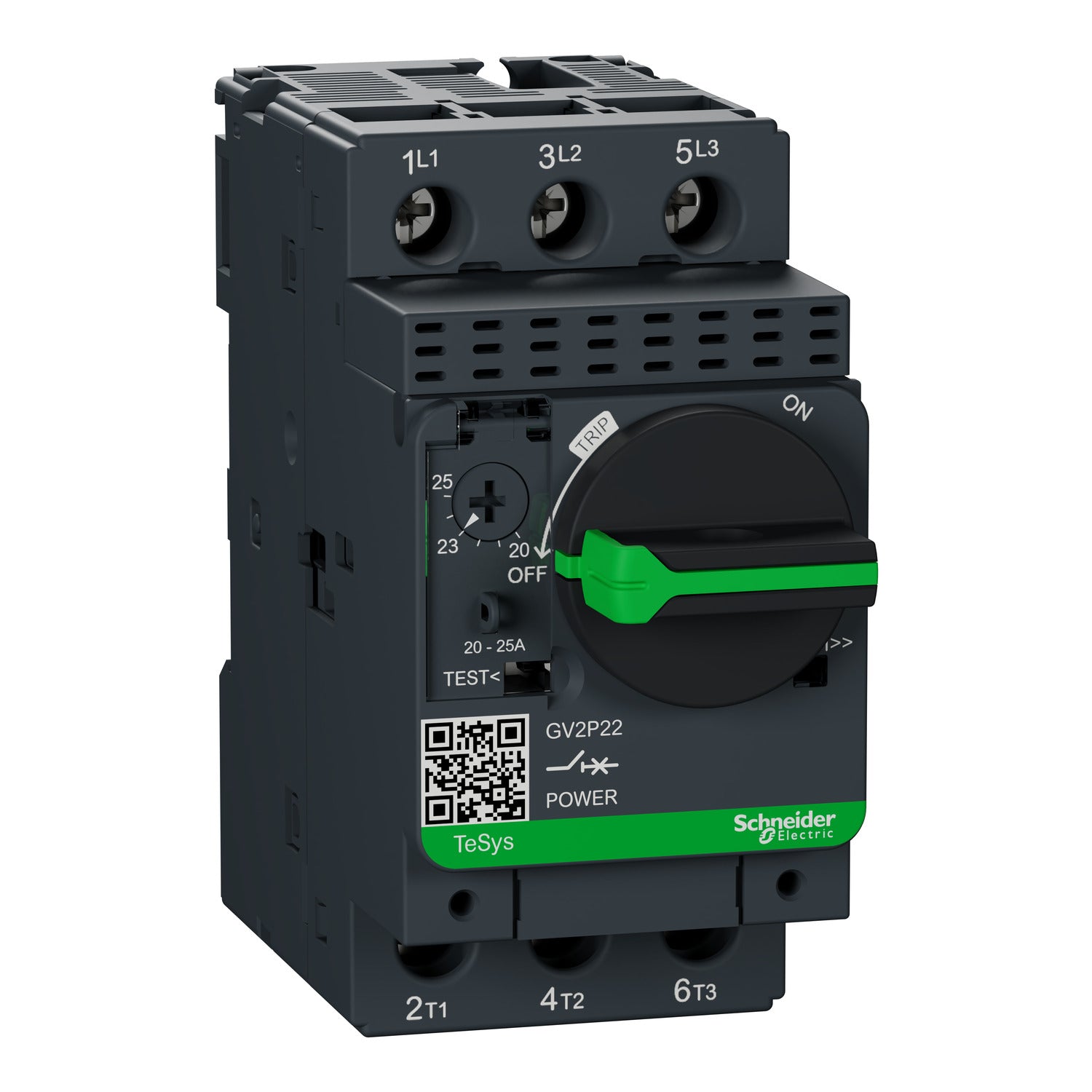

GV2P22 | Schneider Electric TeSys Deca Manual Starter and Protector
- Regular price
- $124.00
- Sale price
- $124.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: GV2P22
Description
The GV2P22 is a TeSys Deca Manual Starter and Protector manufactured by Schneider Electric. This device integrates manual isolation, manual motor control, and thermal overcurrent protection into a single compact unit.
Designed as a basic motor starter, the GV2P22 is capable of controlling motors with full load currents of up to 32 A. It features a three-pole configuration with horsepower ratings.
Operation of the manual starter is facilitated by a rotary handle, providing convenient manual control. The Class 10 ambient-compensated thermal overcurrent protection is adjustable within the range of 20 to 25 amperes.
Technical Specifications
|
Part # |
GV2P22 |
|
Category |
Circuit Breaker |
|
Subcategory |
Circuit Breaker Trip Range |
|
Product name |
TeSys GV2 |
|
Product or Component Type |
Motor circuit breaker |
|
Device Short Name |
GV2P |
|
Device Application |
Motor protection |
|
Trip Unit Technology |
Thermal-magnetic |
|
Poles Description |
3P |
|
Network Type |
AC |
|
Control Type |
Rotary handle |
|
[In] Rated Current |
25 A |
|
Thermal Protection Adjustment Range |
20…25 A conforming to IEC 60947-4-1 |
|
Magnetic Tripping Current |
327 A |
|
[Ith] Conventional Free Air Thermal Current |
25 A conforming to IEC 60947-4-1 |
|
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
[Ui] Rated Insulation Voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
[Uimp] Rated Impulse Withstand Voltage |
6 kV conforming to IEC 60947-2 |
|
Phase Failure Sensitivity |
Yes conforming to IEC 60947-4-1 |
|
Suitability for Isolation |
Yes conforming to IEC 60947-1 § 7-1-6 |
|
Power Dissipation per Pole |
2.5 W |
|
Mechanical Durability |
100000 cycles |
|
Electrical Durability |
100000 cycles for AC-3 at 415 V In |
|
|
100000 cycles for AC-3e at 415 V In |
|
Rated Duty |
Continuous conforming to IEC 60947-4-1 |
|
Tightening Torque |
1.7 N.m - on screw clamp terminal |
|
Width |
45 mm |
|
Height |
89 mm |
|
Depth |
97 mm |
|
Colour |
Dark grey |
Information About GV2P22
The GV2P22, part of the TeSys Deca Manual Starter and Protector series manufactured by Schneider Electric, is a versatile device offering manual isolation, manual motor control, and thermal overcurrent protection within a single compact unit.
Designed as a basic motor starter, the GV2P22 is capable of controlling motors with full load currents of up to 32 A. It features a three-pole configuration with horsepower ratings, providing compatibility with various motor applications.
Operation of the manual starter is facilitated by a rotary handle, offering convenient manual control over motor operations. The device incorporates Class 10 ambient-compensated thermal overcurrent protection, which is adjustable within the range of 20 to 25 amperes, ensuring optimal protection for the connected equipment.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
