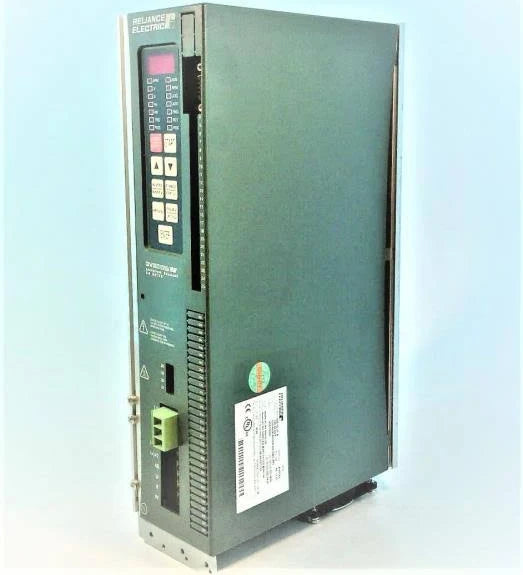

GV3000E-AC008-AA-DBU | General Electric Bookshelf Style Drive

Description

The Reliance Electric Bookshelf Drive GV3000E-AC008-AA-DBU, belonging to the GV3000 series, lacks a CE or RFI filter and operates on a V/Hz current rating of 8.5 A. Additionally, it is associated with two alternative part numbers: 85ER4060, known as the US model number, and 896.05.11, referred to as the European stock number. These alternative part numbers aid in identifying the drive's features and functions, with the ER in the US model number signifying its type as a bookshelf drive without a filter.

As the most basic version of the GV3000E drives, the GV3000E-AC008-AA-DBU includes only a braking unit and DC-bus terminals. The catalog number further aids in identifying various technical data sets. The section of the part number denoted as AC008 specifies the motor power and inverter current. The drive can operate in two regulator versions: vector or V/Hz, indicating differences in operational modes. In V/Hz mode, the inverter current is 8.5 A at 2 kHz, with the motor power rated at 3 A at 400 VAC.

Technical Specifications

 Information About GV3000E-AC008-AA-DBU

The GV3000E-AC008-AA-DBU is a high-performance AC drive manufactured by Reliance Electric, part of the renowned GV3000 series. This drive is designed for demanding industrial applications, offering robust performance, precise control, and reliability. It features a built-in keypad for easy configuration and monitoring, enhancing user convenience and operational efficiency.

This drive, identified in the US by model number 85ER4060 and in Europe by stock number 896.05.11, operates on a 3-phase system with an input voltage range of 380-460 VAC. This wide voltage range ensures compatibility with various industrial power systems, providing flexibility and ease of integration into different environments. The drive is capable of handling input currents up to 13 A and has an input power rating of 10.4 KVA, making it suitable for medium-duty applications.

The GV3000E-AC008-AA-DBU is designed as a bookshelf drive without a CE filter, optimizing its footprint and allowing for efficient use of space in control panels. This design is particularly beneficial for installations where space is at a premium. The drive is housed in an IP20-rated enclosure, providing protection against solid objects and ensuring reliable operation in industrial settings.

Operating at a frequency of 50/60Hz, the GV3000E-AC008-AA-DBU is versatile and suitable for global applications. It delivers 5 HP (horsepower), providing ample power for various industrial machinery and processes. The drive's vector regulator motor power rating is 3 A at 400 VAC, and its V/Hz regulator inverter current is 8.5 A, highlighting its capability to deliver precise motor control and efficient energy usage.

The drive's built-in keypad/display facilitates easy programming and real-time monitoring, allowing operators to quickly adjust settings and view operational status. This feature significantly enhances the usability of the drive, making it accessible for both novice and experienced users.

Reliance Electric provides comprehensive documentation for the GV3000E-AC008-AA-DBU, with instruction manuals D2-3426 and D2-3427 offering detailed guidance on installation, configuration, and maintenance. These manuals ensure that users can fully leverage the drive's capabilities and maintain optimal performance over its lifespan.

The GV3000E-AC008-AA-DBU is engineered for high efficiency and reliability, designed to withstand the rigorous demands of industrial environments. Its robust construction, advanced features, and ease of use make it an excellent choice for applications requiring precise motor control and dependable performance.

In summary, the Reliance Electric GV3000E-AC008-AA-DBU AC drive is a versatile and powerful solution for industrial motor control. Its wide input voltage range, robust construction, and user-friendly interface ensure it meets the needs of various applications. Whether used in manufacturing, processing, or other industrial settings, the GV3000E-AC008-AA-DBU delivers reliable and efficient performance, backed by detailed documentation and the trusted quality of Reliance Electric.
