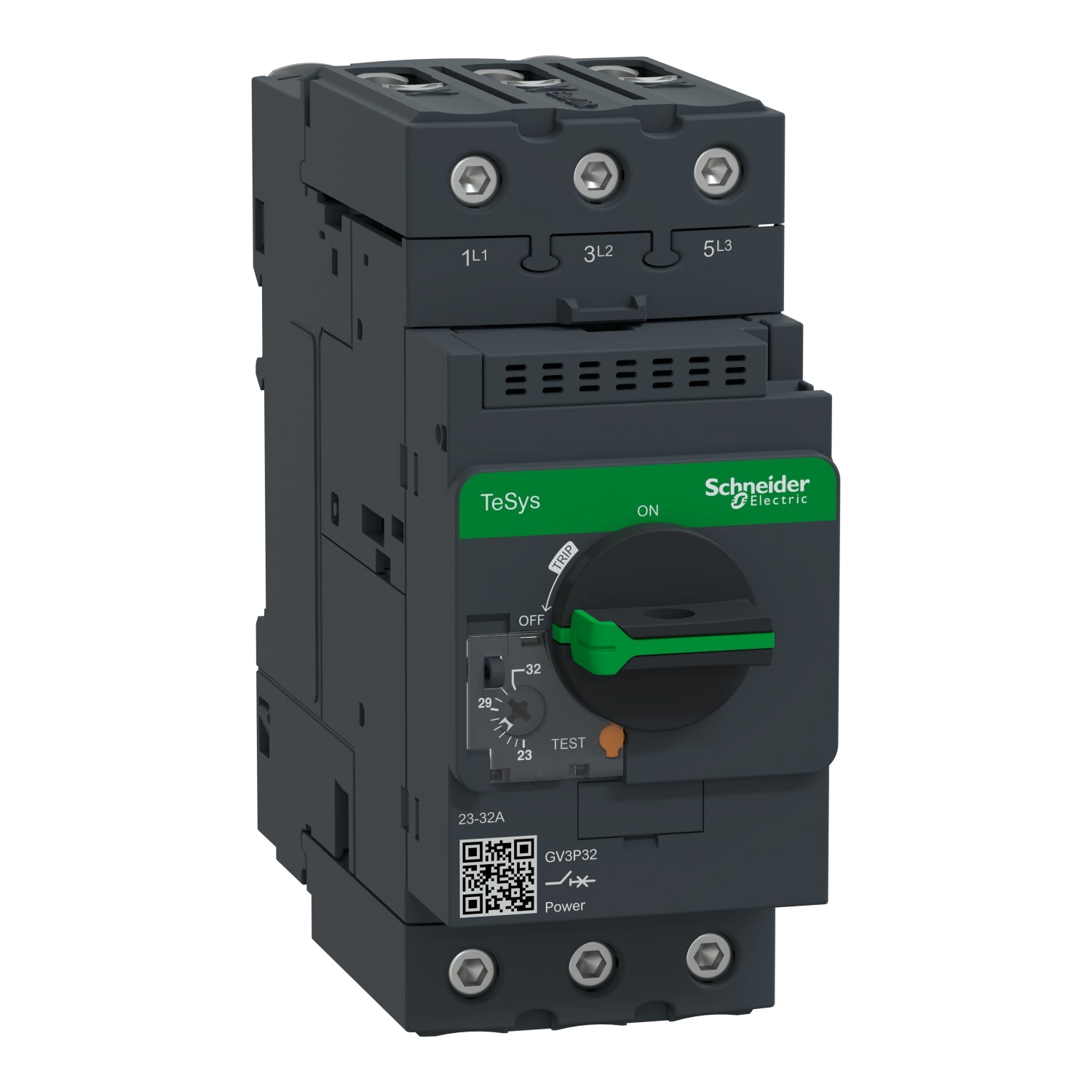

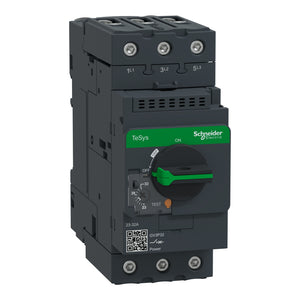

GV3P32 | Schneider Electric TeSys GV3 Motor Protection Circuit Breaker 23–32 A, 3-Pole
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GV3P32
Description
The Schneider Electric GV3P32 is a TeSys GV3 thermal-magnetic motor protection circuit breaker designed for safeguarding three-phase motors in industrial applications. With an adjustable current range of 23–32 A and a rugged 3-pole design, it provides reliable overload, short-circuit, and manual motor control functions. Suitable for both DIN-rail and panel mounting, it offers dependable motor protection in compact installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | GV3P32 |
| Subcategory | Starter |
| Series | TeSys |
| Amperage | 23–32 A |
| Voltage Rating | 690 VAC |
| Poles | 3 |
| Phase | 3 |
| Protection Type | Thermal Magnetic |
| Actuator Type | Rotary Handle |
| Mounting Type | DIN Rail, Panel |
| Connection Type | Screw |
| Temperature Rating | −20 to 60 °C |
| Color | Dark Grey |
| Standards | EN/IEC, UL, CSA, CCC, EAC, BV, LROS, DNV-GL, ABS, UKCA, ATEX, REACh, RoHS |
| Breaking Capacity | High Icu up to 100 kA (per manufacturer series) |
| Motor Application Rating | Up to 15 kW @ 400 V |
| Mechanical Endurance | 50,000 cycles (AC-3 @ 415 V) |
Information About GV3P32
The GV3P32 is a Schneider Electric TeSys GV3 motor protection circuit breaker engineered to deliver comprehensive protection for motors operating up to 15 kW at 400 V. Its adjustable thermal setting range of 23–32 A and magnetic trip action at high fault levels provide dependable overload and short-circuit protection within a single device. With a rotary handle for manual start-stop control and a compact 55 mm width, it is well-suited for modern control panels requiring reliable motor isolation and protection. Designed for global compatibility, the GV3P32 supports DIN-rail and panel mounting and accepts auxiliary accessories for signaling, tripping, and integration into coordinated starter assemblies with TeSys contactors.
Key Features:
- Thermal-Magnetic Motor Protection: Provides overload (thermal) and short-circuit (magnetic) protection in one compact breaker.
- Adjustable 23–32 A Setting Range: Ensures proper coordination with a wide variety of three-phase motor loads.
- Rotary Manual Control: Enables reliable start-stop operation and padlocking capability for safety.
- High Breaking Capacity: Supports fault-level interruption up to 100 kA for demanding LV distribution networks.
- Dual Mounting Options: Installs on DIN rail or panel surfaces, offering flexibility for panel builders.
- TeSys System Compatibility: Combines with TeSys contactors for Type 1 or Type 2 coordinated motor starter solutions.
- Auxiliary Accessory Support: Accepts front or side-mounted auxiliaries for trip indication and status signaling.
- Robust Industrial Certification: Complies with IEC, UL, CSA, marine, and hazardous-location standards for global use.
The GV3P32 delivers the reliability and precision required for complete motor protection in industrial and commercial electrical systems.
