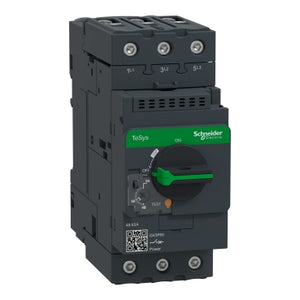

GV3P65 | Schneider Electric | Manual Starter and Protector
GV3P65 | Schneider Electric | Manual Starter and Protector

GV3P65 | Schneider Electric | Manual Starter and Protector

Part #: GV3P65 Manufactured by: Schneider Electric
Regular price
$229.00
Sale price
$229.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The TeSys Deca Manual Starter and Protector, known as the GV3, is a comprehensive solution designed to provide manual iso...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: GV3P65
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
GV3P65 | Schneider Electric | Manual Starter and Protector
    GV3P65 | Schneider Electric | Manual Starter and Protector
GV3P65 | Schneider Electric | Manual Starter and Protector

Product Description P/N: GV3P65

Description / Specifications

Description

The TeSys Deca Manual Starter and Protector, designated GV3, is a thermal magnetic circuit protector equipped with a rotary knob and EverLink BTR terminals. This device serves as a manual isolation, manual motor control, and thermal overcurrent protection solution, all within a single compact unit.

Designed for versatility, the GV3 manual starter and protector accommodates full load currents ranging from 48 to 65 amperes, offering comprehensive motor control capabilities. As a three-pole manual starter, it supports various horsepower ratings to suit diverse motor applications.

Operated via a rotary handle, the manual starter incorporates a Class 10 ambient compensated thermal overcurrent protection feature, adjustable within the range of 48 to 65 amperes. Its EVERLINK terminals ensure secure and reliable electrical connections.



Technical Specifications



Specifications





Part #

GV3P65

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

TeSys Deca

Product Name

TeSys GV3

Product type or equipment

Motor circuit breaker

Name of the device

GV3P

Application

Motor protection

Trigger type

Thermal-magnetic

Description of the poles

3P

Network type

THAT

Job category

AC-3 conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-4-1

Fixing method

35 mm symmetrical DIN rail: pinched<br>Panel: screwed (with 3 x M4 screws)

Order type

Rotating handle

[In] rated operational current

65A

Thermal protection adjustment zone

48…65 To comply with IEC 60947-4-1

Magnetic trigger current

910A

[Ith] conventional thermal current

65 To comply with IEC 60947-4-1

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Sensitivity to phase loss

Yes comply with IEC 60947-4-1

Sectioning ability

Yes comply with IEC 60947-1

Power dissipated per pole

8W

Mechanical endurance

50000 cycles

Electrical life

50000 cycles for AC-3 at 415 V In

Assigned service

Continuous conforming to IEC 60947-4-1

Tightening torque

5 Nm - on screw clamp terminals

Width

55mm

Height

132mm

Depth

136mm

Product weight

0.96kg

Color

Dark gray

IK shock resistance

IK09 covering

Degree of IP protection

IP20 conforming to IEC 60529

Climatic outfit

Comply with IACS E10

Ambient storage temperature

-40…80°C

Fire resistance

960 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

-20…60°C

Operating altitude

3000m





Information About GV3P65



The TeSys Deca Manual Starter and Protector, designated as GV3, integrates manual isolation, manual motor control, and thermal overcurrent protection into a single compact unit. Specifically designed for controlling motors with full load currents up to 65 amperes, this manual starter offers versatile functionality suited for various industrial applications. Featuring a three-pole configuration with horsepower ratings, it ensures robust and reliable motor control operations.

Equipped with a rotary knob, the manual starter allows for intuitive and efficient operation, enabling users to initiate and control motor functions with ease. The Class 10 ambient compensated thermal overcurrent protection ensures optimal safety by preventing overheating and potential damage to connected equipment. Additionally, the thermal overcurrent is adjustable within the range of 48 to 65 amperes, providing flexibility to accommodate different motor specifications and operating conditions.

The GV3 manual starter is engineered with EVERLINK terminals, ensuring secure and reliable electrical connections. These terminals contribute to enhanced operational efficiency and minimize the risk of electrical faults or failures. Furthermore, the device conforms to multiple standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX certifications, ensuring compliance with industry regulations and safety requirements.

Committed to environmental sustainability, the GV3 manual starter is Green Premium compliant, adhering to RoHS (Restriction of Hazardous Substances) and REACh (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives. This compliance underscores its eco-friendly design and contribution to environmental conservation efforts.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
