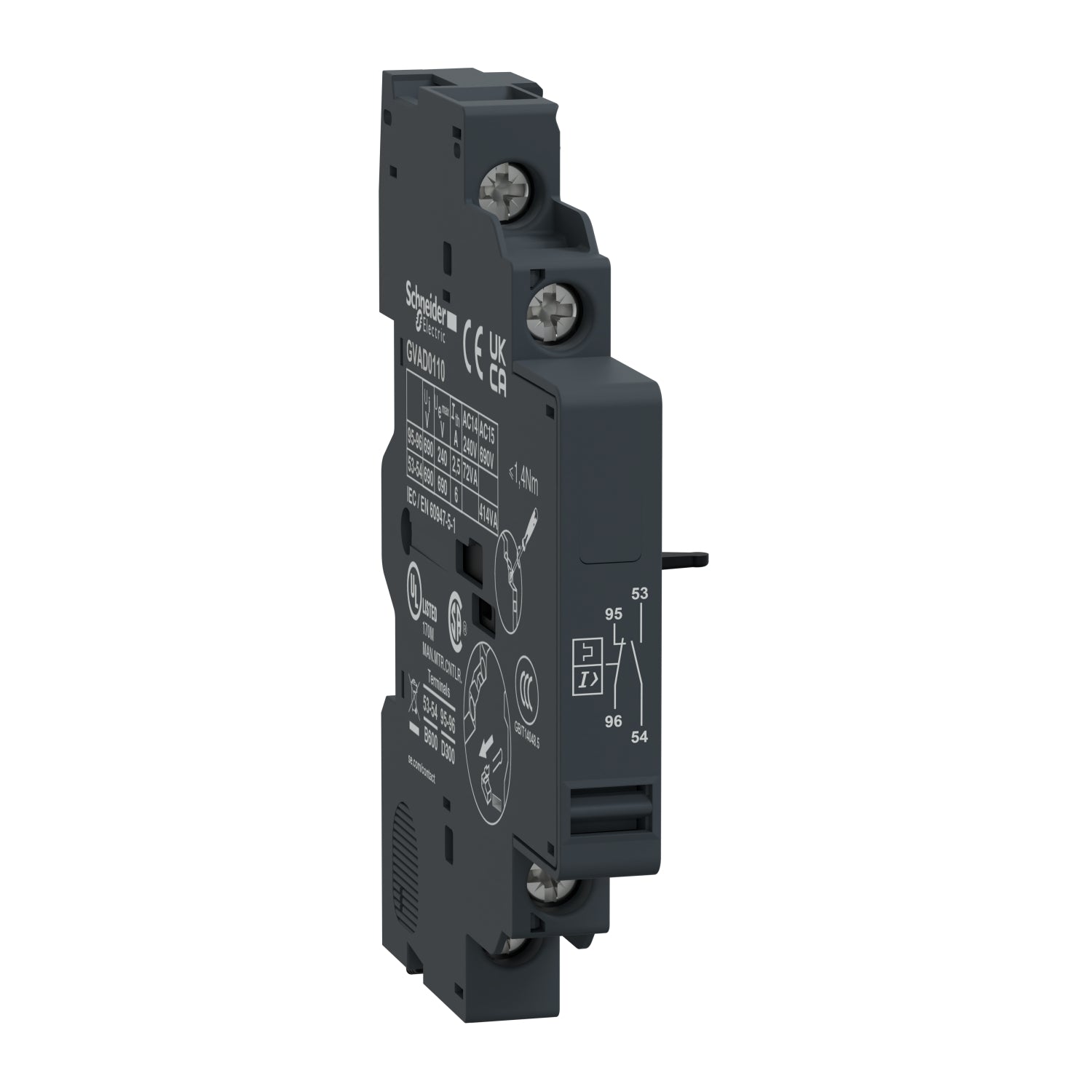

GVAD0110 | Schneider Electric TeSys Deca Auxiliary Contact, 1 NO + 1 NC
- Regular price
- $72.00
- Sale price
- $72.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GVAD0110
Description
The Schneider Electric GVAD0110 is an auxiliary contact module designed for TeSys Deca motor circuit breakers. It provides one normally open (NO) contact and one normally closed (NC) fault contact for clear operational and fault status signaling. Side-mounted integration and screw-clamp terminals ensure secure installation within motor protection assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | GVAD0110 |
| Subcategory | Auxiliary Contact |
| Number of Contacts | 2 |
| Normal State Configuration | 1 NO + 1 NC (fault) |
| Mounting Style | Side Mount |
| Series | GVAD (TeSys Deca) |
| Terminal Type | Screw |
| Pole and Throw Configuration | DP |
| Contact Voltage Rating | 240 V DC, 690 V AC |
| Current Rating | 6 A (aux contact) |
| Fault Contact Ratings | 2 A at 240 V AC, 1 A at 60 V DC |
| Number of Poles | 2 |
| Installation Location | Left side of GV2/GV3 breakers |
| Compliance | IEC, UL, CSA, CCC, EAC; RoHS/REACh (Green Premium) |
| IP Rating | IP20 |
Information About GVAD0110
The GVAD0110 is part of the TeSys Deca GVAD family, built to expand signaling capabilities on GV2 and GV3 motor circuit breakers. Its construction includes a left-side mounting design and robust screw terminals to ensure stable electrical connections in industrial environments. This module supports both operational indication through its NO auxiliary contact and fault condition monitoring via its NC fault contact. It is commonly used in motor control panels to enhance protection diagnostics and improve system awareness during overload or trip events.
Key Features:
- Dual-contact design: Includes 1 NO auxiliary contact and 1 NC fault contact for comprehensive signaling.
- TeSys Deca compatibility: Designed for GV2 and GV3 motor circuit breaker integration.
- High voltage ratings: Supports up to 690 V AC and 240 V DC for versatile application use.
- Side-mount installation: Fits on the left side of the breaker with secure attachment.
- Durable screw terminals: Ensures firm wiring connections in industrial environments.
- Double-pole configuration: Enables signaling of operational and fault states independently.
- Certified component: Meets IEC, UL, CSA, CCC, and EAC standards for global compliance.
- Non-illuminated design: Simple, robust construction for reliable status indication.
The GVAD0110 delivers the reliability and precision required for motor protection signaling and status monitoring applications.
